Name: LAPP 2170323/1000 Bus cable UNITRONIC® BUS 1 x 2 x 0.32 mm² + 1 x 2 x 0.32 mm² Violet-black 1000 m
Brand: LAPP
SKU: 1044206

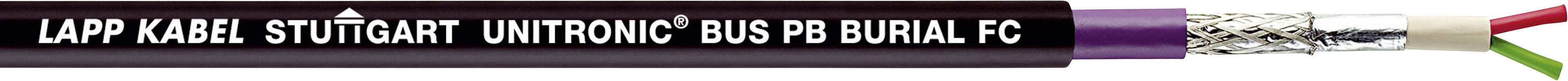

'VIOLET KABEL LAPP KABEL STUTTGART UNITRONIC BUS PB BURIAL 0°C', wrapped in aluminium foil, is terminated as a cable.

Image similar

Product type

Bus cable

Cable type

UNITRONIC® BUS

No. of leads

2 x

Cross section (each core)

0.32 mm²

No. of leads (part 2)

2 x

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

UNITRONIC ® BUS PB BURIAL FC

Technical specifications

Product type: Bus cable

Cable type: UNITRONIC® BUS

No. of leads: 2 x

Cross section (each core): 0.32 mm²

No. of leads (part 2): 2 x

Cross section (each core) (part 2): 0.32 mm²

Cross section: 1 x 2 x 0.32 mm² + 1 x 2 x 0.32 mm²

Cable features: Shielded
Common shield
UV-resistant
for underground installation

Outside Ø: 10.8

Factory colour: Violet-black

Content: 1000 m

Nominal voltage: 100 V

Test voltage: 3600 V/DC (3 sec)

AWG max.: 22

Bend radius (no. of ODs for fixed installation): 7

Bend radius (no. of ODs for flexible installation): 7.5

Packaged: Yes

Sold per metre: No

Halogen-free: No

Shielded: Yes

Manufacturer part #: 2170323/1000

Insulation material: PVC

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +60 °C

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): +60 °C

Operating capacity: (800 Hz): max. 30 nF/km

Wave impedance: 150 Ω

Type: UNITRONIC BUS PB BURIAL FC 1X2X0,64

Max. length sold by the metre: 1000 m

Twisted pair cabling (part 1): Yes (1)

Twisted pair cabling (yes/no): Yes (1)

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1044206 LAPP 2170323/1000 Bus cable UNITRONIC® BUS 1 x 2 x 0.32 mm² + 1 x 2 x 0.32 mm² Violet-black 1000 m

User & Safety Instructions

User & Safety Instructions 1044206 LAPP 2170323/1000 Bus cable UNITRONIC® BUS 1 x 2 x 0.32 mm² + 1 x 2 x 0.32 mm² Violet-black 1000 m

Description

Fastconnect (FC) cable setup. Robust, UV- and weather-resistant. Cables can be used both for PROFIBUS-DP, PROFIBUS-FMS and FIP.

This text is machine translated.

Description

Fastconnect (FC) cable setup. Robust, UV- and weather-resistant. Cables can be used both for PROFIBUS-DP, PROFIBUS-FMS and FIP.
