Name: LAPP 2170334/100 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² + 1 mm² Blue 100 m
Brand: LAPP
SKU: 1044628

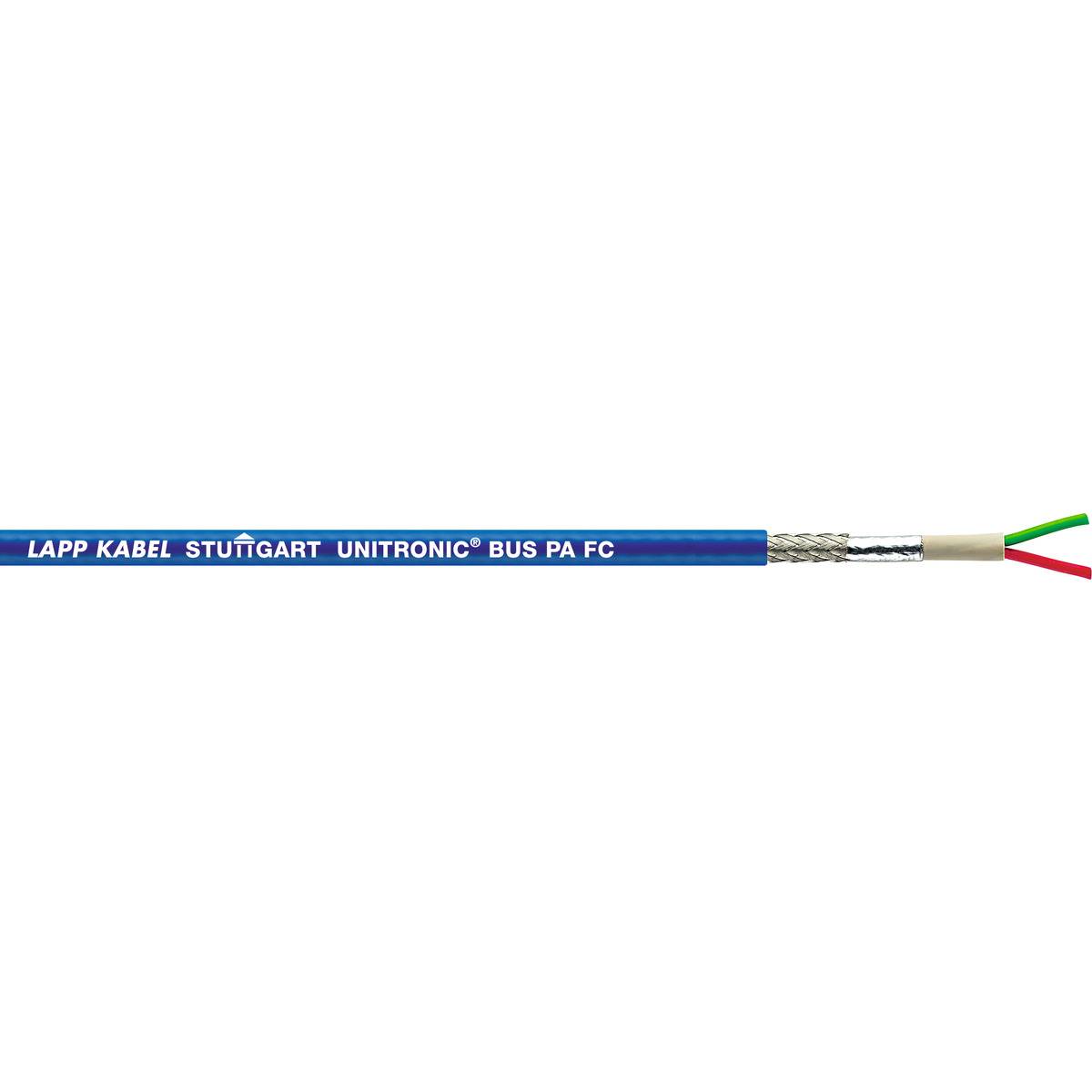

Blue cable with the inscription 'Lapp Kabel Stuttgart UNITRONIC BUS PA FC' and three coloured wires: red, green, transparent.

Image similar

Product type

Bus cable

Cable type

UNITRONIC® BUS

No. of leads

2 x

Cross section (each core)

1 mm²

Cross section (each core) (part 2)

1 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

UNITRONIC ® BUS PA

Technical specifications

Product type: Bus cable

Cable type: UNITRONIC® BUS

No. of leads: 2 x

Cross section (each core): 1 mm²

Cross section (each core) (part 2): 1 mm²

Cross section: 1 x 2 x 1 mm² + 1 mm²

Cable features: Flame-retardant
Oil-resistant
UV-resistant

Outside Ø: 8 mm

Type: "Fast Connect" cable setup-UL/CSA CMG approval

Factory colour: Blue

Content: 100 m

Test voltage: Wire/wire: 1500 V

Bend radius (no. of ODs for fixed installation): 10

Packaged: Yes

Sold per metre: No

Halogen-free: No

Shielded: No

Manufacturer part #: 2170334/100

Insulation material: PVC

Min. temperature range (fixed installation): -30 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (flexible installation): -5 °C

Max. temperature range (flexible installation): +50 °C

Core layout: Copper conductor, solid, bare

Core resistance: (Loop): Max. 44 Ω/km

Core layout: 1 mm

Wave impedance: 100 ± 20 Ω

Type: UNITRONIC BUS PA FC (BU) 1X2X1

Max. length sold by the metre: 100 m

Twisted pair cabling (part 1): Yes (1)

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Content

Cross section (each core) (part 2)

Factory colour

Sold per metre

LAPP 2170334/100 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² + 1 mm² Blue 100 m

Item no:1044628

Unavailable

Conrad Electronic

This article

100 m

1 mm²

Blue

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170234/1 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² + 2 x 1 mm² Blue Sold per metre

Item no:609353

Fast track dispatch on Mon 2 Nov

149 meterConrad Electronic

Sold per metre

1 mm²

Blue

Yes

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.79^*

LAPP 2170234/100 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² + 2 x 1 mm² Blue 100 m

Item no:1044621

Unavailable

Conrad Electronic

100 m

1 mm²

Blue

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170234/1000 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² + 2 x 1 mm² Blue 1000 m

Item no:1044622

Unavailable

Conrad Electronic

1000 m

1 mm²

Blue

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170234/300 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² Blue 300 m

Item no:1044623

Unavailable

Conrad Electronic

300 m

Blue

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170235/100 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² + 1 x 2 x 1 mm² Black 100 m

Item no:1044618

Unavailable

Conrad Electronic

100 m

1 mm²

Black

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170235/1000 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² + 1 mm² Black 1000 m

Item no:1044619

Unavailable

Conrad Electronic

1000 m

1 mm²

Black

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170235/300 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² Black 300 m

Item no:1044620

Unavailable

Conrad Electronic

300 m

Black

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170334/1000 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² + 1 x 2 x 1 mm² Blue 1000 m

Item no:1044629

Unavailable

Conrad Electronic

1000 m

1 mm²

Blue

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170334/300 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² Blue 300 m

Item no:1044630

Unavailable

Conrad Electronic

300 m

Blue

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 1044628 LAPP 2170334/100 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² + 1 mm² Blue 100 m

User & Safety Instructions

User & Safety Instructions 1044628 LAPP 2170334/100 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² + 1 mm² Blue 100 m

Description

Application Process Automation for connecting sensors and actuators - also in the explosion endangered area. Bit rate = 31.25 kbit/s. Transmission technology RS485 also possible, but limit of 1.5 Mbit/s.

This text is machine translated.
