Name: LAPP 2170345/500 Bus cable UNITRONIC® BUS 1 x 2 x 0.25 mm² + 2 x 0.5 mm² Violet 500 m
Brand: LAPP
SKU: 1044547

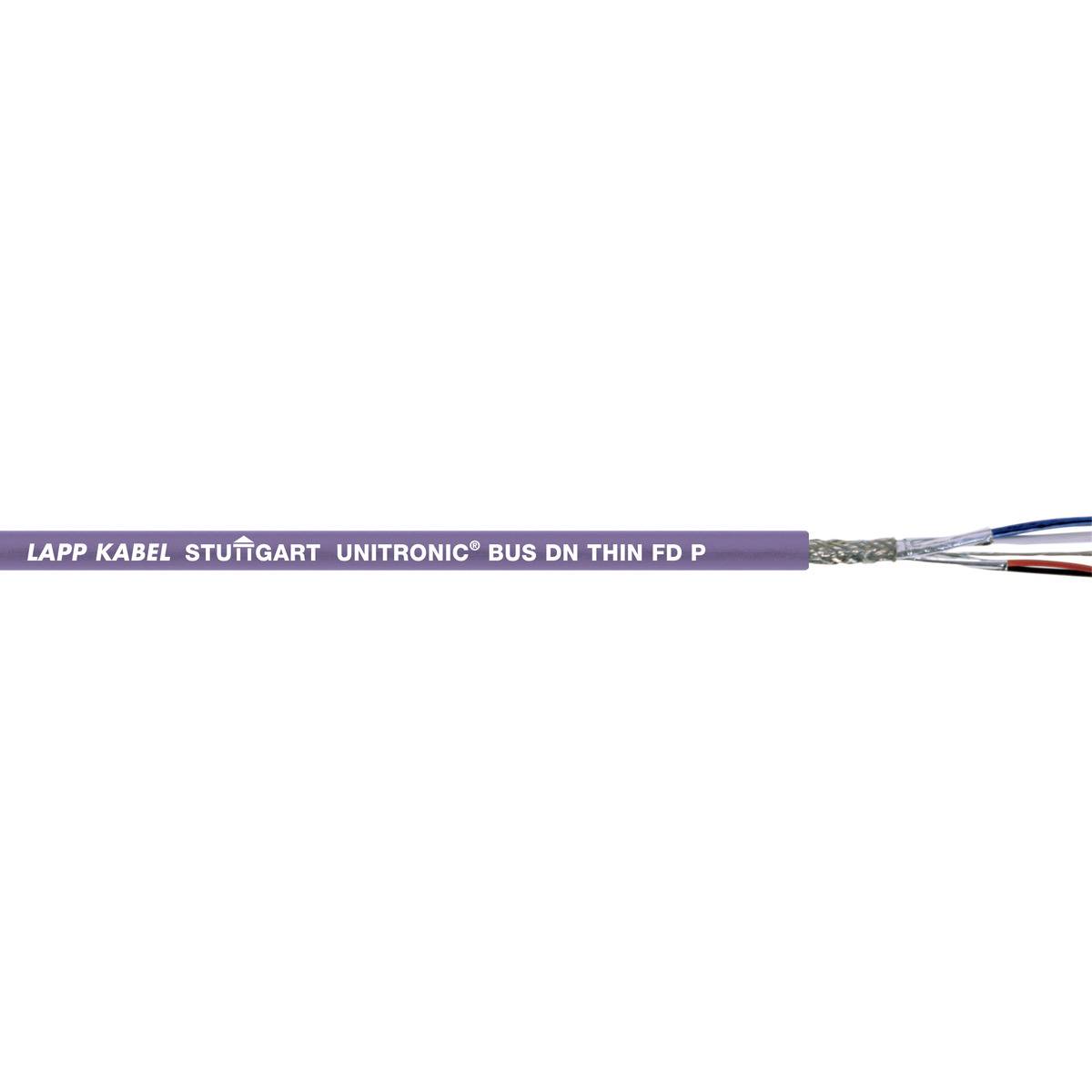

Purple label with the inscription 'LAPP KABEL STUTTGART UNITRONIC BUS DM THIN FD P'. Cable with exposed wires beside it.

Image similar

Product type

Bus cable

Cable type

UNITRONIC® BUS

No. of leads

2 x

Cross section (each core)

0.25 mm²

No. of leads (part 2)

2 x

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

UNITRONIC ® DeviceNet FD THICK + THIN

Technical specifications

Product type: Bus cable

Cable type: UNITRONIC® BUS

No. of leads: 2 x

Cross section (each core): 0.25 mm²

No. of leads (part 2): 2 x

Cross section (each core) (part 2): 0.5 mm²

Cross section: 1 x 2 x 0.25 mm² + 2 x 0.5 mm²

Cable features: Halogen-free
UV-resistant
highly flexible
PUR coating

Outside Ø: 6.9 mm

Factory colour: Violet

Content: 500 m

Nominal voltage: 300 V

Test voltage: Wire/Wire: 2000 V

AWG max.: 24

Bend radius (no. of ODs for fixed installation): 7

Bend radius (no. of ODs for flexible installation): 15

Packaged: Yes

Sold per metre: No

Halogen-free: Yes

Shielded: No

Manufacturer part #: 2170345/500

Insulation material: Polyurethane

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): +80 °C

Core resistance: (Loop): Max. 180 Ω/km

Operating capacity: (800 Hz): max. 39,8 nF/km

Wave impedance: 120 Ω

Type: UNITRONIC BUS DN THIN FD P

Twisted pair cabling (part 1): Yes (1)

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

AWG max.

Content

Cross section (each core) (part 2)

Cross section (each core)

LAPP 2170345/500 Bus cable UNITRONIC® BUS 1 x 2 x 0.25 mm² + 2 x 0.5 mm² Violet 500 m

Item no:1044547

Unavailable

Conrad Electronic

This article

500 m

0.5 mm²

0.25 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170344/152 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² + 2 x 2 mm² Violet 152 m

Item no:1044538

Unavailable

Conrad Electronic

152 m

2 mm²

1 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170344/305 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² + 2 x 2 mm² Violet 305 m

Item no:1044539

Unavailable

Conrad Electronic

305 m

2 mm²

1 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170345/100 Bus cable UNITRONIC® BUS 1 x 2 x 0.25 mm² + 2 x 0.5 mm² Violet 100 m

Item no:1044546

Unavailable

Conrad Electronic

100 m

0.5 mm²

0.25 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170346/152 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² + 2 x 2 mm² Violet 152 m

Item no:1044540

Unavailable

Conrad Electronic

152 m

2 mm²

1 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170346/305 Bus cable UNITRONIC® BUS 1 x 2 x 1 mm² + 2 x 2 mm² Violet 305 m

Item no:1044541

Unavailable

Conrad Electronic

305 m

2 mm²

1 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170347/100 Bus cable UNITRONIC® BUS 1 x 2 x 0.25 mm² + 2 x 0.5 mm² Violet 100 m

Item no:1044548

Unavailable

Conrad Electronic

100 m

0.5 mm²

0.25 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170347/1000 Bus cable UNITRONIC® BUS 1 x 2 x 0.25 mm² + 2 x 0.5 mm² Violet 1000 m

Item no:1044549

Unavailable

Conrad Electronic

1000 m

0.5 mm²

0.25 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170347/305 Bus cable UNITRONIC® BUS 1 x 2 x 0.25 mm² + 2 x 0.5 mm² Violet 305 m

Item no:1044550

Unavailable

Conrad Electronic

305 m

0.5 mm²

0.25 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1

LAPP 2170347/500 Bus cable UNITRONIC® BUS 1 x 2 x 0.25 mm² + 2 x 0.5 mm² Violet 500 m

Item no:1044551

Unavailable

Conrad Electronic

500 m

0.5 mm²

0.25 mm²

Piece(s)

Minimum order quantity: 1

Multiple: 1
