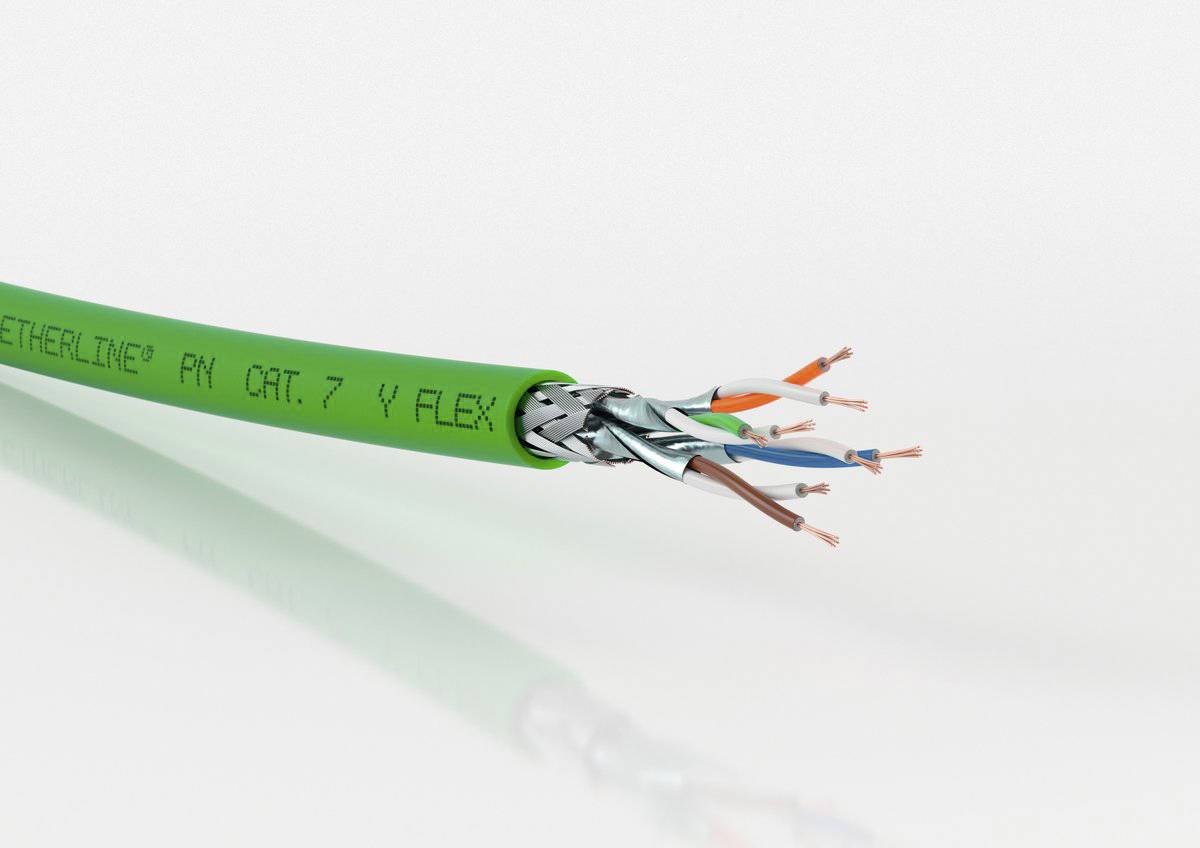

LAPP 2170609/1000 Network cable ETHERLINE® PN 4 x 2 x 0.26 mm² Green 1000 m
Product type
Network cable
No. of leads
8 x
Cross section (each core)
0.26 mm²
Cable features
Flexible
Cable type
ETHERLINE® PN
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Network cable
- Cable type
ETHERLINE® PN
- No. of leads
8 x
- Cross section (each core)
0.26 mm²
- Twisted pair cabling (part 1)
Yes (1)
- Cross section
4 x 2 x 0.26 mm²
- Cable features
Flexible
- Outside Ø
8 mm
- Factory colour
Green
- Content
1000 m
- Bend radius (no. of ODs for fixed installation)
4.14
- Bend radius (no. of ODs for flexible installation)
8.28
- Sold per metre
Yes
- Halogen-free
Yes / No
- Shielded
Yes
- Manufacturer part #
2170609/1000
- Min. temperature range (fixed installation)
-30 °C
- Max. temperature range (fixed installation)
80 °C
- Max. length sold by the metre
1000 m
- Type
ETHERLINE® PN CAT.7 FRNC FLEX A
FALSE
0.26 mm²
Other
Colour
Green
Copper
Other
-30-80 °C
8
FALSE
FALSE
8.7 mm
FALSE
TRUE
Bare
Other
72.0 mm
36.0 mm
Other
Other
Round
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3350900 LAPP 2170609/1000 Network cable ETHERLINE® PN 4 x 2 x 0.26 mm² Green 1000 m
User & Safety Instructions
User & Safety Instructions 3350900 LAPP 2170609/1000 Network cable ETHERLINE® PN 4 x 2 x 0.26 mm² Green 1000 m
Description
ETHERLINE® PN CAT.7 FRNC Flex A ETHERNET cable; flexible; ETHERNET/IP, PROFINET; PROFINET® application: Type B; CAT.7; S/FTP; LSZH; halogen-free; green
This text is machine translated.
This text is machine translated.
