Name: LAPP 2170609/500 Network cable ETHERLINE® PN 4 x 2 x 0.26 mm² Green 500 m
Brand: LAPP
SKU: 3350898

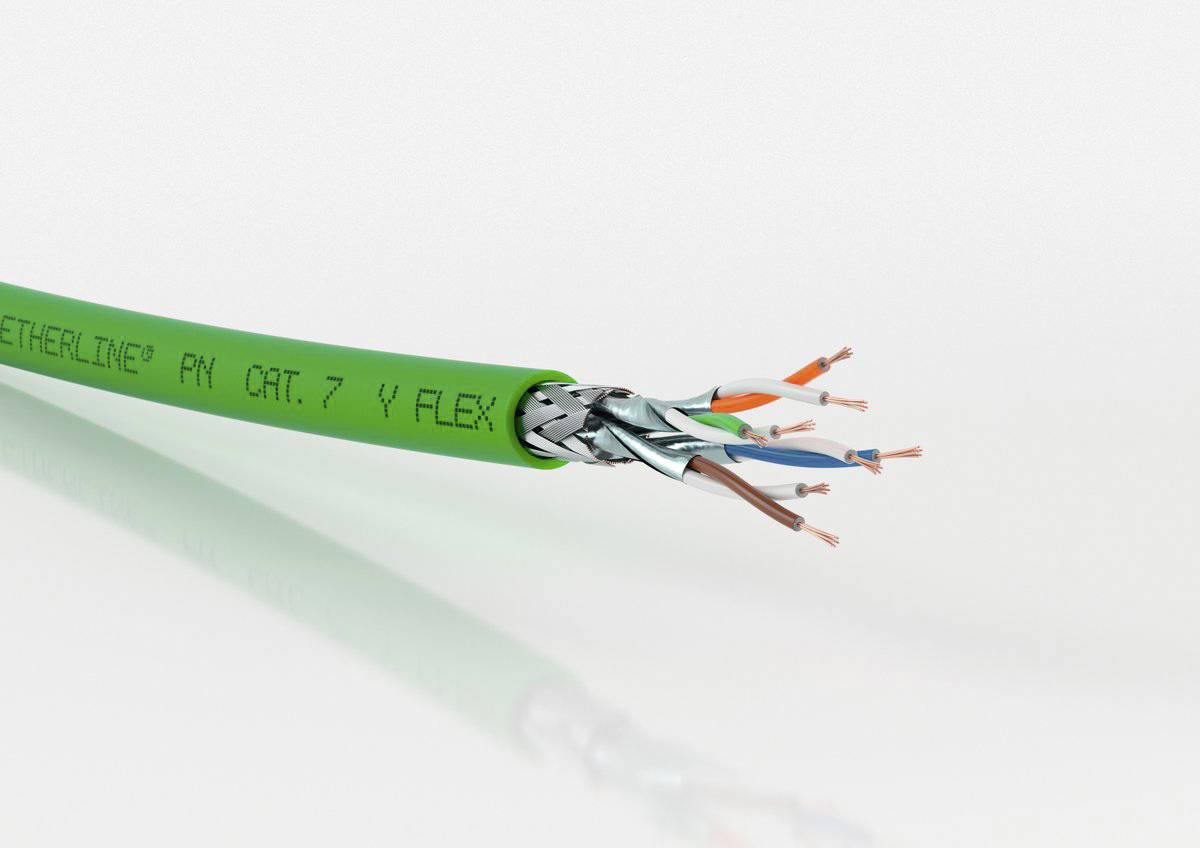

An open green network cable shows several coloured wires used for connection in data transmission technology.

Diagram of a cable cross-section with four internal cables, each comprising multiple wire strands. The casing is outlined in green.

1/2

Image similar

Product type

Network cable

No. of leads

8 x

Cross section (each core)

0.26 mm²

Cable features

Flexible

Cable type

ETHERLINE® PN

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Network cable

Cable type: ETHERLINE® PN

No. of leads: 8 x

Cross section (each core): 0.26 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 4 x 2 x 0.26 mm²

Twisted pair cabling (yes/no): Yes (1)

Cable features: Flexible

Outside Ø: 8 mm

Factory colour: Green

Content: 500 m

Bend radius (no. of ODs for fixed installation): 4.14

Bend radius (no. of ODs for flexible installation): 8.28

Sold per metre: Yes

Halogen-free: Yes / No

Shielded: Yes

Manufacturer part #: 2170609/500

Min. temperature range (fixed installation): -30 °C

Max. temperature range (fixed installation): 80 °C

Max. length sold by the metre: 500 m

Type: ETHERLINE® PN CAT.7 FRNC FLEX A

: FALSE

: 0.26 mm²

: Other

: Colour

: Green

: Copper

: Other

: -30-80 °C

: 8

: FALSE

: FALSE

: 8.7 mm

: FALSE

: TRUE

: Bare

: Other

: 72.0 mm

: 36.0 mm

: Other

: Other

: Round

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3350898 LAPP 2170609/500 Network cable ETHERLINE® PN 4 x 2 x 0.26 mm² Green 500 m

User & Safety Instructions

User & Safety Instructions 3350898 LAPP 2170609/500 Network cable ETHERLINE® PN 4 x 2 x 0.26 mm² Green 500 m

Description

ETHERLINE® PN CAT.7 FRNC Flex A ETHERNET cable; flexible; ETHERNET/IP, PROFINET; PROFINET® application: Type B; CAT.7; S/FTP; LSZH; halogen-free; green

This text is machine translated.

Description

ETHERLINE® PN CAT.7 FRNC Flex A ETHERNET cable; flexible; ETHERNET/IP, PROFINET; PROFINET® application: Type B; CAT.7; S/FTP; LSZH; halogen-free; green

This text is machine translated.
