Name: LAPP 33000/500 Data transfer cable UNITRONIC® ST 2 x 0.52 mm² Grey 500 m
Brand: LAPP
SKU: 1046758

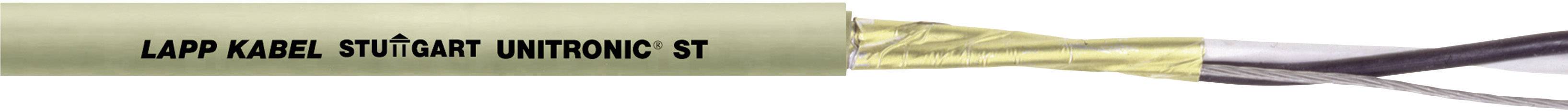

Three-pole cable with labelling 'LAPP KABEL STUTTGART UNITRONIC ST', one with yellow insulation, others with black and grey.

Image similar

Product type

Data transfer cable

No. of leads

2 x

Cross section (each core)

0.52 mm²

Cable features

Shielded

Flame-retardant

Cable type

UNITRONIC® ST

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

UNITRONIC ® ST

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® ST

No. of leads: 2 x

Cross section (each core): 0.52 mm²

Cross section: 2 x 0.52 mm²

Cable features: Shielded
Flame-retardant

Outside Ø: 5.20 mm

Factory colour: Grey

Content: 500 m

Nominal voltage (details): 50 V

Test voltage: 1500 V

AWG max.: 20

Bend radius (no. of ODs for fixed installation): 6

Bend radius (no. of ODs for flexible installation): 10

Packaged: Yes

Sold per metre: No

Halogen-free: No

Shielded: Yes

Manufacturer part #: 33000/500

Insulation material: PVC

Insulation: PVC

Core layout: Multi-wired

Min. temperature range (flexible installation): -5 °C

Max. temperature range (flexible installation): +70 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +80 °C

Type: UNITRONIC ST 2X20/7AWG

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1046758 LAPP 33000/500 Data transfer cable UNITRONIC® ST 2 x 0.52 mm² Grey 500 m

User & Safety Instructions

User & Safety Instructions 1046758 LAPP 33000/500 Data transfer cable UNITRONIC® ST 2 x 0.52 mm² Grey 500 m

Description

UNITRONIC ® ST-PVC-data cable with PE insulated wires and a static shield, in accordance with AWM2064 for measurement, control and regulation systems. They are very well suited for the transfer of the smallest measurement and control signals with minimum space requirement. Internal wiring of electronic devices. For fixed and flexible routing. For use in dry, damp and wet rooms.
