LAPP 4600026/1000 Strand ÖLFLEX® STATIC CY 1 x 50 mm² Black 1000 m
Product type
Strand
No. of leads
1 x
Cross section (each core)
50 mm²
Cable type
ÖLFLEX® STATIC CY
Outside Ø
16.90 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ölflex ® STATIC CY BLACK
Technical specifications
- Product type
Strand
- No. of leads
1 x
- Content
1000 m
- Cross section (each core)
50 mm²
- Insulation material
PVC
- Cable features
Flame-retardant
Shielded
Oil-resistant
Flexible
- Cable type
ÖLFLEX® STATIC CY
- Outside Ø
16.90 mm
- Nominal voltage
1000 V
- Packaged
Yes
- Halogen-free
No
- Manufacturer part #
4600026/1000
- Factory colour
Black
- Insulation
PVC base
- Core layout
Cu, bare copper, fine strands
- Material (details)
PVC
- Sold per metre
No
- Nominal voltage U0
600 V
- Test voltage
Wire/shield: 2000 V
- Cross section
1 x 50 mm²
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (flexible installation)
-30 °C
- Max. temperature range (fixed installation)
+80 °C
- Min. temperature range (fixed installation)
-40 °C
- Type
ÖLFLEX STATIC CY BLACK 1X50
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1040020 LAPP 4600026/1000 Strand ÖLFLEX® STATIC CY 1 x 50 mm² Black 1000 m
User & Safety Instructions
User & Safety Instructions 1040020 LAPP 4600026/1000 Strand ÖLFLEX® STATIC CY 1 x 50 mm² Black 1000 m
Description

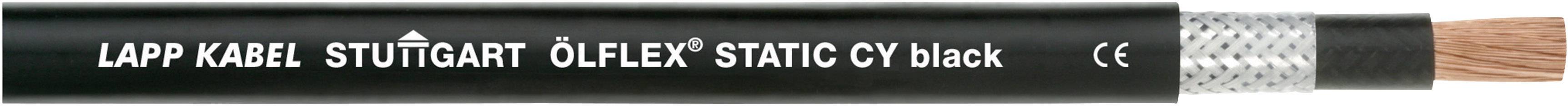

Ölflex ® STATIC CY BLACK-shielded, double insulated single core with 0.6/1kV for versatile applications in EMC-critical surroundings. Especially in power circuits as an external connection line or for internal wiring of electrical or electronic equipment. In dry and damp rooms at lower mechanical load. Can be used in the photovoltaic area, for example, as a connection cable to the inverter in the interior. Outdoors, under the observation of the given temperature range.
This text is machine translated.
This text is machine translated.
