Name: LAPP Control lead 4 x 1 mm² 1026718/500 500 m
Brand: LAPP
SKU: 3362614

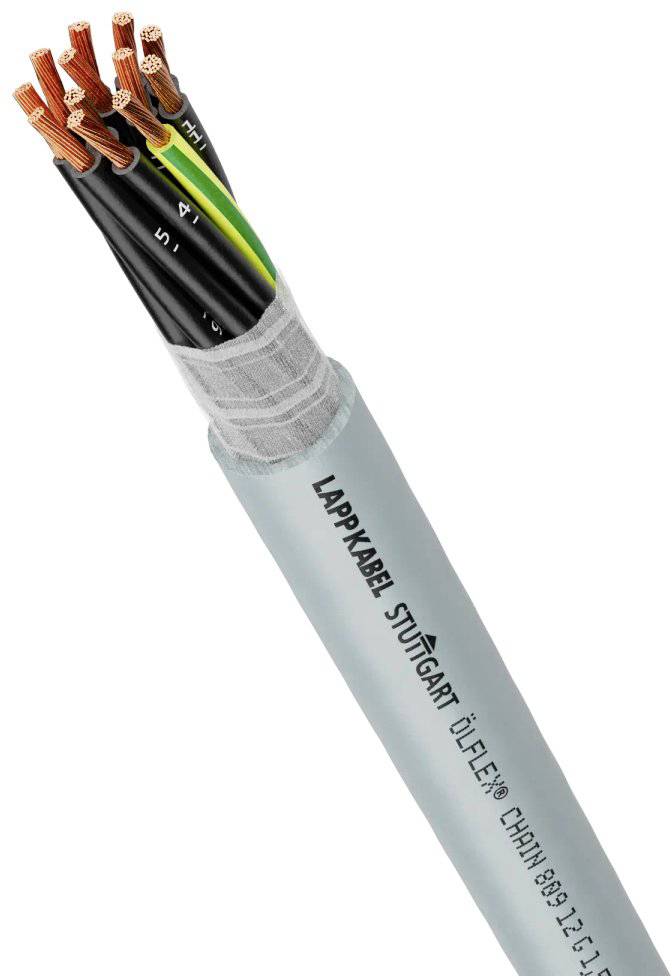

A grey, cylindrical cable with multiple copper cores and insulation from the 'ÖLFLEX' series by Lapp Cable, Stuttgart.

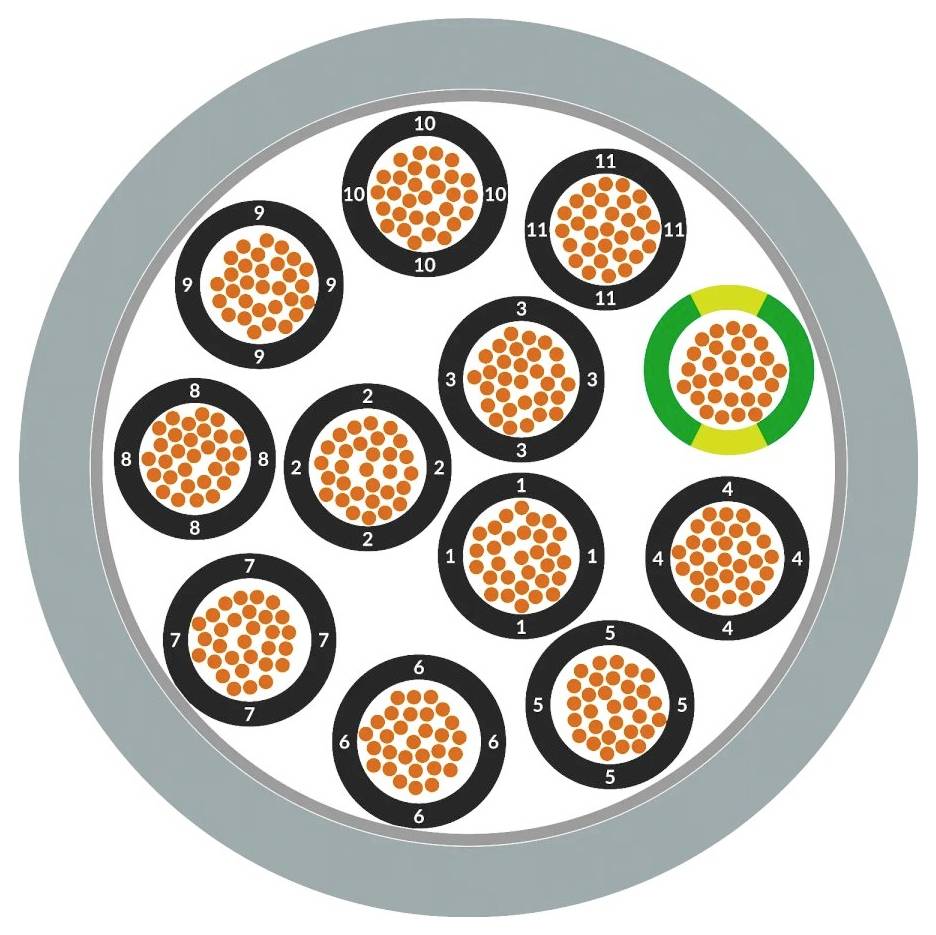

Cross-section of an electrical cable with twelve strands, one of which is green for earthing. Each strand consists of several copper-coloured wires.

1/2

Product type

Control lead

No. of leads

4 x

Cross section (each core)

1 mm²

Cross section

4 x 1 mm²

Outside Ø

6.9 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Control lead

No. of leads: 4 x

Cross section (each core): 1 mm²

Cross section: 4 x 1 mm²

Outside Ø: 6.9 mm

Content: 500 m

Nominal voltage: 500 V

Nominal voltage U0: 300 V

Manufacturer part #: 1026718/500

Type: ÖLFLEX® CHAIN 809 4G1,0

: 1 mm²

: Polyvinyl chloride (PVC)

: Numbers

: 500 V

: Grey

: Copper

: Polyvinyl chloride (PVC)

: Class 5 = flexible

: 300 V

: 4

: 6.9 mm

: TRUE

: FALSE

: Bare

: Other

: 69.0 mm

: 69.0 mm

: 27.6 mm

: Other

: Other

: Round

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3362614 LAPP Control lead 4 x 1 mm² 1026718/500 500 m

User & Safety Instructions

User & Safety Instructions 3362614 LAPP Control lead 4 x 1 mm² 1026718/500 500 m

Description

ÖLFLEX® CHAIN 809 4G1.0 Control cable; 4G1; Basic-Line; U0/U: 300/500 V; PVC; Wire identification: Numbers; UL recognized; Drag chain

This text is machine translated.

Description

ÖLFLEX® CHAIN 809 4G1.0 Control cable; 4G1; Basic-Line; U0/U: 300/500 V; PVC; Wire identification: Numbers; UL recognized; Drag chain

This text is machine translated.
