Laserliner SmartLine-Laser G360 Multi-line laser Self-levelling

A compact, black and white laser level with green accents, suitable for precise construction and measurement work, mounted on a stand.
Laser level mounted on a tripod. It projects green horizontal and vertical laser beams for precise alignment.

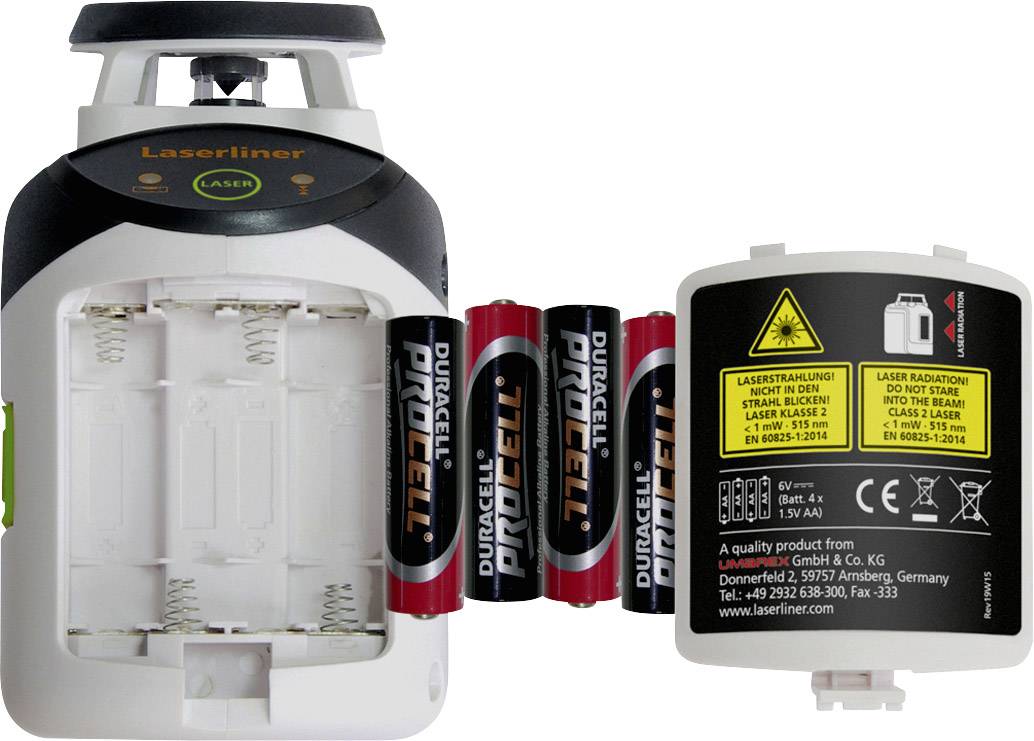

Compact laser level with open battery compartment, four Duracell batteries beside it. Yellow warning sign: 'Avoid laser radiation'.
Laserliner Cross-Line Laser with Mounting Bracket, Carry Case and Batteries. Ideal for precise alignment and levelling on construction projects.
Installation of ceiling profiles with tools; laser levelling shows fixing lines.
A vacuum cleaner in a classically furnished room demonstrates how cleaning routes can be covered from a central position.

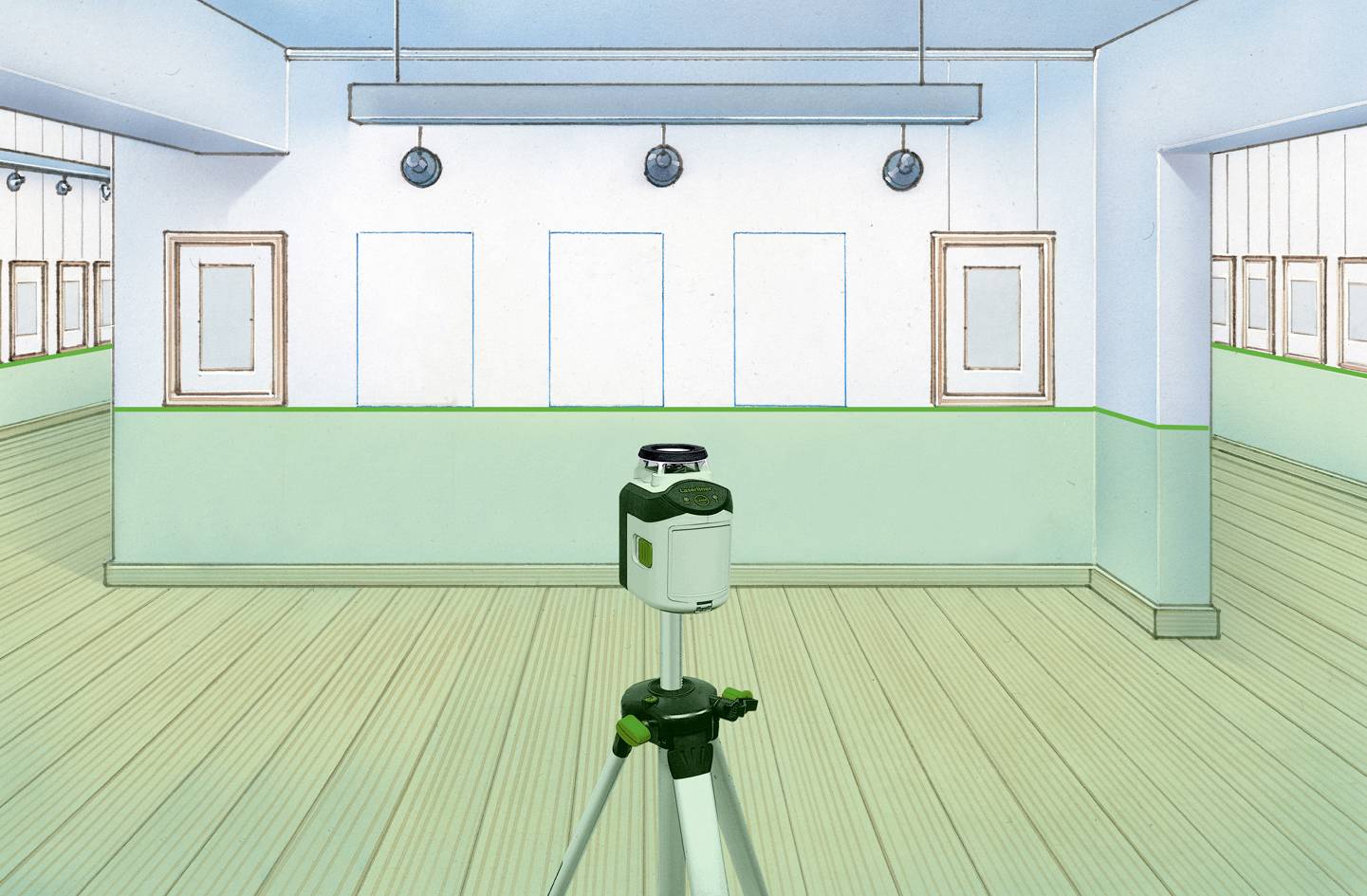

A surveying instrument on a tripod stands in a room with several frames on the wall. The room appears empty and well-lit.
Empty space with tiled flooring and green walls. A laser device on the wall projects a green line across the room.

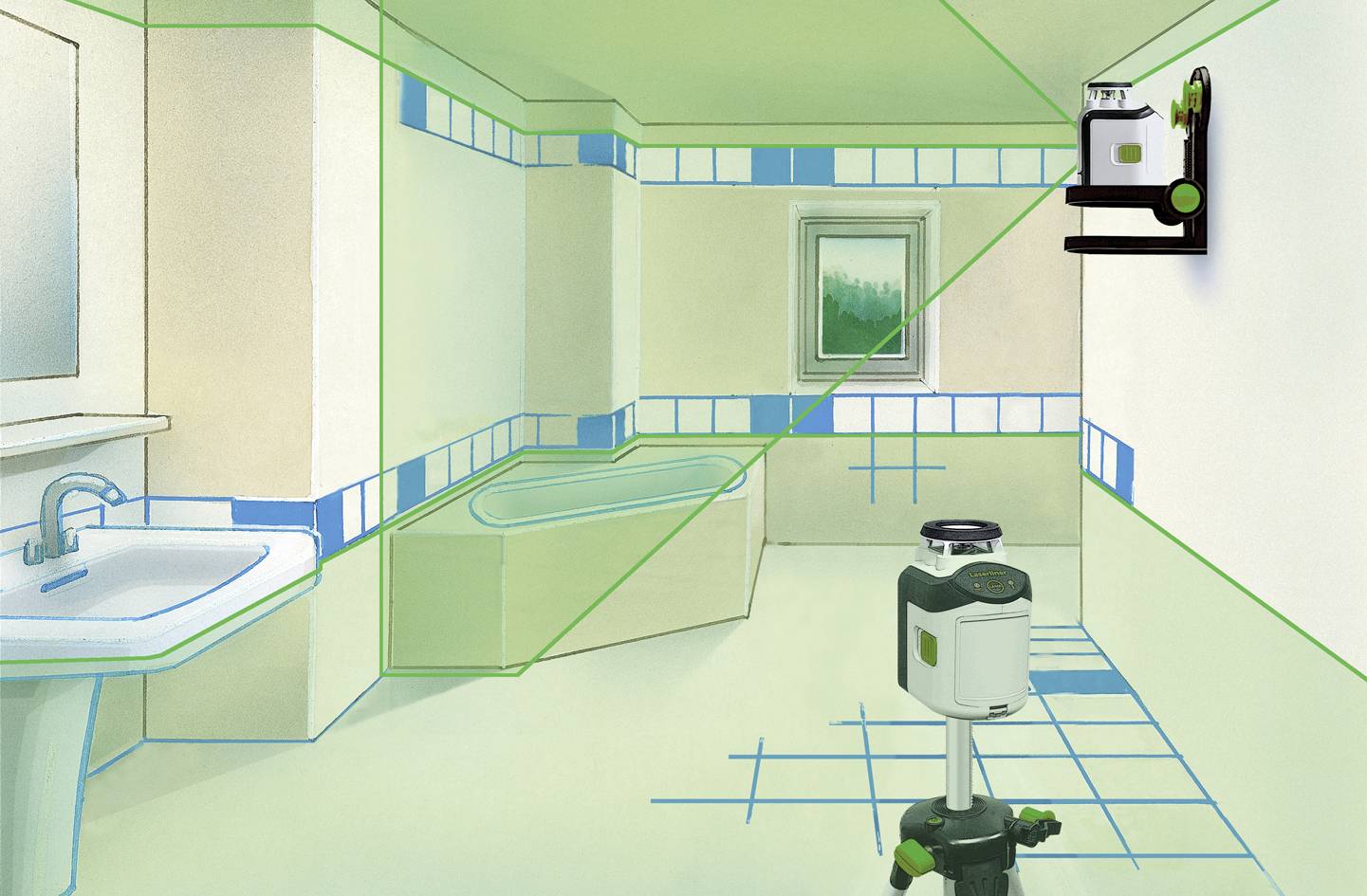

A bathroom with a washbasin, bathtub and window. A laser distance measurer displays green lines on the walls and floor.
A robotic vacuum cleaner is climbing a wall next to a wooden staircase. Two pictures are hanging on the wall.
1/10
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 179.99 / piece)
€ 179.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

360° line laser with vertical line and tilt function

  • A spirit level with the inscription 'Laserliner SmartLine-Laser G360'. A green laser beam indicates a horizontal line.
  • A laser spirit level is magnetically attached to a metal bracket, with arrows indicating alignment and mounting direction.
  • Upper part shows a laser measuring device, lower part illustrates compatible screw thread sizes: '1/4"' and '5/8"'.
  • A laser rangefinder with a long range up to 30 m and sunlight compatibility.

Technical specifications

  • Laser wavelength 515 mm
Product type

Multi-line laser

Features

Self-levelling

Accuracy (+/-)

0.4 mm/m

Auto-adjustment range (+/-)

5°

Laser category

2

Visible beam length

30 m

Operating time (battery-powered)

7 h

Power supply (details)

4x AA battery (included)

Tripod thread mount

1/4"

5/8"

Length

76 mm

Width

105 mm

Height

126 mm

Dim

(L x W x H) 76 x 105 x 126 mm

Weight

514 g

Manufacturer's standards (no certificate)

Type

SmartLine-Laser G360

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2266547 Laserliner SmartLine-Laser G360 Multi-line laser Self-levelling

User & Safety Instructions

User & Safety Instructions 2266547 Laserliner SmartLine-Laser G360 Multi-line laser Self-levelling

User & Safety Instructions 2266547 Laserliner SmartLine-Laser G360 Multi-line laser Self-levelling

Warranty Terms

Warranty Terms 2266547 Laserliner SmartLine-Laser G360 Multi-line laser Self-levelling

Description

The SmartLine Laser G360 generates a horizontal laser beam and a vertical laser line arranged at right angles to it. This combination enables the precise alignment of objects throughout the room. Due to the optimal visibility of the green laser lines and the integrated manual receiver mode, the measuring device is suitable for outdoor applications and long ranges.

This text is machine translated.

Features

  • Precise alignment through horizontal laser circle and vertical laser line
  • Good visibility through green laser technology
  • ideal for working close to the ceiling
  • Simple alignment of inclinations
  • Time-saving automatic alignment
  • Single switchable laser lines
  • Integrated manual receiver mode for outdoor applications and long ranges
  • The device warns
  • when leaving the leveling range manifold mounting options at a tripod, Wall and metallic surfaces
  • Pendulum lock for safe transport

Scope of delivery

  • Smartline Laser G360
  • Tripod/wall mount
  • Bag
  • Batteries
  • User manual.
