Legrand 351200 Door intercom accessories Two-wire Camera

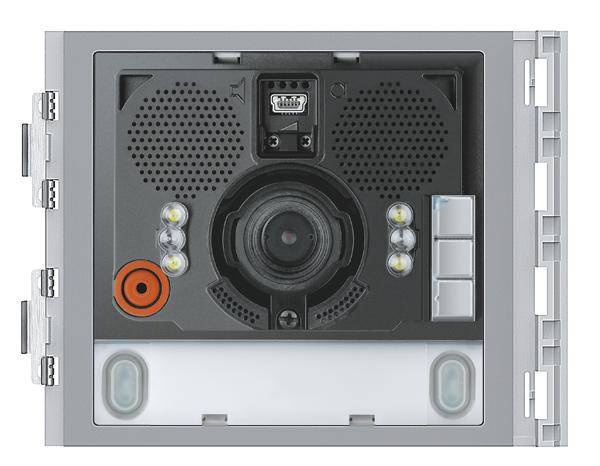

Video speaker module. Color camera with integrated loudspeaker module with 2 call buttons for the installation of audio/video systems in 2-wire technology. Color camera with 1/3" sensor (image range 77° horizontal/58° vertical) including LEDs for lighting the reception area and anti-fog heating (heating resistor). Two-axis alignment of the camera (horizontal and vertical) in the range +/- 10°. With setting the volume of the loudspeaker and microphone. For managing up to 98 call buttons via the code lock/keyboard module or with 2-row call button modules. Up to 49 call buttons are available with 1-row call button modules. The Tu?ropener (max. 30 Ohm internal resistance) is connected directly to the terminals S+ and S- (18V 4A surge current - 250mA holding current). An external door opener button (e.g. Postal lock). An additional power supply unit can be connected to terminals 1 and 2 (e.g. for large systems with several door stations). The device is equipped with several status LEDs that indicate the following operating states: Door open, communication active, call made and system busy. Integrated brightness sensor for automatic switching of the background lighting in darkness. Complete with the appropriate front panel. The device is configured either with configurators or via PC and software TiSferaDesign. Note: - When using the left call button on the speaker module or the 2-row call button modules, the jumper (J1) must be pulled out.

This text is machine translated.
