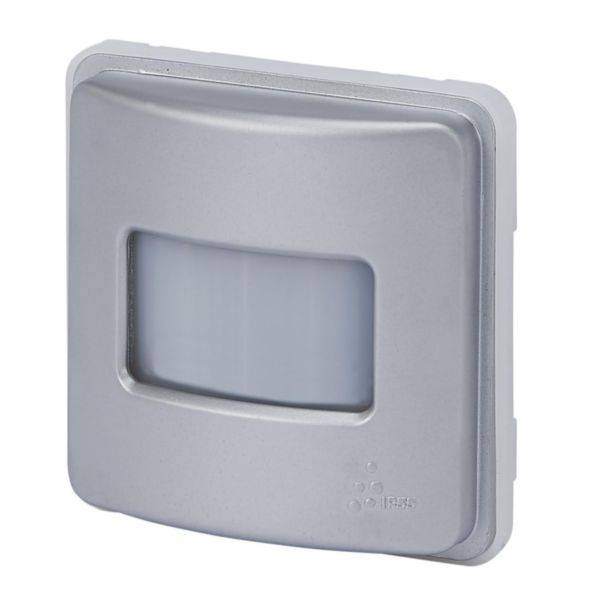

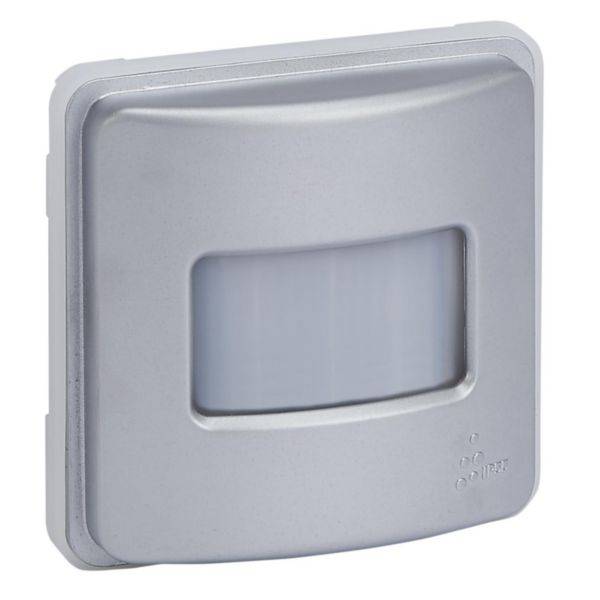

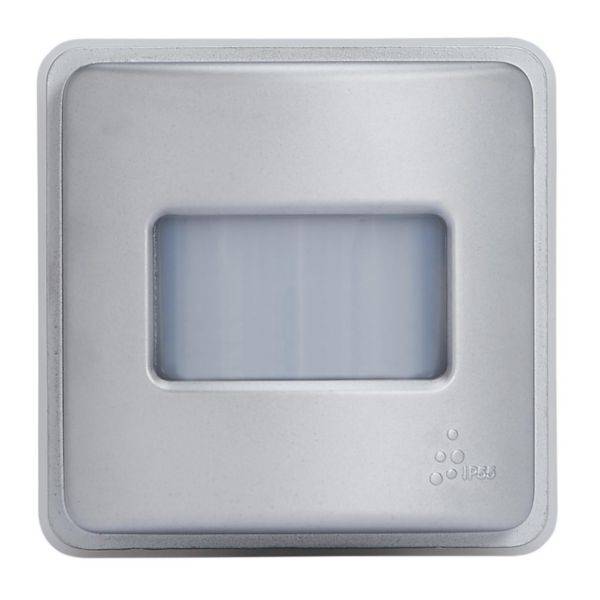

Legrand Motion detector Soliroc 077824A 1 pc(s)

Vandal-proof switch range SOLIROC 3-conductor motion detector with neutral conductor for automatic switching of consumers upon detection of persons within the detection range. Equipped with electronic overvoltage and short-circuit protection. Connection by means of screw terminals. Protection class IP55 Impact strength: IK10.recording range: 170°; suitable for extension; detection range: Gradually 2 – 8 m; switch-off delay: 5 sec. – 30 min.; brightness threshold: 5 – 1275 Lux; standby consumption: 0.01 WSuitable for the following loads: LEDs: 500W; compact fluorescent lamps: 500 W; incandescent and HV-halogen lamps: 2000 W; LEDs, compact fluorescent lamps with ferromagnetic or electronic ballast: 1000 VAVia the extension input, up to 10 detectors can be controlled by a button. Parallel connection of several motion detectors is possible (max. 10). With Master/slave installation, it is possible to control over a Master 10 slaves.

This text is machine translated.
