Name: LogiLink CQ9063S RJ45 Patch cable CAT 6A U/FTP 3.00 m Black Extra slim, Flame-retardant, Flexible, Metal foil shield, Ha
Brand: LogiLink
SKU: 2614815

A black Ethernet cable with an RJ45 connector at one end, slightly angled.

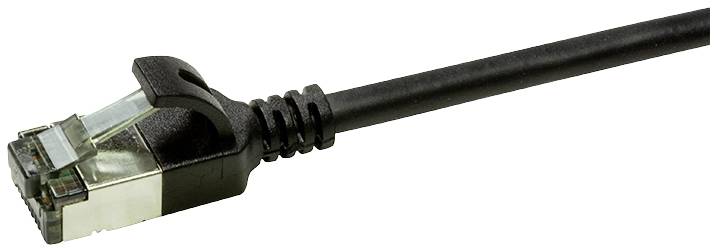

Black Ethernet cable with RJ45 connector. Used for network connections to transmit data in computer networks.

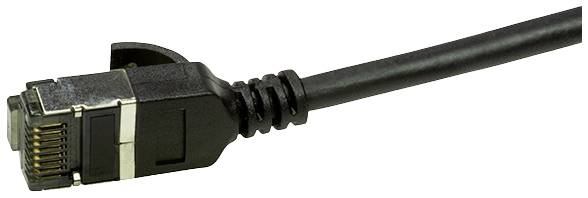

A black Ethernet cable with RJ45 connectors on a white background, showing details of the connector and cable structure.

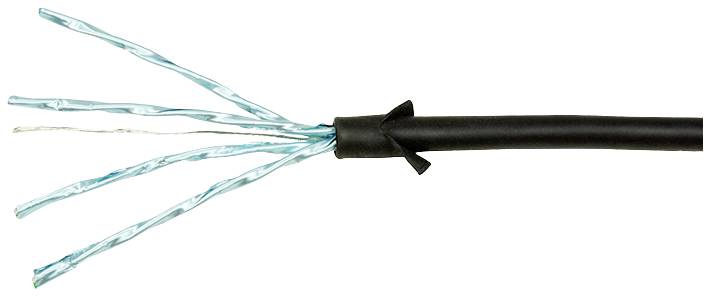

A cut network cable reveals four twisted wire pairs lying within a black cable sheath.

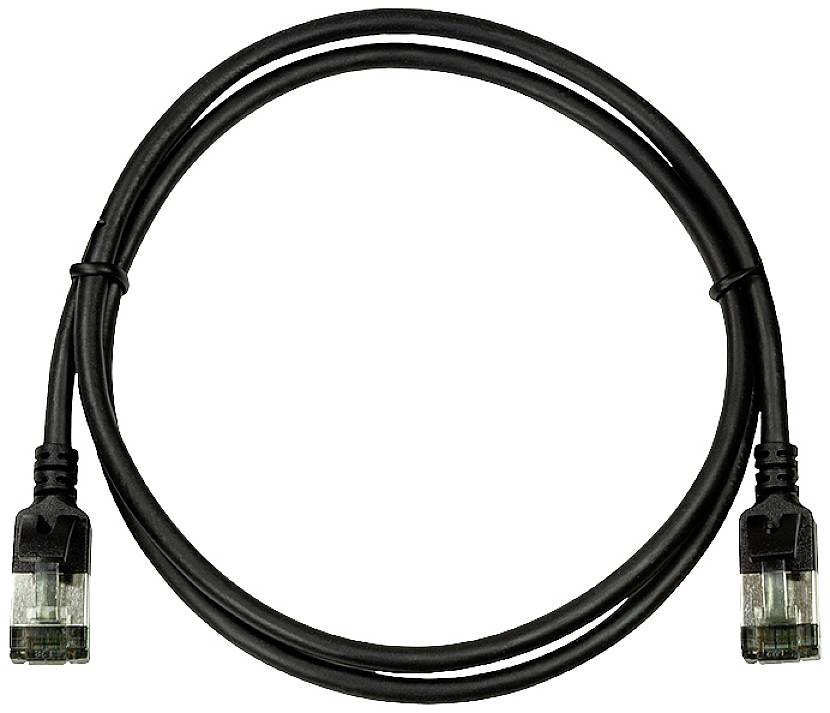

A black Ethernet cable with two RJ45 connectors, used for network connectivity.

1/5

Product type

Patch cable

Specification

CAT 6A

Shielding

U/FTP

Connection type

RJ45

Cable length

3.00 m

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Patch cable SlimLine, UltraFlex, Cat. 6A, U/FTP, black, 3 m

Cat.6A U/FTP 10G 500MHz Patch cableExtra thin, only 3.8 mm diameterVery soft and flexible TPE coating100% copper wires, 32/7 AWGShielded plug and cable (PiMF)Gold-plated contacts, nickel-plated hoodExtra short RJ45 plug with molded kink protectionHalogen-free and flame-resistantColor: Black, similar to RAL 9011
This text is machine translated.

Technical specifications

Product type: Patch cable

: CAT 6A

: U/FTP

Connection type: RJ45

No. of A connectors: 1 x

Type A: RJ45 plug

No. of B connections: 1 x

Type B: RJ45 plug

Cable length: 3.00 m

Factory colour: Black

Connector version: straight

Cable features: Extra slim
Flame-retardant
Flexible
Metal foil shield
Halogen-free
incl. detent
TPE coating

: 32/7

Cable use: Networks

Version: Cable

Cable design: Round

: Copper

Max. frequency: 500 MHz

LAN transfer rate: 100 MBit/s
1000 MBit/s
2500 MBit/s
10000 MBit/s

Halogen-free: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2614815 LogiLink CQ9063S RJ45 Patch cable CAT 6A U/FTP 3.00 m Black Extra slim, Flame-retardant, Flexible, Metal foil shield, Ha

User & Safety Instructions

User & Safety Instructions 2614815 LogiLink CQ9063S RJ45 Patch cable CAT 6A U/FTP 3.00 m Black Extra slim, Flame-retardant, Flexible, Metal foil shield, Ha

Description

The extra slim Cat. 6a patch cable from LogiLink enables a flexible and very space-saving installation in network cabinets, in which there is little space. Due to the slim design and the high bending radius compared to conventional patch cables, these cables fit even in very narrow environments. They are able to do so with much less space, while maintaining the same performance.

This text is machine translated.
