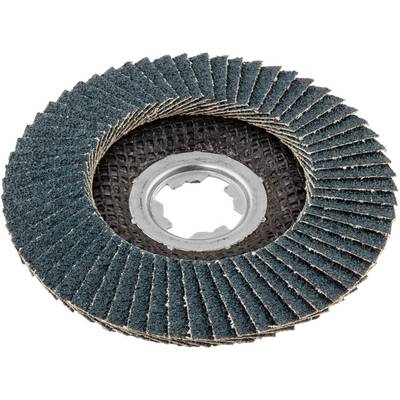

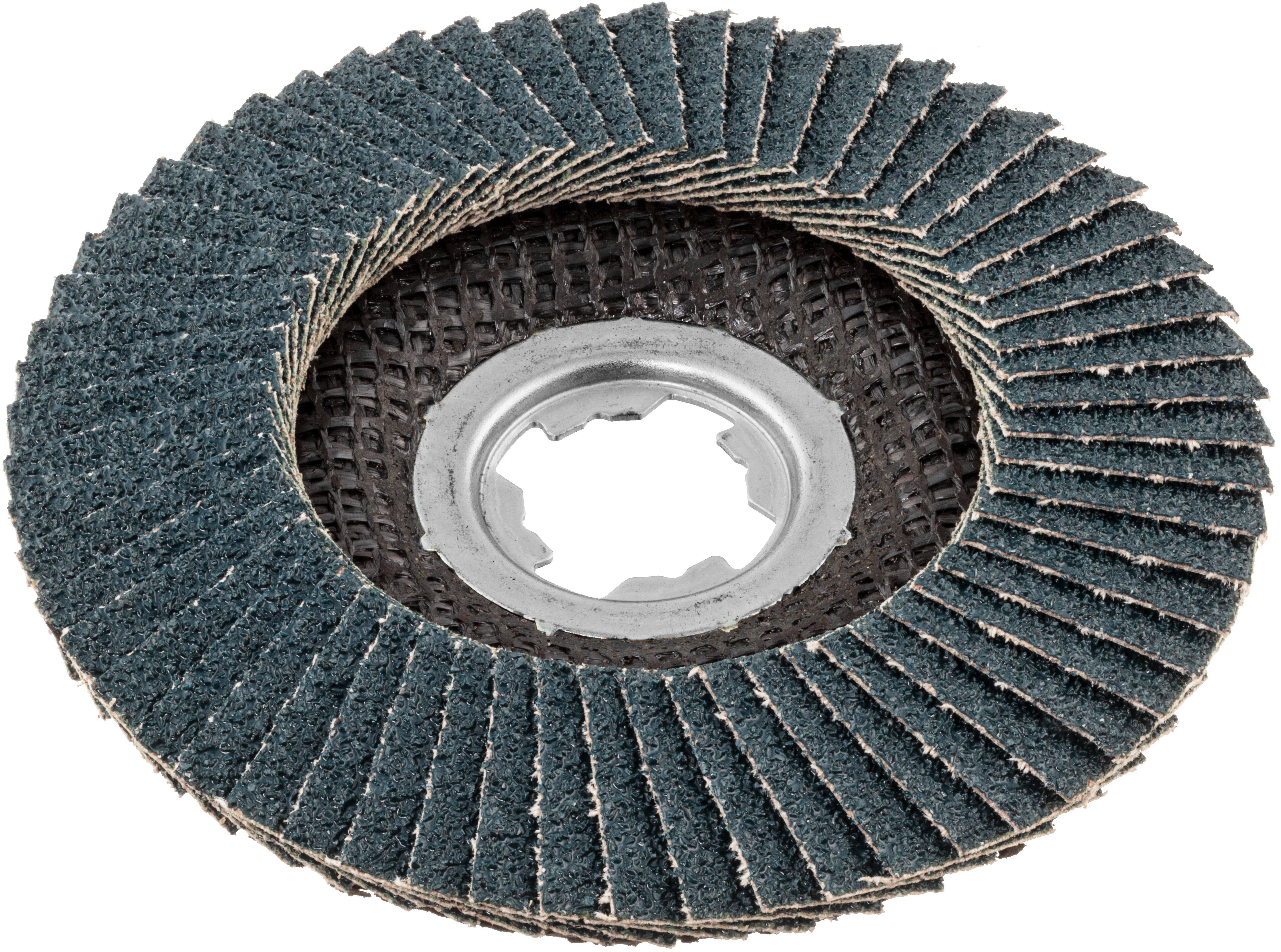

LUKAS-ERZETT A67181250401865 Flap disc Diameter 125 mm Grit size=40 10 pc(s)
EAN:
Part number:
Item no:
Number (Package size 10 pc(s))
Total (€ 4.03 / piece)
€ 40.33
plus VAT.
Highlights & Details
Fan grinding disc SLTR Ø 125 mm zirconium oxide grain 40 | for X-lock angle grinder | inclined
- All the advantages of the SLTR with an additional innovative X-Lock mounting system
Technical specifications
- Safety standard EN 13743 & OSA
- X-Lock tool holder
- Tool holder dimensions 22.23 mm
- V max. (m/s): 80
- n max. (1/min): 12200
- Tool shape: Sloped
- Grain size - fleece 40
- Stars: 2
- Grinding agent: ZK (zirconium corundum)
- Flap disc design: SLTO with glass fiber backing
- Flap-wheel shape: Sloped
- Suitability Steel and cast steel RM up to 800 N/mm²: Well suitable
- Suitability alloyed, coated steels RM up to 1200: Well suited
- Suitability for tool steels RM up to 1300 N/mm²: Well suited
- Suitability rust, acid, heat-resistant. Steel/cast: Well suited
- Suitability cast iron: Well suitable
- Suitable Al, Mg and Cu alloys: Well suited
- Suitability titanium and nickel alloys: Suitable
- Suitability titanium and nickel alloys: Well suitable
- Chamfer application: Suitable
- Application deburring: Suitable
- Application of welding seam working: Well suited
- Suitable for steel: Well suited
- Suitable for Inox/Steel: Well suited
- Suitable for cast: Well suited
- Suitable for Aluminum: Well suitable
- Suitable for titanium
- Suitable for plastic / wood: Well suited
- Product type
Flap disc
- (Ø)
125 mm
- Bore Ø
22.23 mm
- Grit size
40
- Material
Zirconium/corundum
- Material suitability
Steel
- Content
10 pc(s)
- Rotational speed (max.)
12200 U/min
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3443050 LUKAS-ERZETT A67181250401865 Flap disc Diameter 125 mm Grit size=40 10 pc(s)
Description
All the advantages of the SLTR with an additional innovative X-Lock mounting system
Latest technology: With X-Lock-tensioning system
With rectangular fins for a very good price/performance ratio
Light carrier material for low tool weight
Can be used universally on standard angle grinders thanks to 22.23 mm bore
Also efficiently splints even harder materials
Environmentally friendly manufactured with the latest resin hardening technology
Safe working even with high rotational speeds and temperatures, thanks to the special resin adhesive
Self-sharpening effect: High abrasion particularly on stainless steel
Always fresh abrasive sheets in use: Wear releases underlying slats
High security: No breaking of very tensile-resistant glass fibers
High safety by locking the tool - no unintentional loosening
High hardness and sharpness for long durability
Quick one-click mounting without clamping wrench
Highest life span by multi-layered grinding pad
Manufactured with the best-selling carrier
Inexpensive
Quality-tested: High safety through regular testing
Elastic backing material: Less vibration at work
A glass-fabric carrier supports an excellent surface result through its flexibility
The LUKA SLTR grinding disc with zirconium oxide is characterized by the innovative X-Lock mounting system that allows quick one-click assembly by hand without clamping wrench. At the same time a high level of safety is ensured during operation and an unintentional loosening is not possible. The tool is ideally suited for deburring, trimming, rust removal, smoothing and for welding seam working. The light, stable and elastic glass-fabric carrier of the plate achieves an excellent surface result through its flexibility. The high fracture protection as well as low vibrations during work and easy handling make this tool perfect. Thanks to the multi-layered grinding coating, the grinding blade plate is always so sharp as with the first use. If the upper fins wear, the fresh abrasive surface of the underlying slats is exposed. In this way the tool has a long service life and a constant quality of work. Due to the self-sharpening effect of the zirconium, combined with a high hardness and sharpness of the grinding grain, the grinding plate achieves high yields and a long service life especially on hard and tough materials such as stainless steel. Thanks to a high-quality resin system, the tool does not tear even at high speeds and working temperatures. In addition, environmental protection is taken into account in the production and state-of-the-art technologies with short curing times are used. The wide range of LUKAS includes grinding units for all workpieces and all types of machining.
This text is machine translated.
Latest technology: With X-Lock-tensioning system
With rectangular fins for a very good price/performance ratio
Light carrier material for low tool weight
Can be used universally on standard angle grinders thanks to 22.23 mm bore
Also efficiently splints even harder materials
Environmentally friendly manufactured with the latest resin hardening technology
Safe working even with high rotational speeds and temperatures, thanks to the special resin adhesive
Self-sharpening effect: High abrasion particularly on stainless steel
Always fresh abrasive sheets in use: Wear releases underlying slats
High security: No breaking of very tensile-resistant glass fibers
High safety by locking the tool - no unintentional loosening
High hardness and sharpness for long durability
Quick one-click mounting without clamping wrench
Highest life span by multi-layered grinding pad
Manufactured with the best-selling carrier
Inexpensive
Quality-tested: High safety through regular testing
Elastic backing material: Less vibration at work
A glass-fabric carrier supports an excellent surface result through its flexibility
The LUKA SLTR grinding disc with zirconium oxide is characterized by the innovative X-Lock mounting system that allows quick one-click assembly by hand without clamping wrench. At the same time a high level of safety is ensured during operation and an unintentional loosening is not possible. The tool is ideally suited for deburring, trimming, rust removal, smoothing and for welding seam working. The light, stable and elastic glass-fabric carrier of the plate achieves an excellent surface result through its flexibility. The high fracture protection as well as low vibrations during work and easy handling make this tool perfect. Thanks to the multi-layered grinding coating, the grinding blade plate is always so sharp as with the first use. If the upper fins wear, the fresh abrasive surface of the underlying slats is exposed. In this way the tool has a long service life and a constant quality of work. Due to the self-sharpening effect of the zirconium, combined with a high hardness and sharpness of the grinding grain, the grinding plate achieves high yields and a long service life especially on hard and tough materials such as stainless steel. Thanks to a high-quality resin system, the tool does not tear even at high speeds and working temperatures. In addition, environmental protection is taken into account in the production and state-of-the-art technologies with short curing times are used. The wide range of LUKAS includes grinding units for all workpieces and all types of machining.
This text is machine translated.
System requirements
- X-LOCK angle grinder
