Lumberg 0314 03 DIN connector Plug, vertical mount Number of pins: 3 Silver 1 pc(s)

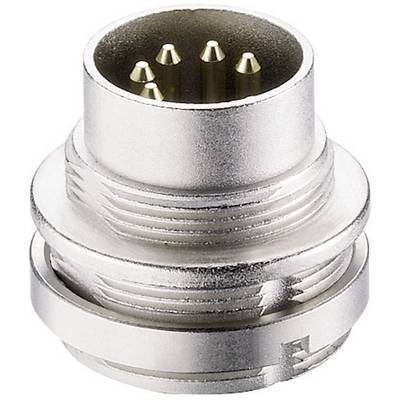

Round, metallic plug with six golden pins. Possibly an audio or data connection.
An electrical circuit diagram shows the numbering of three terminal connections in a circular arrangement: 1, 2 and 3.
1/2
Image similar
Product type
DIN connector
Connector type
Plug, vertical mount
Connection
Soldering
Number of pins
3
Contact material
Gold plated
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
124 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 6.49 / piece)
€ 6.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Lumberg 0314 03 DIN connector Plug, vertical mount Number of pins: 3 Silver 1 pc(s)

  • IP 68

Our service for you

Technical specifications

Type

Screw Cap, Front Mounting

Product type

DIN connector

Connector type

Plug, vertical mount

Factory colour

Silver

Connection

Soldering

Number of pins

3

Contact material

Gold plated

Material (details)

Housing: nickel-plated

Manufacturer part #

0314 03

Type

0314 03

Connector cross section

0.75 mm²

Content

1 pc(s)

Nominal voltage

250 V AC

Nominal current

5 A

PIN image

IEC 60130-9

IP68

Temperature range

-40 to +85 °C

Pins

3

Connection

Soldering

Documents & Downloads

Datasheet

Datasheet 733064 Lumberg 0314 03 DIN connector Plug, vertical mount Number of pins: 3 Silver 1 pc(s)

User & Safety Instructions

User & Safety Instructions 733064 Lumberg 0314 03 DIN connector Plug, vertical mount Number of pins: 3 Silver 1 pc(s)

Description

Lumberg products provides for the different devices in daily life for reliable electrical connections This round plug connector with screw caps provides for secure connection despite of simple mounting Suitable for signal and load currents up to 5 A. Plug compatible to IEC 60130-9
