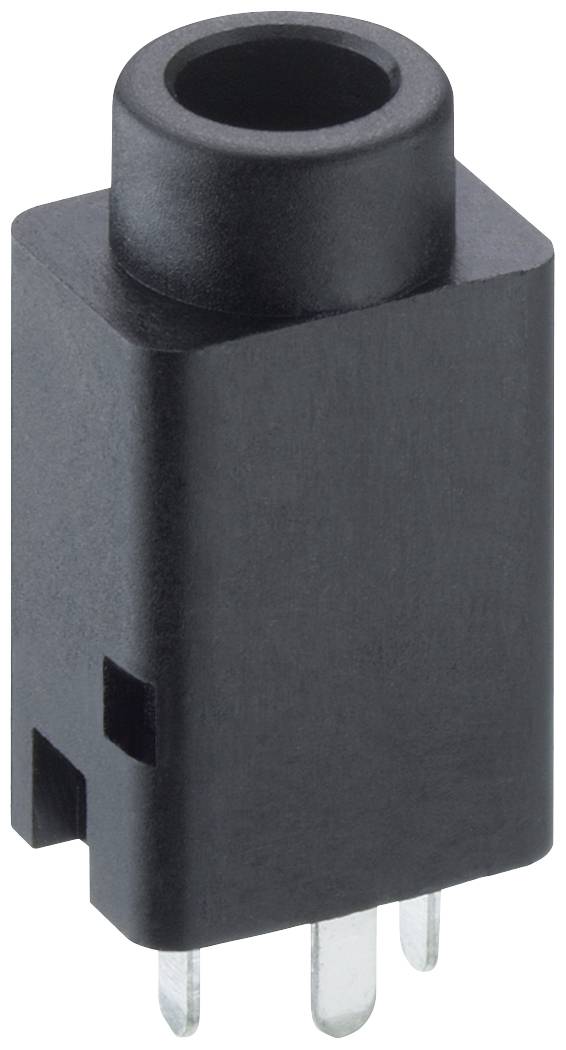

A black, rectangular audio plug with three metal pins on its underside. It is used for connecting audio devices.

Image similar

A black, rectangular audio plug with three metal pins on its underside. It is used for connecting audio devices.

Image similar

Lumberg

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 0.02 / piece)

€ 0.02

plus VAT.

Report legal concerns

Technical specifications

Pins: 3
Temperature range --20°C/+70°C
Contact carrier PBT, V-0 acc. To UL94
Contact spring: CuSn, silver plated
Mating cycles 5000
Insertion force 3–30 N
Pulling force 3–30 N
Constant resistance 30 mΩ
Rated current 1 A
Rated voltage: 12 V
Rated surge voltage 500 V/60 s.

Product type: Jack socket

Number of pins: 3

Content: 1 pc(s)

Connection: Print

Nominal current: 1 A

Nominal voltage: 12 V

Max. temperature: +70 °C

Min. temperature: -20 °C

Documents & Downloads

Datasheet

Datasheet 3208107 Lumberg 1502 07 Jack socket

User & Safety Instructions

User & Safety Instructions 3208107 Lumberg 1502 07 Jack socket

Description

Jack panel coupler in accordance with JIS C 6560 JC35J3A, 3.5 mm, 3-pin/stereo, upright version, for PCBs
