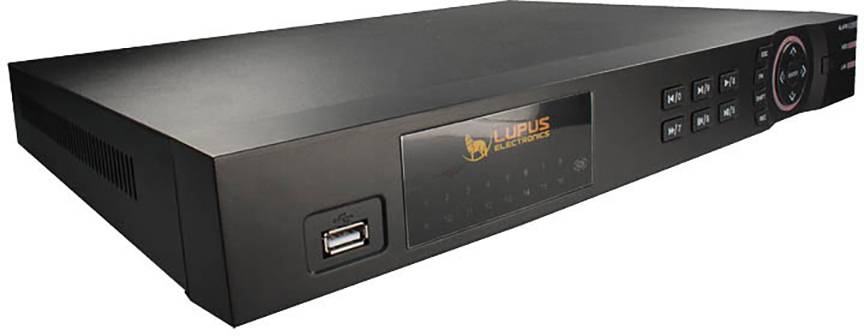

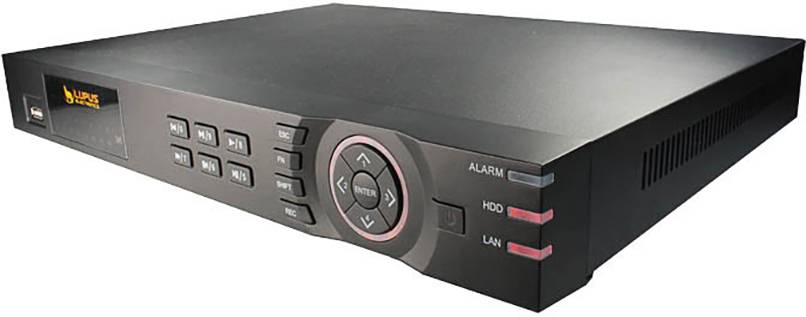

Lupus 13524 LE 820 8-channel Network video recorder
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LE 820
- 8 channel HD-DVR for LUPUS-HD and older analogueue cameras
- Supports coaxial and two-wire cables up to 1200 meters at 720p And 800 meters at 1080p
- Full HD and IP camera support up to 4K (8 MP / 3840x2160 pixels)
- HDMI and VGA monitor connection
- Mobile access via smartphone or tablet (iOS + Android) And web browser
- Intelligent video analysis and search
Technical specifications
- Product type
Network video recorder
- Signal standard
IP
- Recording mode
Movement detection
Alarm
Manual
Preset
- Outputs
HDMI
VGA
- Factory colour
Black
- Width
375 mm
- Height
53 mm
- Depth
287 mm
- Weight
1.7 kg
- Dim
(W x H x D) 375 x 53 x 287 mm
- Resolution (max.)
3840 x 2160 p
- Memory expansion up to
10 TB
- Built-in memory
none
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2339884 Lupus 13524 LE 820 8-channel Network video recorder
User & Safety Instructions
User & Safety Instructions 2339884 Lupus 13524 LE 820 8-channel Network video recorder
Description
THE lupus LE 820 is a digital video recorder with 8 and video inputs, which have the H. 265+ and H.264 codec. This allows you to reduce the bit rate and still get a high video quality. This not only significantly reduces the load on the network, but also reduces the storage requirements by up to 90%.
The recorder automatically supports and detects HDCVI, analogueue and IP signals. Thus, they can build, upgrade or retrofit an efficient mixing system in a simple and cost-effective way.
Simply integrated in the local network, the recorder records reliably by motion detection or in case of alarm. The software is clearly structured and particularly easy to use. The interface on the device (e.g. playback) is identical to the operation via browser or the included free software, which enables an access to all LUPUS recorders of the new generation. AN app for iOS and Android is available free of charge.
This text is machine translated.
The recorder automatically supports and detects HDCVI, analogueue and IP signals. Thus, they can build, upgrade or retrofit an efficient mixing system in a simple and cost-effective way.
Simply integrated in the local network, the recorder records reliably by motion detection or in case of alarm. The software is clearly structured and particularly easy to use. The interface on the device (e.g. playback) is identical to the operation via browser or the included free software, which enables an access to all LUPUS recorders of the new generation. AN app for iOS and Android is available free of charge.
This text is machine translated.
Scope of delivery
- LE 820
- User manual.
