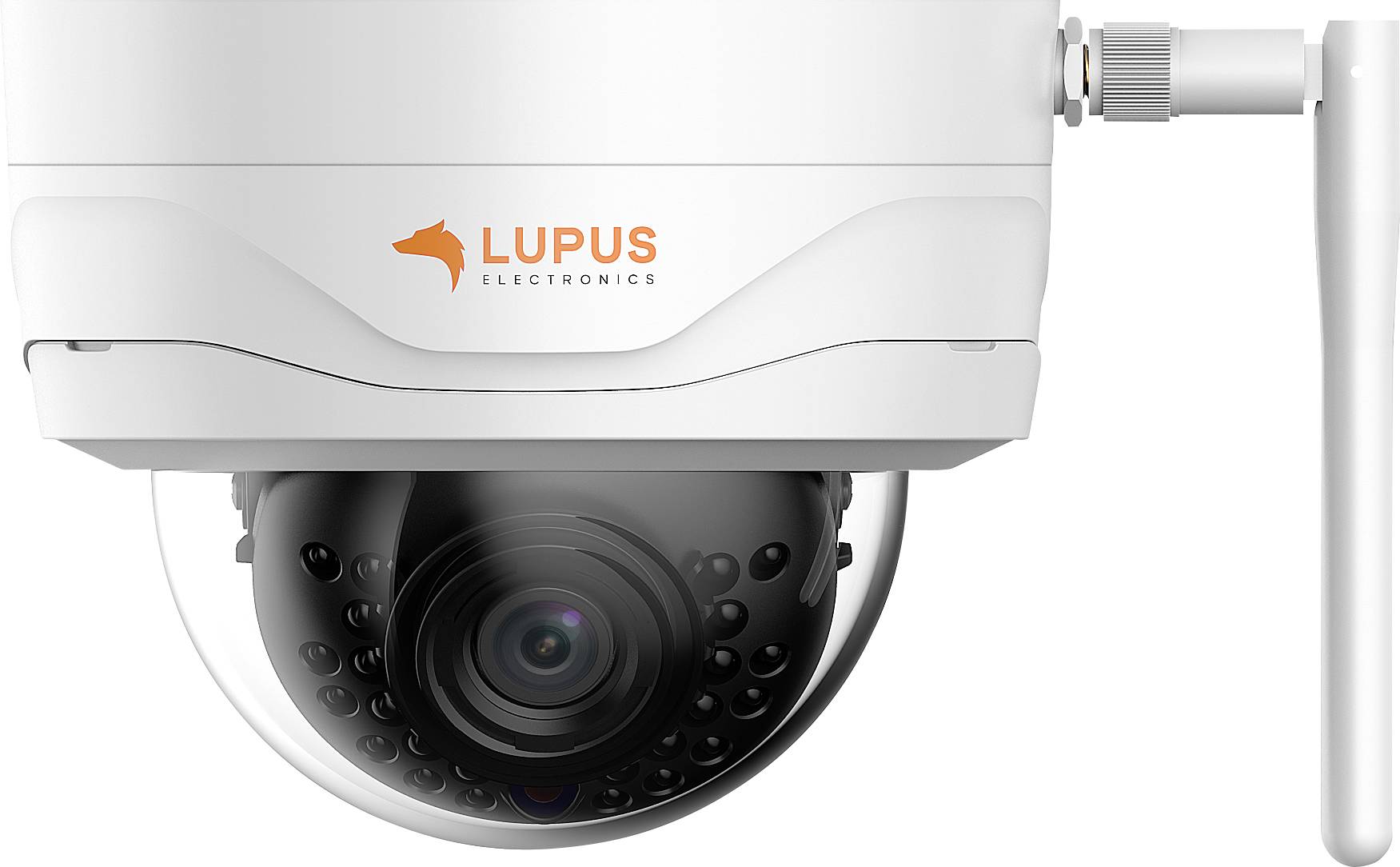

Surveillance camera by Lupus Electronics with plastic casing and glass lens, suitable for indoor and outdoor monitoring.

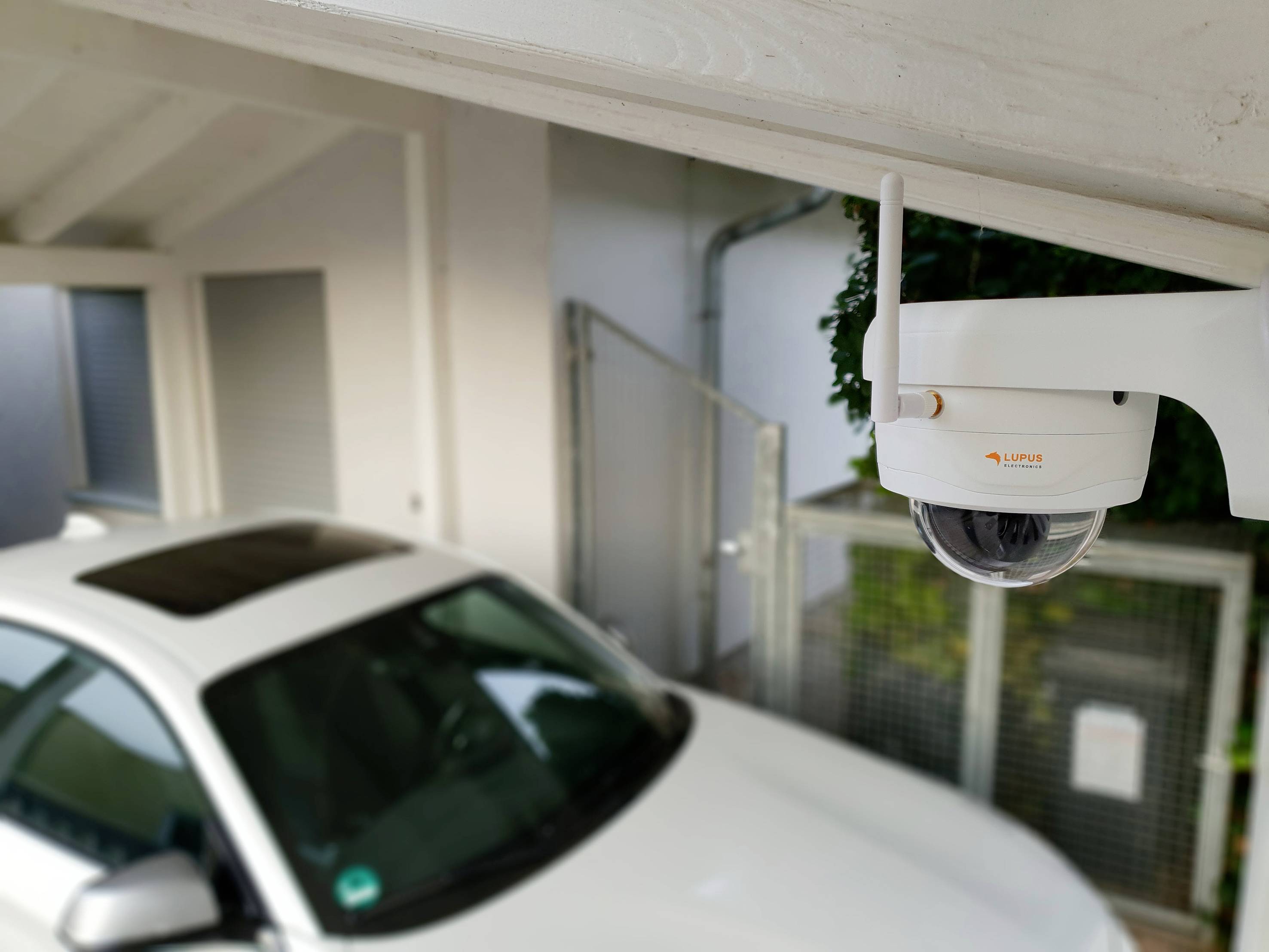

Security camera in a garage focusing on a parked white car. Camera positioned for security monitoring.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Wi-Fi IP-Dome camera;1920 x 1080 p;LupusHD LE204 WLAN;10204Outdoors, Indoors

3 megapixels, max. 2304 x 1296 pixels at 20 FPS
1080p (1920 x 1080) at 25 FPS
IR night vision up to 30 meters
2.8 mm lens with 100 degree viewing angle
Wi-Fi enabled
High-quality housing with protection class IP67 & IK10 for outdoor use
Suitable for SD cards up to 128 GB
Suitable for wall and ceiling mounting

Technical specifications

Product type: CCTV camera

Camera type: Dome camera

Resolution (max.): 1920 x 1080 p

Sensor type: CMOS

: Manufacturer-specific

Focal length: 2,8 mm

Max. viewing angle hor.: 100°

Vertical viewing angle: 77°

App compatibility: Yes

Transfer type: Wi-Fi

Wi-Fi standard: IEEE802.11b
IEEE802.11g

IR range (max.): 30 m

Used at: Outdoors
Indoors

Type: microSD card (up to 128 GB)

Height: 81 mm

(Ø): 109.9 mm

Dim: (Ø x H) 109.9 mm x 81 mm

Weight: 470 g

Factory colour: White

: IP67

Signal standard: IP

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2339841 Lupus HD LE204 WLAN 10204 Wi-Fi IP CCTV camera 1920 x 1080 p

User & Safety Instructions

User & Safety Instructions 2339841 Lupus HD LE204 WLAN 10204 Wi-Fi IP CCTV camera 1920 x 1080 p

Description

THE lupus - LE204 is the new benchmark for HD video surveillance from the German manufacturer LUPUS-Electronics. With features such as the ultra-sensitive 3 megapixel image sensor for resolutions up to 2304 x 1296 pixels, the 100 degree wide-angle lens and the 30 m night vision range, you can make the new LUPUSNET – LE204 an unbeatable ally for your project.
The high-quality dome housing with IP67 and IK10 protection class allows you to use this camera anywhere – neither the deepest winter nor the highest summer are a problem for this camera. Or simply: A camera that leaves nothing to be desired.

This text is machine translated.
