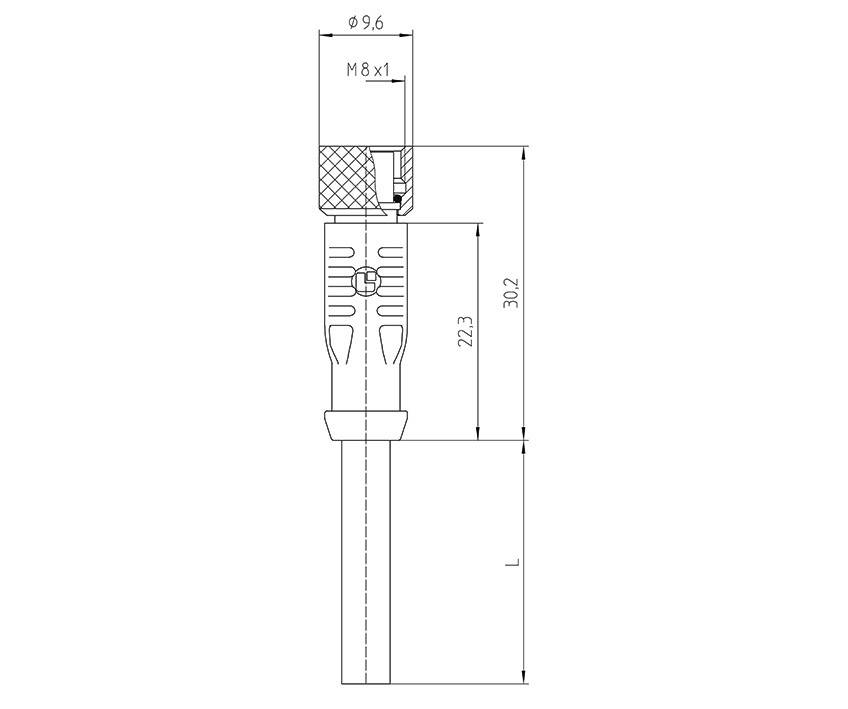

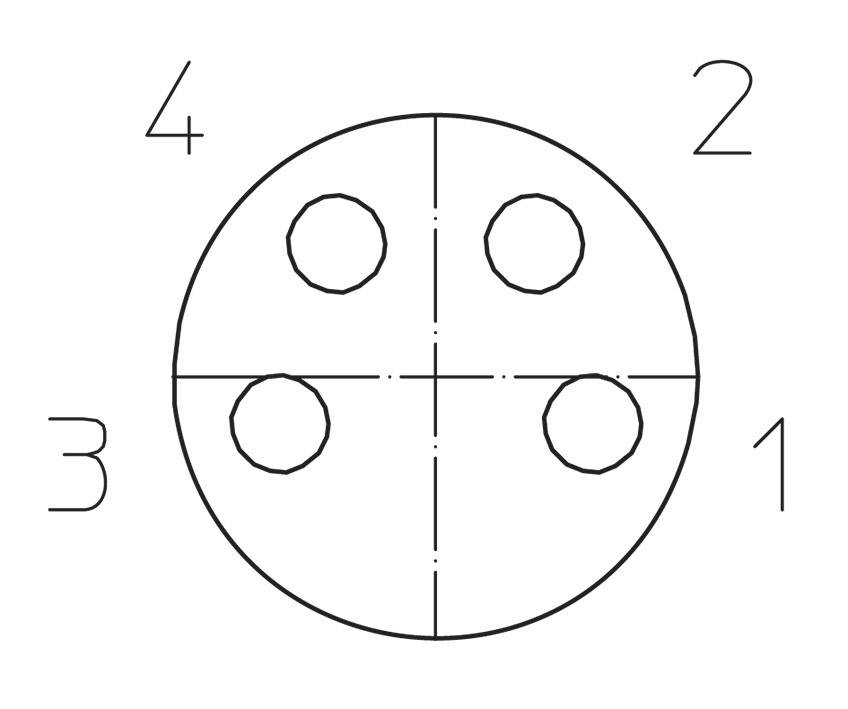

Stroke drawing/circuit diagram
1/3
Stroke drawing/circuit diagram
Lutronic 1028 Sensor/actuator connector (pre-fab) M8 Connector, straight 2.00 m No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
Connector, straight
Connector standard
Sensor connector
Connection side A
M8 socket, straight
Connection side B
Cable, open end
Datasheet (PDF)
Number
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Type
0800 04 002 2m
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Connector, straight
- Connector standard
Sensor connector
- Connection side A
M8 socket, straight
- Connection side B
Cable, open end
- No. of pins
4
- Cable length
2.00 m
- Jacket material
PVC
- Nominal voltage
60 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Outside Ø
9.6 mm
- Factory colour
Black
- Thread type connection side
M8
- Cable colour
Black
- Coding
A
- Contact material
Brass, nickel and gold plated
- Contact surface
PVC
IP67
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
1028
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1910568 Lutronic 1028 Sensor/actuator connector (pre-fab) M8 Connector, straight 2.00 m No. of pins (RJ): 4 1 pc(s)
