Lutronic 1162 Sensor/actuator cable M12 Plug, straight, Socket, right angle 5.00 m No. of pins (RJ): 4 1 pc(s)

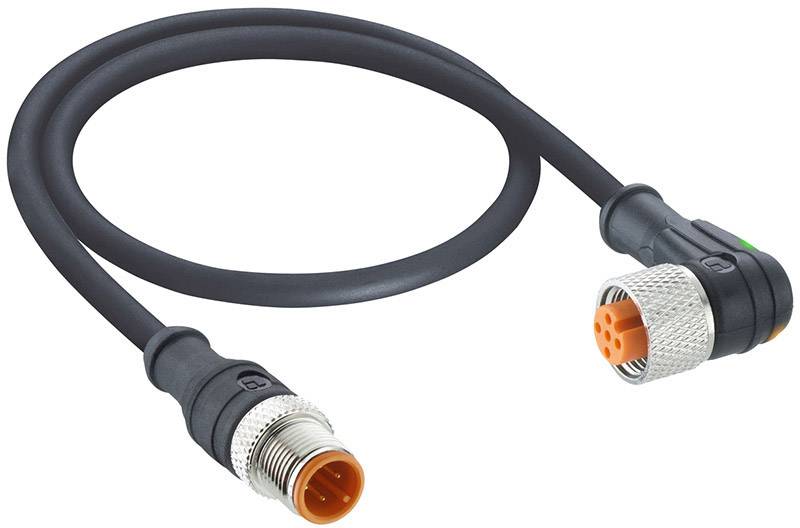

Black cable with silver and orange connectors at both ends. Suitable for industrial applications.

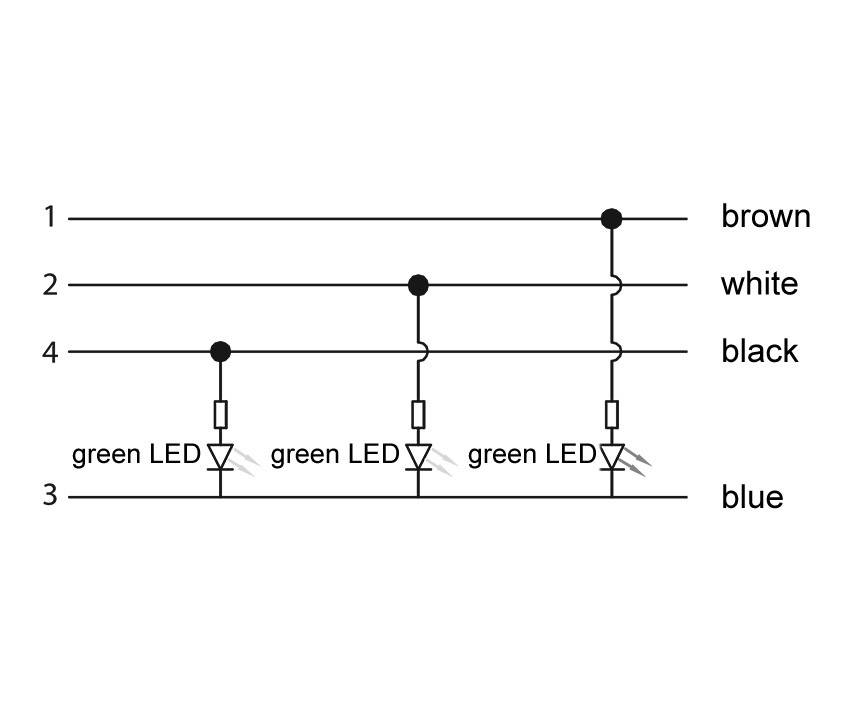

Circuit diagram with three green LEDs connected in parallel, linked with brown, white, and black cables on the left side and a blue cable on the right side.
Electrical circuit diagram with three green LEDs in series on line 3, connected to blue line. Lines 1, 2, 4 in brown, white, black.

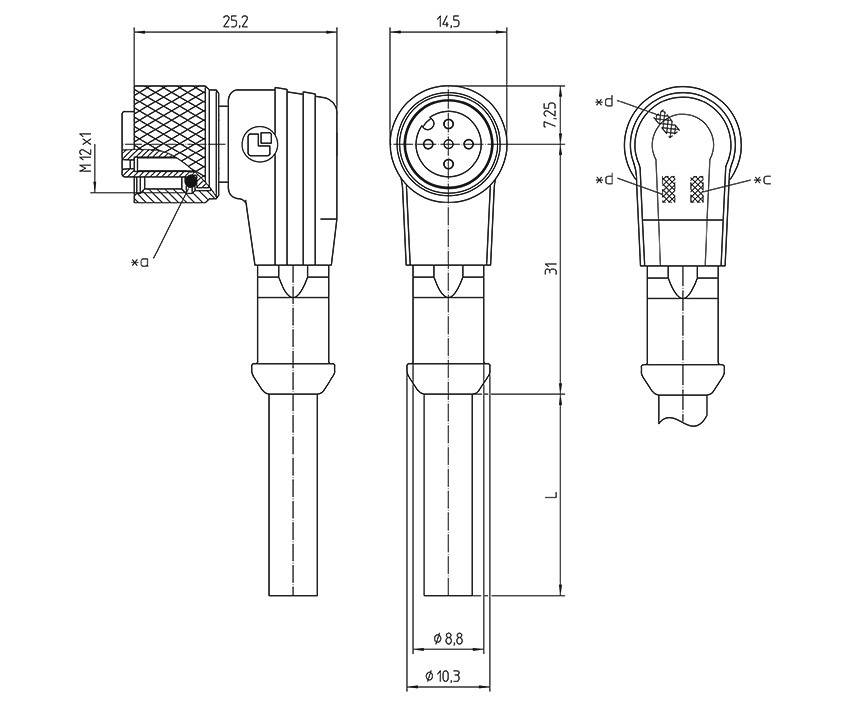

Technical drawing of an electrical connector with dimensions and top views of side elements and connector parts.

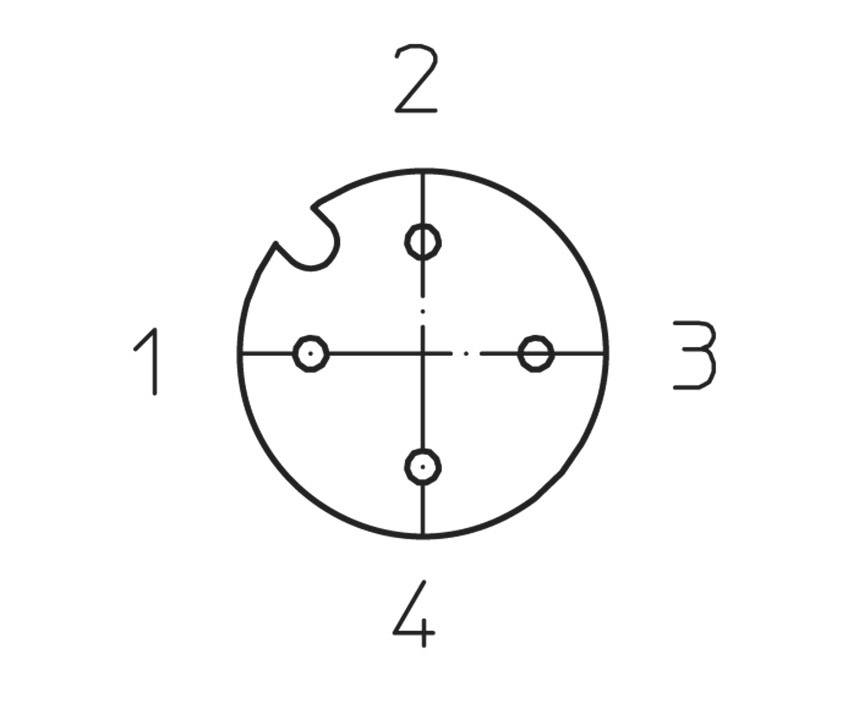

Diagram of a circular connector with four numbered pins distributed around the point. Pin 1 has a notch for orientation.
1/5
Image similar
Product type
Sensor/actuator cable
Connector type
Plug, straight
Socket, right angle
Connector standard
Sensor connector
Connection side A
M12 plug, straight
Connection side B
M12 socket, right angle
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
6 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 23.99 / piece)
€ 23.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 6 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Type

1210 1206 04 L2 301 5m

Product type

Sensor/actuator cable

Connector type

Plug, straight

Socket, right angle

Connector standard

Sensor connector

Connection side A

M12 plug, straight

Connection side B

M12 socket, right angle

No. of pins

4

Cable length

5.00 m

Jacket material

PUR

Nominal voltage

30 V

Nominal current

4.0 A

Nominal current - rounded value

4 A

Outside Ø

14.5 mm

Factory colour

Black

Thread type connection side

M12

Thread type (wiring and installation)

M12

Cable colour

Black

Coding

A

Contact material

Brass, nickel and gold plated

Contact surface

TPU

IP67

Features

+ LED

Min. temperature

-25 °C

Max. temperature

+80 °C

Seal type

Screw-on

Manufacturer part #

1162

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1910658 Lutronic 1162 Sensor/actuator cable M12 Plug, straight, Socket, right angle 5.00 m No. of pins (RJ): 4 1 pc(s)
