Lütze 493091 Sensor/actuator recess-mount socket Socket, straight No. of pins (RJ): 19 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator recess-mount socket
Connector type
Socket, straight
Connector standard
HDMI
No. of pins
19
Nominal voltage
5 V
Datasheet (PDF)
2 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 35.99 / piece)
€ 35.99
incl. VAT
Only 2 Piece(s) available
Only available for business customers
14-day return policy includedTechnical specifications
- Design HDMI 2.0
- Insulation resistance 100 MΩ
- Constant resistance 30 mΩ
- Case material PC, ABS
- Mounting: Front mounting
- Installation depth about 30 mm
- Dimensions (WxHxD) 31 x 44.3 x 44.5 mm
- Weight: 32 g
- Max. Power 2.5 W
- Operating voltage max. 30 V
- Bandwidth 4 K / 60 Hz
- 18 Gbit/s transfer rate
- Type
HDMI F/F 90° PC
- Product type
Sensor/actuator recess-mount socket
- Connector type
Socket, straight
- Connector standard
HDMI
- No. of pins
19
- Nominal voltage
5 V
- Nominal current
0.5 A
- Nominal current - rounded value
500 mA
- Connection
Socket
- Factory colour
Black
- Contact material
CuSn, gold plated
IP65
- Features
Shielded
- Min. temperature
-20 °C
- Max. temperature
+80 °C
- Manufacturer part #
493091
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3337957 Lütze 493091 Sensor/actuator recess-mount socket Socket, straight No. of pins (RJ): 19 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3337957 Lütze 493091 Sensor/actuator recess-mount socket Socket, straight No. of pins (RJ): 19 1 pc(s)
Description

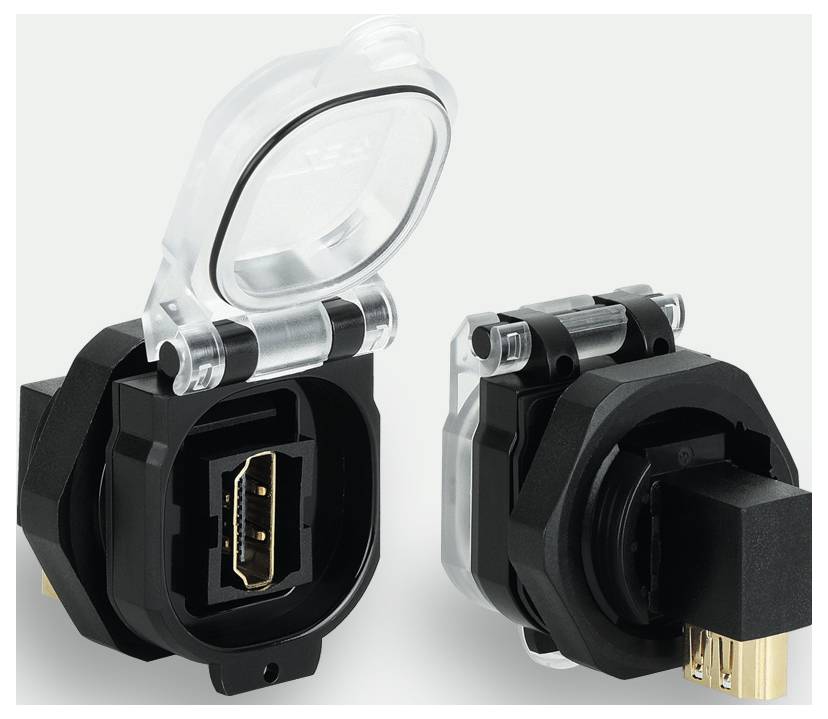

HDMI 2.0 - Panel socket for front mounting PG21, shielded, socket type A / socket type A / 180° / 1:1
This text is machine translated.
This text is machine translated.
Features
- Service interface for control cabinets and control panels
- Very compact and robust design
- Transparent hinged lid, locks in when opened
- High protection class IP69
- Straight plug connector 180°
- Installation depth about 30 mm
- Lead-sealable
- Identification by label is possible
