Buy Manhattan 102049 Smartcard Chip card reader

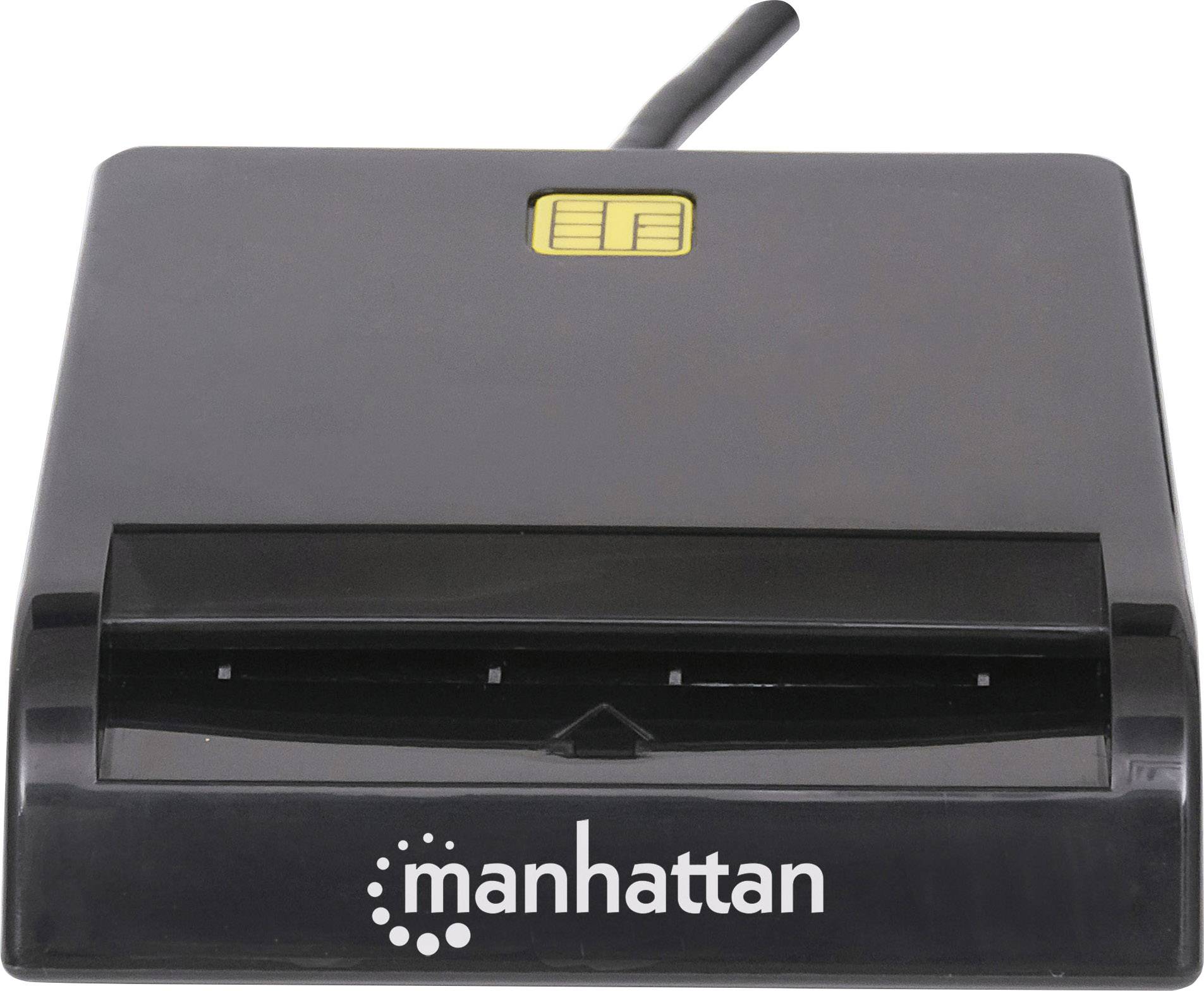

A card terminal by 'manhattan' with a card slot and LED display on the top, suitable for contactless payments.

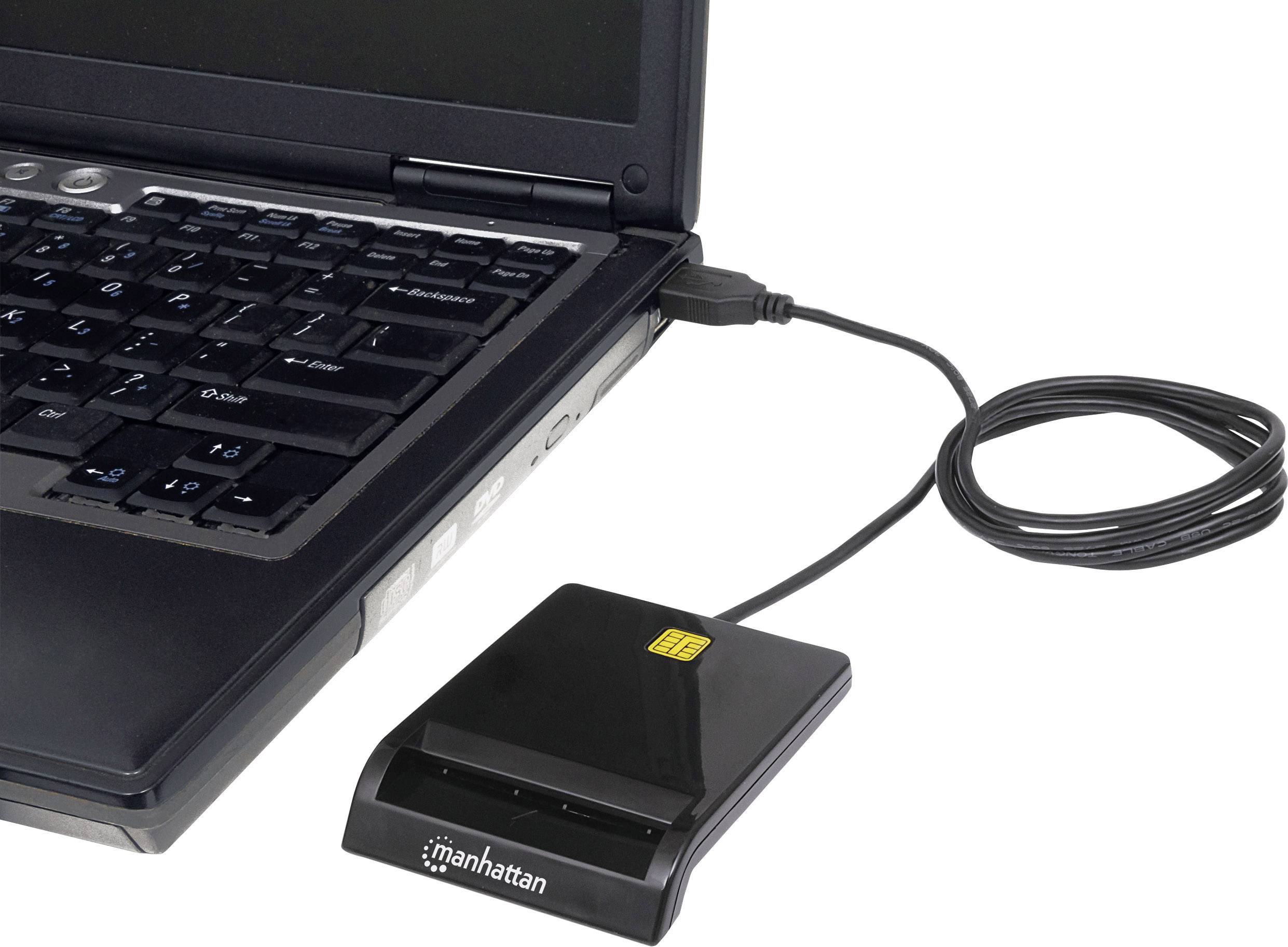

A laptop connected via USB to an external card reader.

Black card reader with a yellow chip symbol marking at the top. Marked with 'manhattan' at the bottom.<br><br>Note: Since this was already in English, no translation was necessary. The text appears to be a description of a device in standard English.

A laptop is connected to a smartcard reader via a USB cable.

1/6

Datasheet (PDF)

Fast track dispatch on Mon, 21 Sep

244 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 8.39 / piece)

€ 8.39

plus VAT.

Report legal concerns

Manhattan Smart Card Reader chip card reader external USB

Highlights & Details

Suitable for smart cards with contact chip
Ideal for applications with safety-related transactions and transfers
For numerous application areas such as healthcare, online banking and much more
Supports data transfer rates up to 12 Mbit/s

Technical specifications

Product type: Chip card reader

Range of uses: Chip card reader

Interfaces: USB A (USB 2.0)

Weight: 60 g

Cable length: 1.00 m

Software included: Yes

Length: 85 mm

Height: 15 mm

Width: 65 mm

Factory colour: Black

Depth: 145 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1888308 Manhattan 102049 Smartcard Chip card reader

User & Safety Instructions

User & Safety Instructions 1888308 Manhattan 102049 Smartcard Chip card reader

Description

Secure data transfer and access control
Smart card technology can be found in numerous applications today: In the security sector, in financial transactions, in medicine, in loyalty programs in the trade, at toll stations, in time recording and much more. Contact-bound chip cards can be simply inserted in the Manhattan smart card reader and the stored data can thus be reliably exchanged between the card and the host PC. This offers much more security and protection than cards with magnetic strips.

Rapid and simple installation
The installation of the Manhattan smart card reader is straightforward via the USB port and the accompanying driver CD. All common operating systems from Windows to iOS up to Linux are supported. No additional cables or an external power supply are required.

This text is machine translated.

Features

Integrated Circuit: AU 9540
CPU Card: conforms to ISO 7816-1, 2, 3, 4 (supports T=0 and T=1 protocols), PC/SC Version 1.0 /2.0 standard and EMC 4.1
Memory Card: Synchronous 2-line, 3-line, 4432, 4442, 4418, 4428, SLE AT88SC1608, 45 D041 and I2C interface
PC/SC compliant 1.0 /2.0
LED indicators for power and activity
Current: USB 5V + 5%; consumption, 60 mA max.
Service life: approx. 200,000 read cycles
Recommended for operation: 0 to 50°C; recommended for storage: -35 to 70 °C
