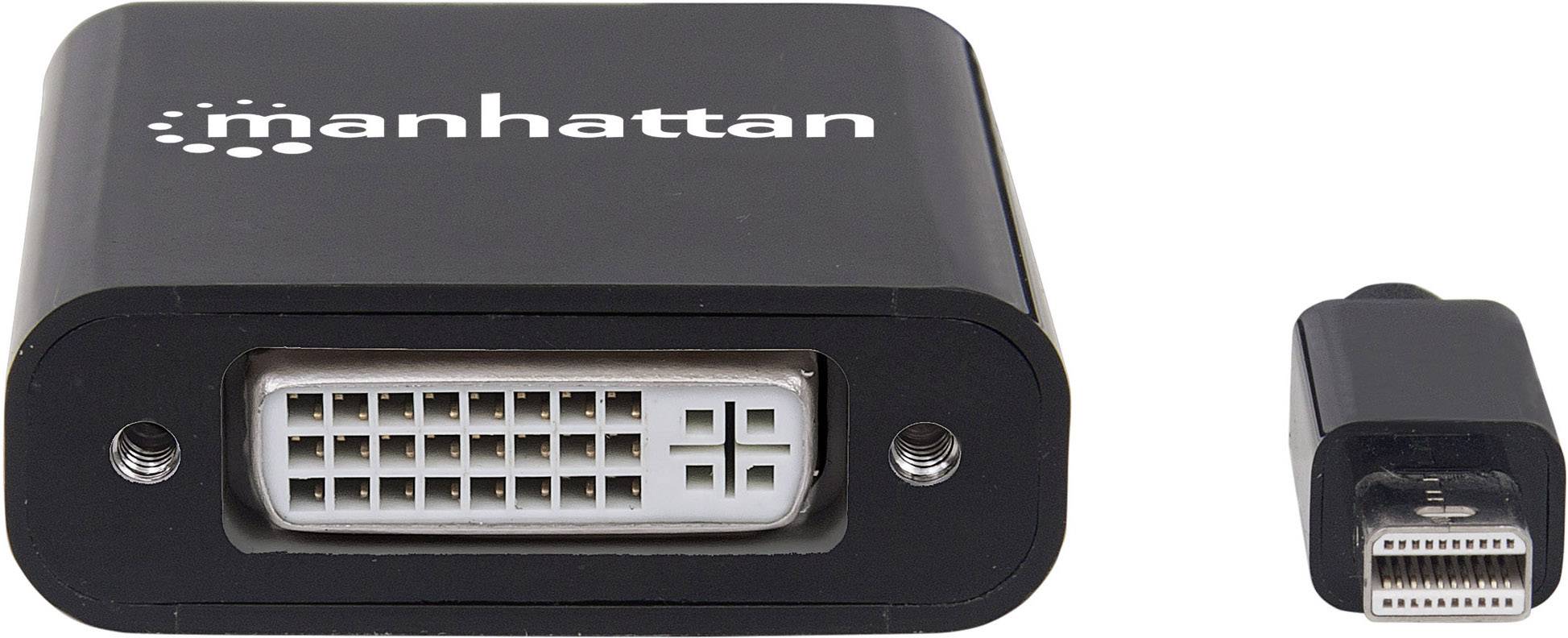

Manhattan 322485 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x DVI socket 29-pin] Black Shielded, UL-approved
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Manhattan Passive Mini Displayport to DVI-I adapter, 1080p @ 60Hz black
- Simple connection to an Mini Displayport source to a DVI display
- For the connection of a Mini Displayport source to a DVI-I-Display
- Compatible with DVI-D Single Link
- Provides a high-quality, active signal to a DVI display
- Ideal for PCs and Macs with mini DP ++ Ports
- Requires DP ++ (Dual Mode) graphics cards in order to renew the signal and, therefore, for the optimal connection with HD displays and projectors
- Ideal for gaming, digital signage, financial accounting and more
Technical specifications
- Product type
TV/monitor Adapter
- Connection type
Mini DisplayPort
- No. of A connectors
1 x
- Type A
Mini DisplayPort plug
- No. of B connections
1 x
- Type B
DVI socket 29-pin
- Cable length
15.00 cm
- Factory colour
Black
- Video resolution
1920 x 1200 Pixel
- Shielding
Shielding film
- Connector version
straight
- Cable features
Shielded
UL-approved
32
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- DisplayPort version
DisplayPort 1.4
Copper
- Cable design
Round
- Signal flow direction
Bidirectional (bi)
- Weight
0.03
![Manhattan 322485 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x DVI socket 29-pin] Black Shielded, UL-approved 15.00 cm](https://asset.conrad.com/media10/isa/160267/c1/-/en/1651077_BB_02_FB/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![Manhattan 152549 Mini DisplayPort Adapter [1x DVI socket 29-pin - 1x Mini DisplayPort plug] Black Shielded, UL-approved 15.00 cm](https://asset.conrad.com/media10/isa/160267/c1/-/en/1651076_BB_01_FB/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
![Manhattan 152570 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black Shielded, UL-approved 15.00 cm](https://asset.conrad.com/media10/isa/160267/c1/-/en/1651088_BB_01_FB/image.jpg?x=100&y=100&format=webp&ex=100&ey=100&align=center)
Documents & Downloads
Datasheet
Datasheet 1651077 Manhattan 322485 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x DVI socket 29-pin] Black Shielded, UL-approved
User & Safety Instructions
User & Safety Instructions 1651077 Manhattan 322485 Mini DisplayPort Adapter [1x Mini DisplayPort plug - 1x DVI socket 29-pin] Black Shielded, UL-approved
Description
The passive Mini Displayport to DVI-I adapter from Manhattan enables the connection of sources with Mini Displayport interface on a display or a projector with DVI port. Please note that older graphics cards which no DP ++ (dual mode), this adapter does not support. In this case simply access to the active version with item number 152549. For all other users, this adapter is ideal for many video applications such as digital signage, multi-screen gaming and jobs with multiple screens. The effective shielding provides for highest signal quality and at resolutions of up to 1080p.
This text is machine translated.
This text is machine translated.
Features
- Passive mini-DP conversion
- Maximum single-link Range: 1920 x 1200 (1080p@60Hz)
- Voltage strength: 300 V
- Insulation resistance: 5 MOhm
- Line resistance: 10 Ohm
- Molded PVC sleeve
- Environments
- Operating temperature: 0 - 40°C
- Storage temperature: -20 to 60 °C
- Air humidity (non-condensing) 0 - 96%
System requirements
- Windows XP/Vista/7/8/10 or Mac OS 9 or higher or Linux
