Manhattan USB cable USB 2.0 USB-A plug, USB-A socket 20.00 m Black 150958
EAN:
Part number:
Item no:
Product type
USB cable
Cable specs
USB 2.0
Version
Cable extension
Connection type
USB-A to USB-A
Connections
USB-A plug
USB-A socket
Datasheet (PDF)
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
14 days return policy included

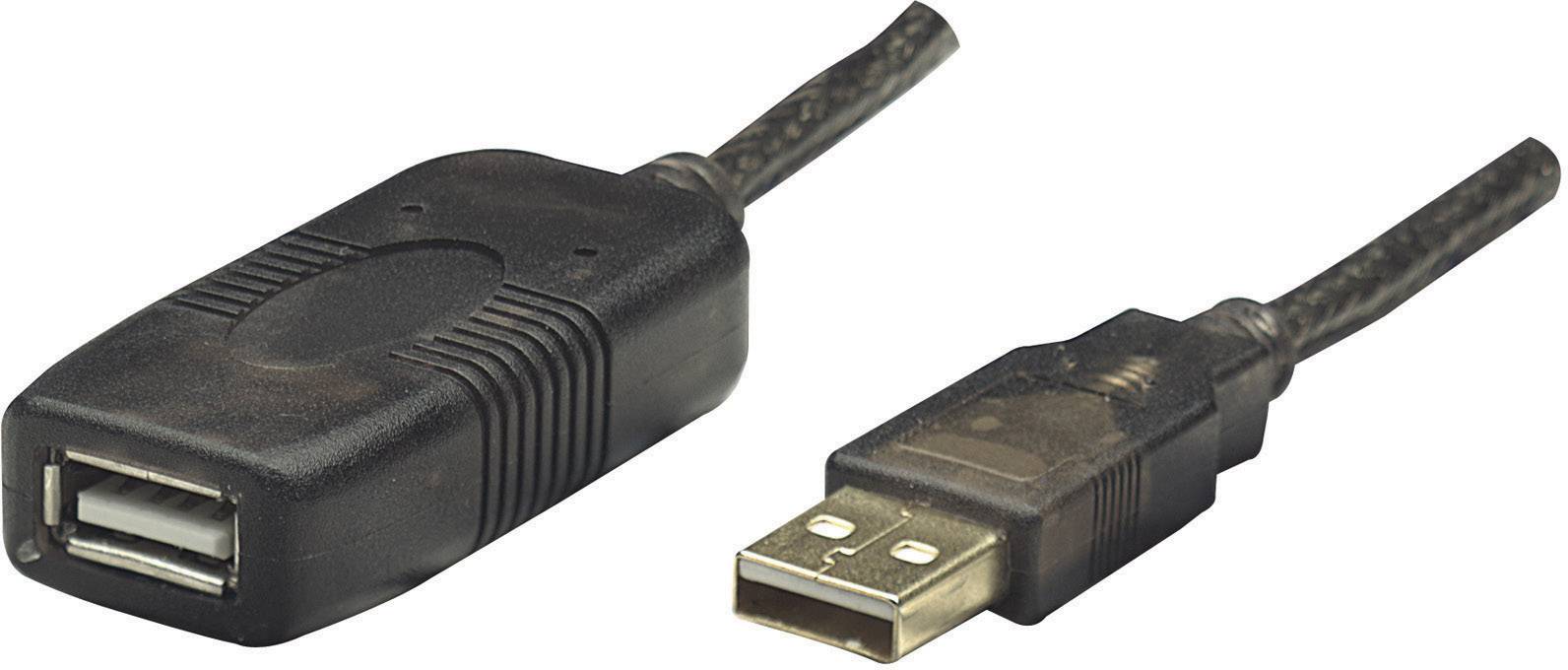

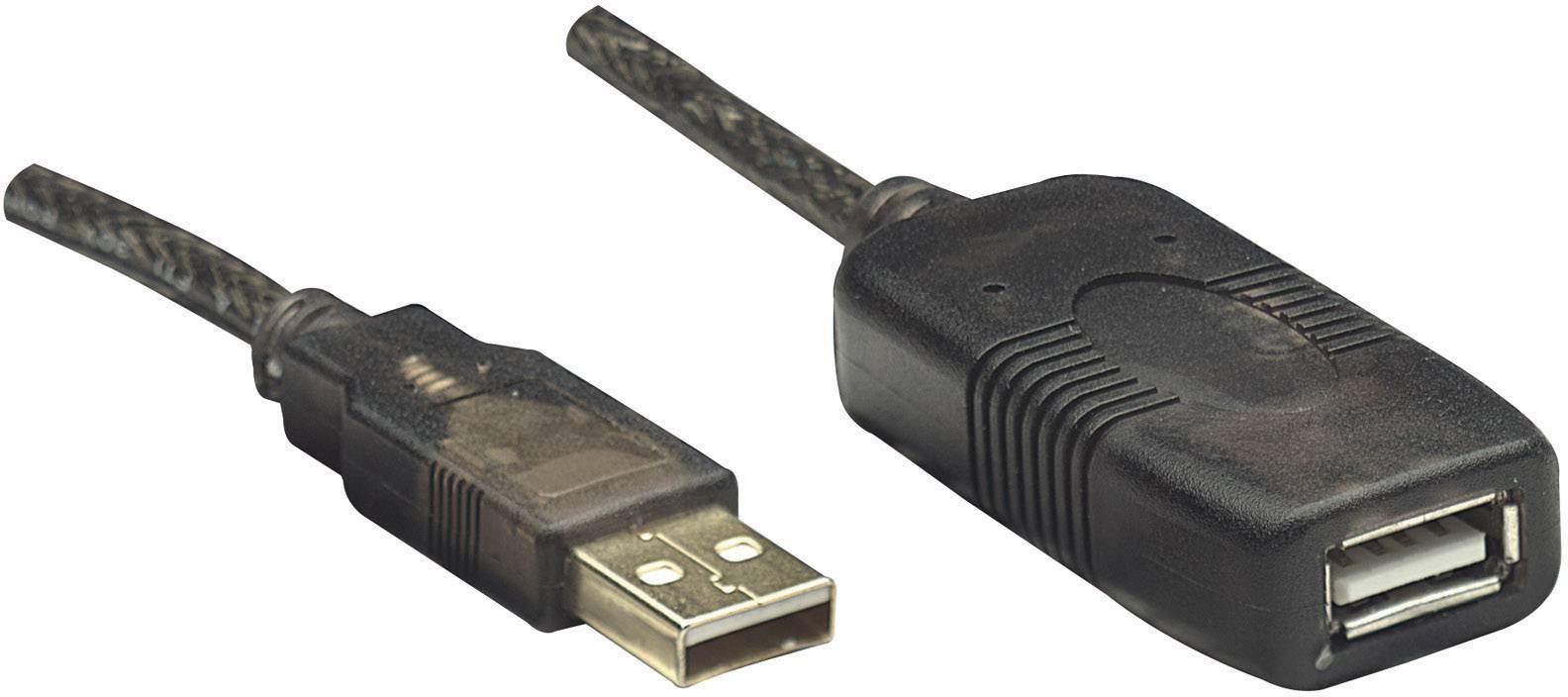

Manhattan Hi-Speed USB Active Extension Cable, Daisy-Chainable, A Male / A Female, 20 m (65 ft.)
Highlights & Details
- Extends and boosts the signal to any USB device — supports data transfer speeds up to 480 Mbps
- Built-in repeater helps maintain Hi-Speed USB signal quality, electrical and timing specifications
- Overcomes the 20m (65-ft.) USB distance limitation — ideal for connecting enclosures and other peripherals
- Daisy-chain two extensions for total distance of 40 m (131 ft.)
- Plug and play; Windows and Mac compatible; bus powered — requires no external power supply
Technical specifications
- Product type
USB cable
- Cable specs
USB 2.0
- Version
Cable extension
- Connection type
USB-A to USB-A
- Connections
USB-A plug
USB-A socket
- Factory colour
Black
- Cable length
20.00 m
- Shielding
Shielding film
28
- Cable design
Round
- Connector version
straight
Copper
- Transfer rate (max.)
480 MBit/s
- Max. power
2.5 W @ 5 V / 0.5 A
- Connection type
USB
- Type A
USB 2.0 connector A
- Type B
USB 2.0 port A
- Halogen-free
No
- No. of A connectors
1 x
- No. of B connections
1 x
- Cable use
USB 2.0
- Standards
CE
FCC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 986361 Manhattan USB cable USB 2.0 USB-A plug, USB-A socket 20.00 m Black 150958
User & Safety Instructions
User & Safety Instructions 986361 Manhattan USB cable USB 2.0 USB-A plug, USB-A socket 20.00 m Black 150958
Description
Easily overcome distance limitations to connect USB devices.
Use the Manhattan Hi-Speed USB Active Cable to connect a computer USB port to a USB device almost anywhere in the room. Daisy-chain 2 cable extensions to provide a convenient, 40m (131-ft.) connection. Manhattan Hi-Speed USB Active Cable with built-it repeater is fully-compliant with USB 1.1 and Hi-Speed USB specifications to help devices operate at maximum performance. Plug-and-play capability, Windows/Macintosh versatility and no external power or driver requirements help provide greater flexibility in computer and peripheral placement and office layout.
Use the Manhattan Hi-Speed USB Active Cable to connect a computer USB port to a USB device almost anywhere in the room. Daisy-chain 2 cable extensions to provide a convenient, 40m (131-ft.) connection. Manhattan Hi-Speed USB Active Cable with built-it repeater is fully-compliant with USB 1.1 and Hi-Speed USB specifications to help devices operate at maximum performance. Plug-and-play capability, Windows/Macintosh versatility and no external power or driver requirements help provide greater flexibility in computer and peripheral placement and office layout.
Features
- Standards and Certifications
- CE
- USB 2.0
- Ports
- Standard-A male
- Standard-A female
- General
- Throughput: 480 Mbps
- Bus powered
- Maximum length: 40 m (131 ft.)
- All USB-supported operating systems
- Physical
- Length: 20 m (65 ft.)
- Weight: 587 g (21 oz.)
Scope of delivery
- Hi-speed USB 2.0 active repeater extension cable
System requirements
- Supports all operating systems
