Buy MEAN WELL DCWN06B-05 DC/DC converter (module) 500 mA 6 W No. of outputs: 2 x Content 1 pc(s)

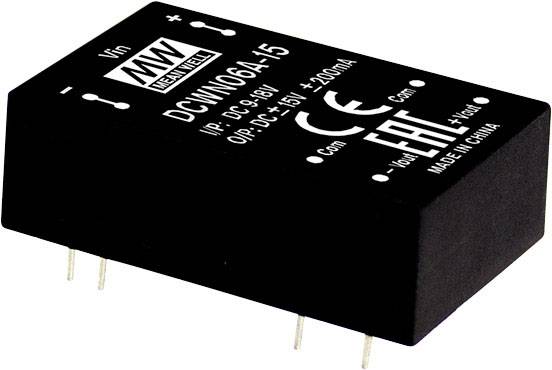

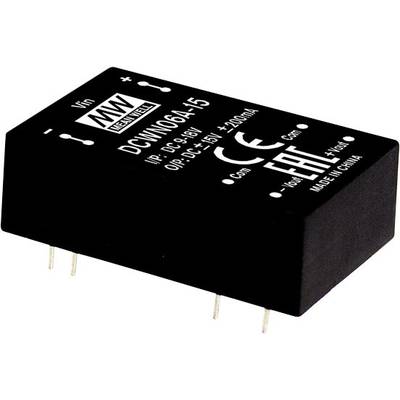

Black electronic module with markings for inputs and outputs. Includes details on voltage, current, and origin (China).

Datasheet (PDF)

34 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 9.24 / piece)

€

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter modules series DCWN06 DIP 24/DIL 24 Case Dual Output Input voltage ratio: 2:1 Power: 6 W regulated

In the DIP 24/DIL 24-housing
For direct PCB mounting
2:1 input voltage range
No minimum load required
Input/output insulation 3000 V DC
Protection: short circuit (continuously), overload and input voltage
Efficiency up to 87%
According to EN 55032 Class A transmitted without additional components

Technical specifications

Type: DCWN06B-05

Min. input voltage: 18 V DC

Input voltage (max.): 36 V DC

No. of outputs: 2 x

Max. output current: 500 mA

Output current (max.) - rounded: 500 mA

Efficiency (max.): 82 %

: 6 W

Insulation voltage: 3000 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +90 °C

Dim: (L x W x H) 31.8 x 20.3 x 10.2 mm

Height: 10.2 mm

Length: 31.8 mm

Width: 20.3 mm

Content: 1 pc(s)

Output voltage (max.): 5 V DC
-5 V DC

Weight: 12.5 g

Product type: DC/DC converter (module)

Documents & Downloads

Datasheet

Datasheet 2143437 MEAN WELL DCWN06B-05 DC/DC converter (module) 500 mA 6 W No. of outputs: 2 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143437 MEAN WELL DCWN06B-05 DC/DC converter (module) 500 mA 6 W No. of outputs: 2 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143437 MEAN WELL DCWN06B-05 DC/DC converter (module) 500 mA 6 W No. of outputs: 2 x Content 1 pc(s)

Description

MEAN CORRUGATED expands its range of 6 W DC/DC converters with single output of the DCWN06 series in the DIP24 casing. In addition to a wide input range of 2:1 and an extremely wide operating temperature range from -40 to +90 °C, you are with 3000 V DC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture.

This text is machine translated.
