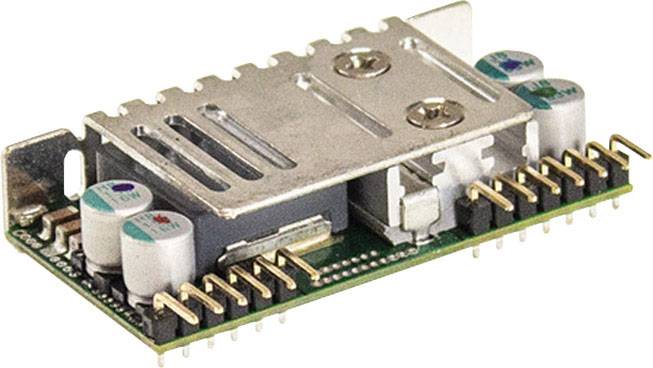

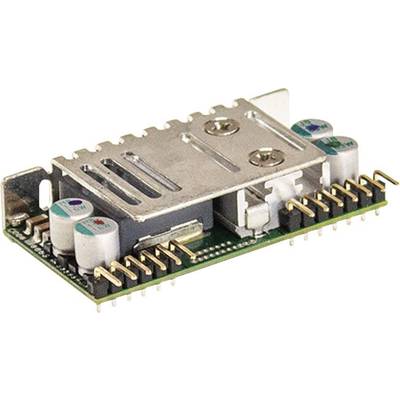

MEAN WELL NID100-15 DC/DC converter 6.5 A 97.5 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 16.80 / piece)
€
Only 4 Piece(s) available
Highlights & Details
MEANWELL DC/DC converter series NID 100 open-frame Single Output non-isolated power: 100 W
- Open design (open frame)
- Wide input voltage range
- High degree of efficiency up to 97%
- Switching on and off of the output voltage via remote signal
- For direct PCB mounting
- Protected against short circuit, overload, over voltage
- Cooling by free air convection
- Meets the EN 55032 ClassA without additional components
- This text is machine translated.
Technical specifications
- Type
NID100-15
- Min. input voltage
20 V DC
- Input voltage (max.)
53 V DC
- No. of outputs
1 x
- Max. output current
6.5 A
- Output current (max.) - rounded
6.5 A
- Efficiency (max.)
97 %
97.5 W
- Connection
Pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-30 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 50.8 x 27.5 x 12 mm
- Height
12 mm
- Length
50.8 mm
- Width
27.5 mm
- Content
1 pc(s)
- Output voltage (max.)
15 V DC
- Weight
35 g
- Product type
DC/DC converter
Documents & Downloads
Datasheet
Datasheet 2176615 MEAN WELL NID100-15 DC/DC converter 6.5 A 97.5 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2176615 MEAN WELL NID100-15 DC/DC converter 6.5 A 97.5 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 2176615 MEAN WELL NID100-15 DC/DC converter 6.5 A 97.5 W No. of outputs: 1 x Content 1 pc(s)
Description
Features
- Open design (open frame)
- Wide input voltage range
- High degree of efficiency up to 97%
- Switching on and off of the output voltage via remote signal
- For direct PCB mounting
- Protected against short circuit, overload, over voltage
- Cooling by free air convection
- Meets the EN 55032 ClassA without additional components
