Name: MEAN WELL SPB09C-03 DC/DC converter (module) 2 A 9 W No. of outputs: 1 x Content 1 pc(s)
Brand: MEAN WELL
SKU: 2143363
Availability: InStock

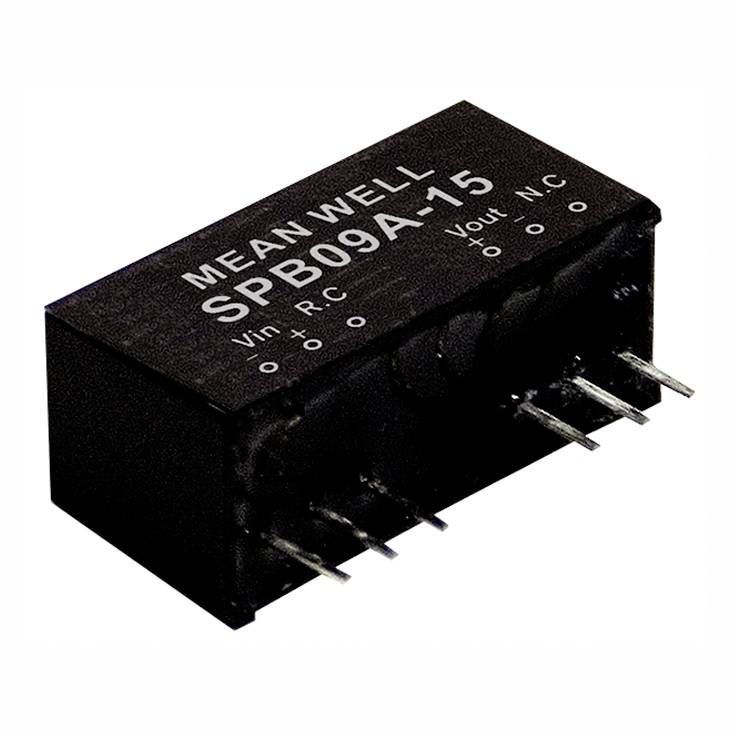

A rectangular black electronic component with the inscription 'MEAN WELL SPB09A-15' and four metal pins on the underside.

Image similar

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 15.99 / piece)

€ 15.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter modules SPB series 09 SIP8/SIL 8 Case Single Output Input voltage ratio: 2:1 Power: 9 W

In the SIP8/SIL8-casing
For direct PCB mounting
2:1 input voltage range
No minimum load required
Input/output insulation 1500 V DC
Protection: short circuit (continuously), overload and input voltage
Efficiency up to 89%
Remote ON/OFF control
This text is machine translated.

Technical specifications

Product type: DC/DC converter (module)

Type: SPB09C-03

Min. input voltage: 36 V DC

Input voltage (max.): 75 V DC

No. of outputs: 1 x

Max. output current: 2 A

Output current (max.) - rounded: 2 A

Efficiency (max.): 82 %

: 9 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +90 °C

Dim: (L x W x H) 24 x 9.6 x 11.2 mm

Height: 11.2 mm

Length: 24 mm

Width: 9.6 mm

RoHS-compliant: Yes

Output voltage (max.): 3 V DC

Weight: 5 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Output current (max.) - rounded

Min. input voltage

MEAN WELL SPB09C-03 DC/DC converter (module) 2 A 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143363

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

This article

75 V DC

2 A

36 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

MEAN WELL SPB09A-03 DC/DC converter (module) 2 A 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143328

Dispatches on Mon, 25 Jan 2027

Conrad Electronic

18 V DC

2 A

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

MEAN WELL SPB09A-05 DC/DC converter (module) 1.6 A 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143596

Fast track dispatch on Wed 14 Oct

3 Piece(s)Conrad Electronic

18 V DC

1.6 A

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 18.99^*

MEAN WELL SPB09A-12 DC/DC converter (module) 750 mA 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143458

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

18 V DC

750 mA

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

MEAN WELL SPB09A-15 DC/DC converter (module) 600 mA 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143459

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

18 V DC

600 mA

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 18.99^*

MEAN WELL SPB09A-24 DC/DC converter (module) 375 mA 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143460

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

18 V DC

375 mA

9 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

MEAN WELL SPB09B-03 DC/DC converter (module) 2 A 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143461

Dispatches on Thu 15 Oct

5 Piece(s)Conrad Electronic

36 V DC

2 A

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

MEAN WELL SPB09B-05 DC/DC converter (module) 1.6 A 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143597

Dispatches on Thu 15 Oct

32 Piece(s)Conrad Electronic

36 V DC

1.6 A

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

MEAN WELL SPB09B-12 DC/DC converter (module) 750 mA 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143685

Dispatches on Thu 15 Oct

3 Piece(s)Conrad Electronic

36 V DC

750 mA

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

MEAN WELL SPB09B-24 DC/DC converter (module) 375 mA 9 W No. of outputs: 1 x Content 1 pc(s)

Item no:2143416

Dispatches on Mon, 28 Dec 2026

Conrad Electronic

36 V DC

375 mA

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Documents & Downloads

Datasheet

Datasheet 2143363 MEAN WELL SPB09C-03 DC/DC converter (module) 2 A 9 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143363 MEAN WELL SPB09C-03 DC/DC converter (module) 2 A 9 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143363 MEAN WELL SPB09C-03 DC/DC converter (module) 2 A 9 W No. of outputs: 1 x Content 1 pc(s)

Features

In the SIP8/SIL8-casing
For direct PCB mounting
2:1 input voltage range
No minimum load required
Input/output insulation 1500 V DC
Protection: short circuit (continuously), overload and input voltage
Efficiency up to 89%
Remote ON/OFF control

Description

Features

In the SIP8/SIL8-casing
For direct PCB mounting
2:1 input voltage range
No minimum load required
Input/output insulation 1500 V DC
Protection: short circuit (continuously), overload and input voltage
Efficiency up to 89%
Remote ON/OFF control
