Buy MEAN WELL UHP-750-48 SMPSU 48 V DC 15.7 A 753.6 W

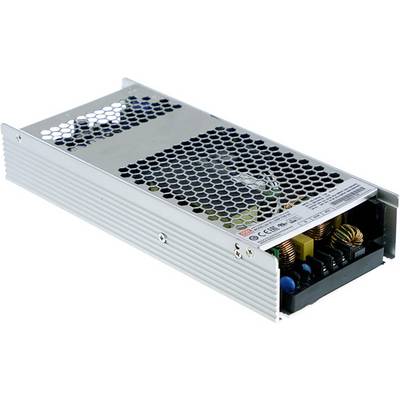

Metallic power supply unit with honeycomb ventilation. Open side reveals electronic components. CE mark and technical details visible on label.

Datasheet (PDF)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 184.87 / piece)

€

Report legal concerns

Highlights & Details

MEAN CORRUGATED switched-mode power supply series UHP-750U-bracket Single Output Power: 750 W with PFC

Output 48 V DC / 15.7 A
Power 753.6 W
Screw terminal

Technical specifications

Max. output current: 15.7 A

Output current (max.) - rounded: 15.7 A

Dim: (L x W x H) 237 x 100 x 41 mm

Height: 41 mm

Length: 237 mm

Width: 100 mm

Connection: Screw terminal

Type: closed

PSU features: Adjustable voltage output

Type: UHP-750-48

MTBF: 2799700 h

Input voltage (max.): 264 V AC
370 V DC

Min. input voltage: 90 V AC
127 V DC

Operating temperature (max.): +70 °C

Operating temperature (min.): -30 °C

Output voltage (max.): 48 V DC

No. of outputs: 1 x

: 753.6 W

Type: Pulsed

PFC: Yes

Weight: 1400 g

Product type: SMPSU

Documents & Downloads

Datasheet

Datasheet 2143308 MEAN WELL UHP-750-48 SMPSU 48 V DC 15.7 A 753.6 W

User & Safety Instructions

User & Safety Instructions 2143308 MEAN WELL UHP-750-48 SMPSU 48 V DC 15.7 A 753.6 W

Warranty Terms

Warranty Terms 2143308 MEAN WELL UHP-750-48 SMPSU 48 V DC 15.7 A 753.6 W

Description

With the newly recorded power supplies of the series UHP-750 rounds off the output power of the UHP MEAN CORRUGATED family on 1000 W upwards. The power supplies of the series UHP, narrow U-bracket design with a low profile of 31 mm. The series have a high degree of efficiency of up to 96% with a high operating temperature from -30 to +70 °C at simple air convection. The mean corrugated power supplies for peak loads a power reserve of 150% (100ms) of the rated current is available and can be used up to 5000 m height. The VersionUHP-350R has an additional DC-OK-signal and a redundancy function. The power supplies of the series UHP conform to international standards and are suitable for a wide range of industrial applications.
