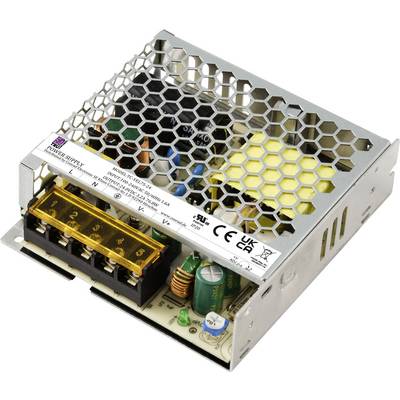

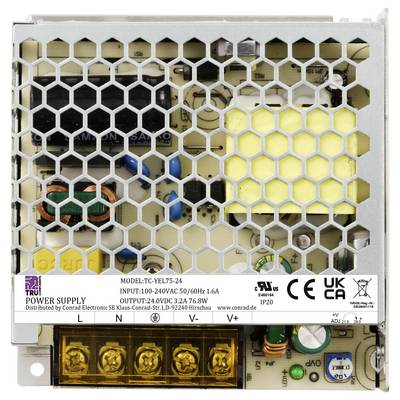

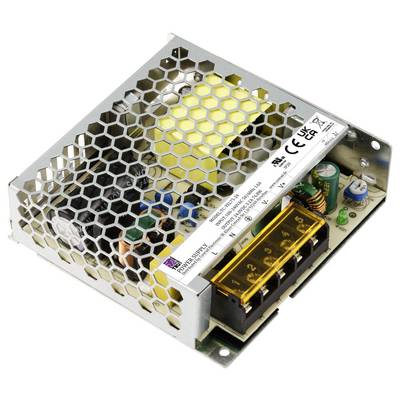

TRU COMPONENTS TC-13496732 Power supply unit 24 V DC 3.2 A 76.8 W
EAN:
Part number:
Item no:
Datasheet (PDF)
283 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€
Highlights & Details
Switching power supply
- Output 24 V DC/3.2 A;Power 76.8 W;Screw connector
Technical specifications
- Max. output current
3.2 A
- Output current (max.) - rounded
3.2 A
- Dim
(L x W x H) 99 x 97 x 30 mm
- Input frequency
50/60 Hz
- Efficiency to
88.5 %
- Tolerance (output voltage)
+/-1 %
- Consumption (standby)
0.3 W
- Protection class
I
- Height
30 mm
- Length
99 mm
- Width
97 mm
- Connection
Screw connector
- Type
closed
- Type
TC-YEL75-24
- Material (details)
Metal Housing
- Input voltage (max.)
240 V AC
- Min. input voltage
100 V AC
- Max. operating temperature (derating)
70 °C
- Min. operating temperature (derating)
-20 °C
- Output voltage (max.)
24 V DC
- No. of outputs
1 x
76.8 W
- Type
Enclosed Power Supply
- Ambient temperature
25 °C
- Residual ripple
150 mVpp
- Weight
250 g
- Plastic free packaging
Plastic-free packaging
- Product type
Power supply unit
Documents & Downloads
Datasheet
Datasheet 3374183 TRU COMPONENTS TC-13496732 Power supply unit 24 V DC 3.2 A 76.8 W
User & Safety Instructions
User & Safety Instructions 3374183 TRU COMPONENTS TC-13496732 Power supply unit 24 V DC 3.2 A 76.8 W
Description
Features
- Universal AC input/full range
- Over load protection
- Over voltage protection
- Short circuit protection
