MegaSat DiSEqC 4/1 Pro DiSEqC switch 4 (4 SAT/0 terrestrial) 1
EAN:
Part number:
Item no:
Datasheet (PDF)
22 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
3
4% = € 0.22
€ 4.81
5
6% = € 0.32
€ 4.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€
Highlights & Details

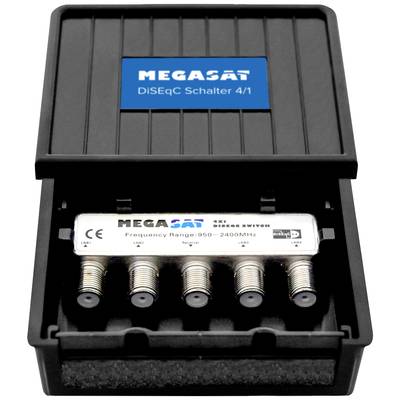

Megasat DiSEqC 4/1 switch Weather-proof casing
- For switching of 4 satellites at one receiver
- Incl. Weather protection housing
Technical specifications
- Inputs
4 F-connections
- Product type
DiSEqC switch
- Inputs (multiswitches)
4 (4 SAT/0 terrestrial)
- Participants
1
- SAT damping
3 dB
- Dim
(W x D) 100 mm x 77 mm
- Weight
105 g
- Operating voltage
230 V
- Attenuation (Sat./Terr.)
3 dB
- Max. frequency
950 MHz
- Min. frequency
2400 MHz
- Content
1 pc(s)
- Width
100 mm
- Depth
77 mm
- Features
Weather-proof
Documents & Downloads
Datasheet
Datasheet 2298514 MegaSat DiSEqC 4/1 Pro DiSEqC switch 4 (4 SAT/0 terrestrial) 1
User & Safety Instructions
User & Safety Instructions 2298514 MegaSat DiSEqC 4/1 Pro DiSEqC switch 4 (4 SAT/0 terrestrial) 1
Description
Switching of up to four satellites on one receiver
The Megasat DiSEqC switch 4/1 is used to switch up to 4 satellites for connection to a satellite receiver. The switching takes place via the DiSEqC-signal of the receiver.
The switch does not need an additional power supply and can also be used outdoors with the integrated weather protection housing.
This text is machine translated.
The Megasat DiSEqC switch 4/1 is used to switch up to 4 satellites for connection to a satellite receiver. The switching takes place via the DiSEqC-signal of the receiver.
The switch does not need an additional power supply and can also be used outdoors with the integrated weather protection housing.
This text is machine translated.
Features
- Switching command: DiSEqC 2.0
- including weather protection
- Temperature range: -40° C – 60° C
- Frequency range: 950 – 2400 MHz
- Insertion loss: 3 dB
- Connections: 4x F-connection input, 1x F-connection input.
Scope of delivery
- Installation guide.
