Name: Megger DCM1500S Clamp meter Calibrated to (DAkkS standards) CAT III 1000 V, CAT IV 600 V
Brand: Megger
SKU: 2743010

Highlights & Details

DCM1500S

CAT III 1000 V, CAT IV 600 V

Technical specifications

Voltage reading range DC (min.): 0.1 mV

Product type: Clamp meter

Voltage DC reading range (max.): 2000 V

V AC reading range (min.): 0.1 V

V AC reading range (max.): 1000 V

A DC reading range (max.): 600 A

Amperage reading range AC (max.): 600 A

Reading range - resistance: 0.1ohms - 600 kohm

Reading range - capacity: 0.1uF-1 mF

Frequency reading range: 0.01Hz-10 kHz

Temperature: -40 °C to +400 °C °C

Interfaces: Bluetooth®

: DAkkS standards

Reading category: CAT III 1000 V
CAT IV 600 V

Type: DCM1500S

Reading frequency: 0.01Hz - 10 kHz

Documents & Downloads

Datasheet

Datasheet 2743010 Megger DCM1500S Clamp meter Calibrated to (DAkkS standards) CAT III 1000 V, CAT IV 600 V

User & Safety Instructions

User & Safety Instructions 2743010 Megger DCM1500S Clamp meter Calibrated to (DAkkS standards) CAT III 1000 V, CAT IV 600 V

Description

The DCM1500S measures up to 2000 V DC and 1500 V AC (with PVHV cables) as well as 1500 A AC or DC and is Ideal for use in installation, maintenance, monitoringAnd testing of photovoltaic systems as well as of electrical standard AC or DC devices The measuring instrument is supplied with standard 4 mm cables as well as with the new HV-DC cable sets PVHV1 (4 mm) and PVHV2 (MC4PV). It has a large, clear display with background lighting and an automatic torch in the pliers, in order to simplify the use in poorly illuminated areas. With the free Megger LINK app, the measured values can be monitored remotely on a mobile device via the integrated Bluetooth®. This gives you a live trend graph and allows you to capture and log the values for later analysis.The intelligent memory function extends the standard memory function by alerting the user when the "held" reading increases by 50 counts or more. The Min/Max function enables the measurement of the maximum and minimum values over a certain period of time, whereby each value can be selected alternately. Other features include a high-frequency blocking filter, inrush current measurement, internal acquisition of measured values, a contactless voltage search mode and a manual DC amplifier zero position In addition to the voltage and current measurement, the DCM1500S offers the possibility of measuring resistance, diode, capacitance, temperature and frequency. The DCM1500S complies with the safety requirements of IEC 61010-1 and IEC/EN61010-2-033 CAT IV 600 V and CAT III 1000 V.

This text is machine translated.

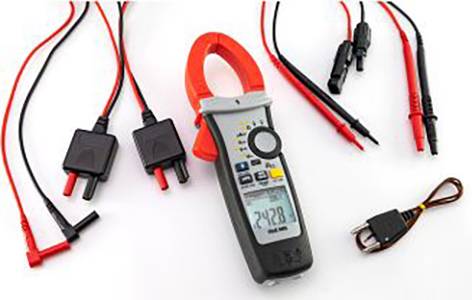

Scope of delivery

DCM1500S
DCM 4 mm electrode cable (including probes and alligator clips)
TP-90 thermocouple probe
PVHV1 cable (4 mm plug)
PVHV2 cable (MC4PV plug)
Fixed carry case
Battery 2 x AA

Description

The DCM1500S measures up to 2000 V DC and 1500 V AC (with PVHV cables) as well as 1500 A AC or DC and is Ideal for use in installation, maintenance, monitoringAnd testing of photovoltaic systems as well as of electrical standard AC or DC devices The measuring instrument is supplied with standard 4 mm cables as well as with the new HV-DC cable sets PVHV1 (4 mm) and PVHV2 (MC4PV). It has a large, clear display with background lighting and an automatic torch in the pliers, in order to simplify the use in poorly illuminated areas. With the free Megger LINK app, the measured values can be monitored remotely on a mobile device via the integrated Bluetooth®. This gives you a live trend graph and allows you to capture and log the values for later analysis.The intelligent memory function extends the standard memory function by alerting the user when the "held" reading increases by 50 counts or more. The Min/Max function enables the measurement of the maximum and minimum values over a certain period of time, whereby each value can be selected alternately. Other features include a high-frequency blocking filter, inrush current measurement, internal acquisition of measured values, a contactless voltage search mode and a manual DC amplifier zero position In addition to the voltage and current measurement, the DCM1500S offers the possibility of measuring resistance, diode, capacitance, temperature and frequency. The DCM1500S complies with the safety requirements of IEC 61010-1 and IEC/EN61010-2-033 CAT IV 600 V and CAT III 1000 V.

This text is machine translated.
