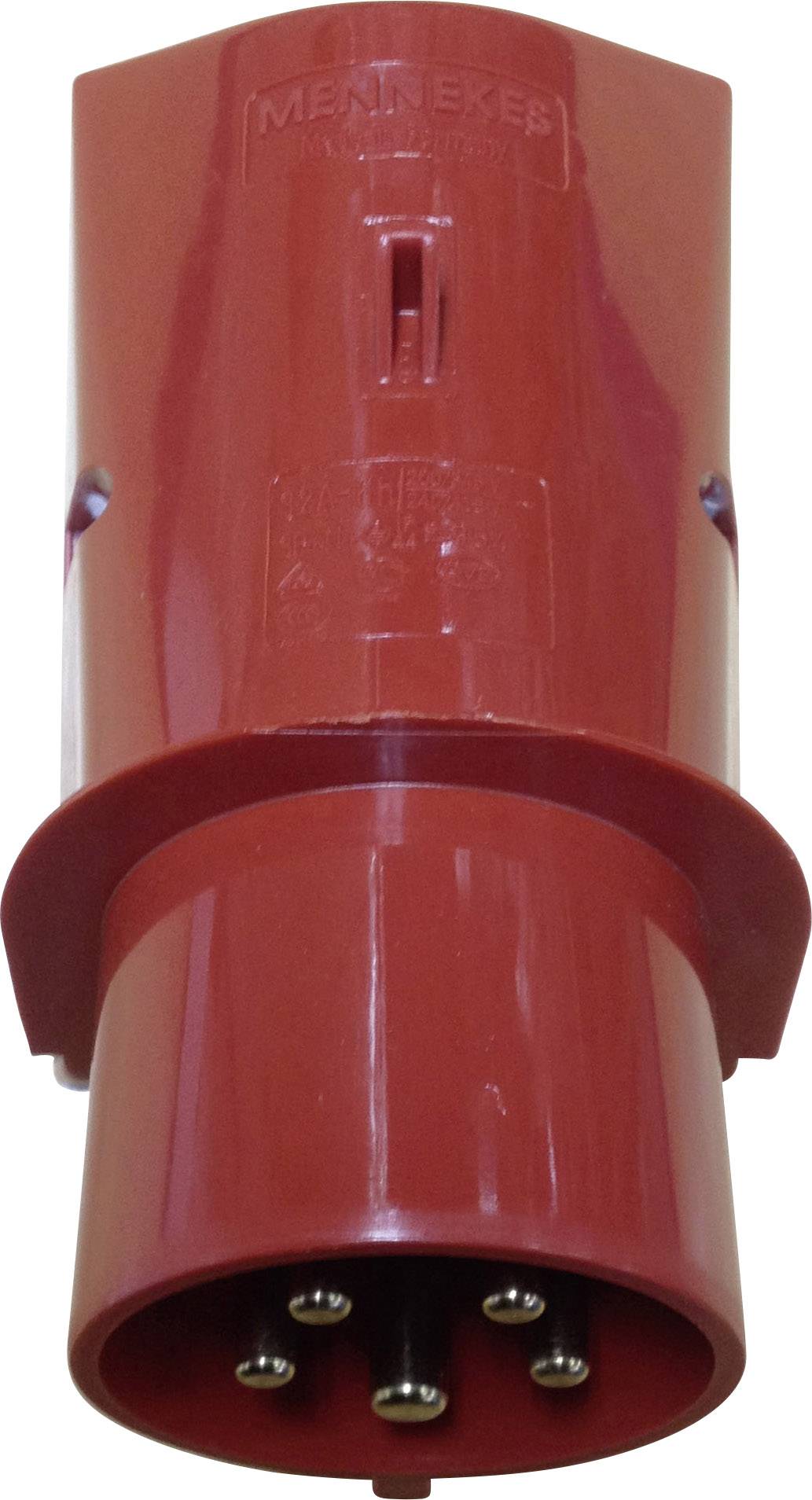

MENNEKES MENNEKES 354, Gerade, 400 V, Rot, IP44, 1 Stück(e) 354 CEE wall plug 32 A 5-pin 400 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 33.99 / piece)
€ 33.99
incl. VAT
14-day return policy included
Highlights & Details
CEE wall device plug 32 A 5P
- IP44
Technical specifications
- Product type
CEE wall plug
- Nominal voltage
400 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Type A
Screws
- Type B
CEE plug
- Cores
5
IP44
- Standards
Voltage according to EN 60309-2
- Factory colour
Red
- Dim
(L x W x H) 160 x 72.5 x 72.5 mm
- Length
160 mm
- Width
72.5 mm
- Height
72.5 mm
- Content
1 pc(s)
- Number of pins
5
- Weight
0.4
Surface mounted plug
5
Plastic
32 A
30
Screwed terminal
Right-angled
399-400 V
IP44
6 h
Red
400 V (50+60 Hz) red
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1299340 MENNEKES MENNEKES 354, Gerade, 400 V, Rot, IP44, 1 Stück(e) 354 CEE wall plug 32 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1299340 MENNEKES MENNEKES 354, Gerade, 400 V, Rot, IP44, 1 Stück(e) 354 CEE wall plug 32 A 5-pin 400 V 1 pc(s)
Description
Splash proof. Screw contact. Cable entry is also possible on the rear side. In the lower part of the casing is an imprint to deflect.
This text is machine translated.
This text is machine translated.
