Image similar
Mentor LED component Green 3 mm 17 mcd 70 ° 20 mA 2.2 V
Product type
LED component
Forward voltage U(F)
2.2 V
Forward current I(F)
20 mA
Casing
3 mm
Type
THT
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 3.49 / piece)
€ 3.49
incl. VAT
14-day return policy included
Highlights & Details

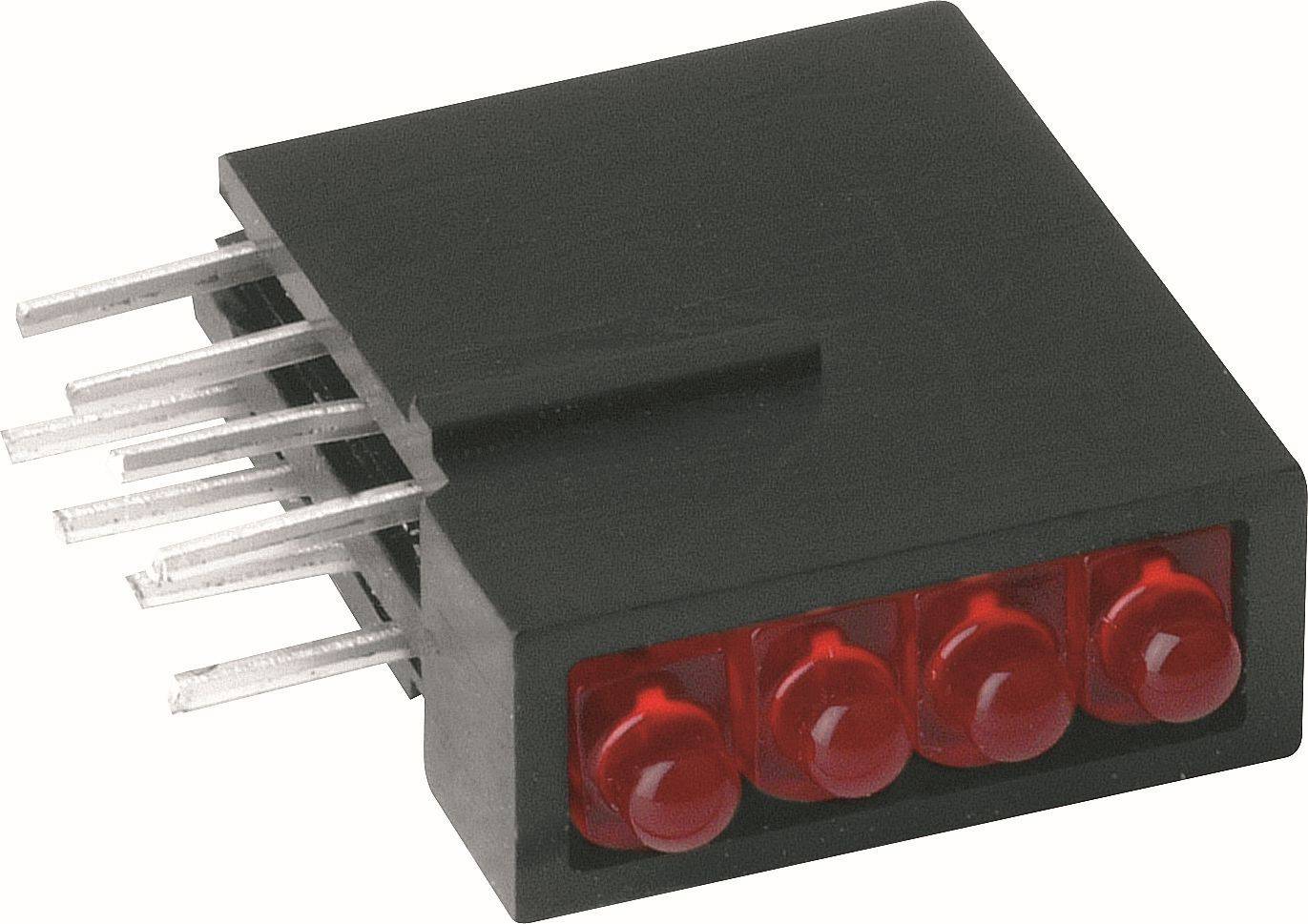

Multiple LED display
- THT
- 2 mm
- Connection wire
- Horizontal alignment
Technical specifications
- R=4-fold, RM=2.54
- Product type
LED component
- Type
Multiple LED display
- Factory colour
Green
- Forward voltage U(F)
2.2 V
- Forward current I(F)
20 mA
- Operating voltage
2.2 V
- Operating current
20 mA
- Casing
3 mm
- Type
THT
- Light intensity I(V)
17 mcd
- Wavelength
565 nm
568 nm
- Radiation angle
70°
- LED features
stackable
- Dim
(L x W x H) 15.1 x 5 x 11.8 mm
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Length
15.1 mm
- Width
5 mm
- Height
11.8 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3788297 Mentor LED component Green 3 mm 17 mcd 70 ° 20 mA 2.2 V
User & Safety Instructions
User & Safety Instructions 3788297 Mentor LED component Green 3 mm 17 mcd 70 ° 20 mA 2.2 V
Description
In the development of these components, the know-how of MENTOR which has been acquired over decades was used as a developer and supplier of components for industrial electronics. They can be used anywhere where light signals are and must attract attention to functions or operating conditions. The variety of components ranges from single and multiple displays and strips in various designs to lamp holders.
This text is machine translated.
This text is machine translated.
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
