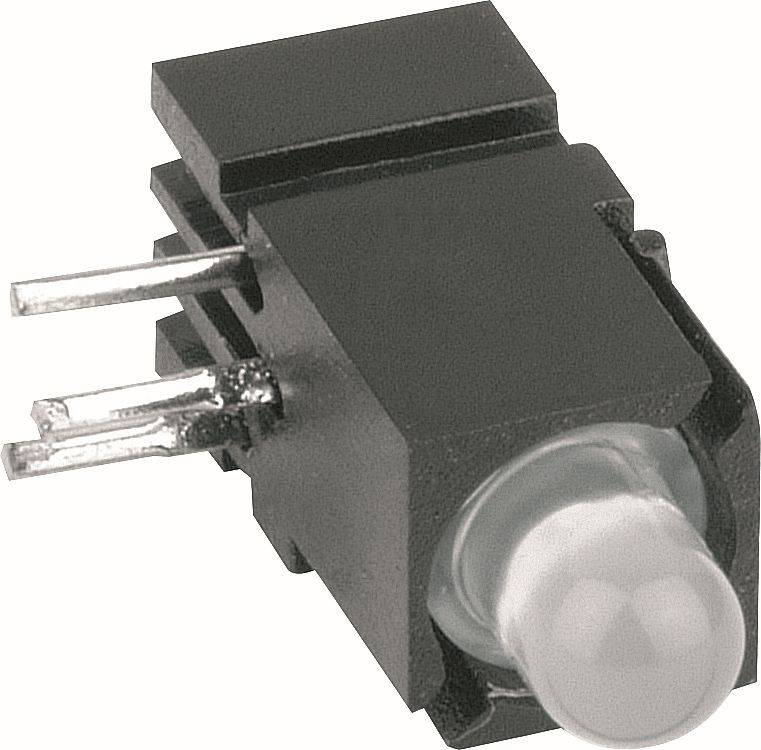

Mentor LED wired Red, Green 3 mm 50 mcd 60 ° 20 mA 2.2 V
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
2.2 V
Forward current I(F)
20 mA
Casing
3 mm
Type
THT
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14 days return policy included
Highlights & Details
Single LED display
- THT
- Connection wire
- Horizontal alignment
Technical specifications
- Product type
LED wired
- Type
Single LED display
- Factory colour
Red
Green
- Forward voltage U(F)
2.2 V
- Forward current I(F)
20 mA
- Operating voltage
2.2 V
- Operating current
20 mA
- Casing
3 mm
- Type
THT
- Light intensity I(V)
50 mcd
- Wavelength
568 nm
625 nm
- Radiation angle
60°
- LED features
2 LEDs
- Dim
(Ø x H) 3 mm x 9.85 mm
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Length
13.6 mm
- Width
5 mm
- Height
9.85 mm
- (Ø)
3 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3788291 Mentor LED wired Red, Green 3 mm 50 mcd 60 ° 20 mA 2.2 V
User & Safety Instructions
User & Safety Instructions 3788291 Mentor LED wired Red, Green 3 mm 50 mcd 60 ° 20 mA 2.2 V
Description
The development of these components was based on the know-how of MENTOR, which has been acquired over decades, as a developer and supplier of components for industrial electronics. They can be used anywhere where light signals are and must attract attention to functions or operating conditions. The variety of components ranges from single and multiple displays and strips in various designs to lamp holders.
This text is machine translated.
This text is machine translated.
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
