Metabo Cordless plunge saw Cutting depth (max.) (90°) 66 mm w/o battery, w/o charger 18 V
EAN:
Part number:
Item no:
Highlights & Details
- Cordless plunge saw with brushless motor for powerful immersion and precise saw cuts up to 66 mm (!) Depth
- Free of play, adjustable seat on the guide rails of Metabo and other manufacturers for exact cutting results
- LiHD high-performance battery packs and the Metabo brushless motor guarantee maximum traction power and sustained sawing
- Versatile use through variable speed for different materials
- Dual display for exact adjustment of cutting depth with or without guide rail
- With back cut function for exact transitions, 0°- and 45°-position can be adjusted for highest cut accuracy
- Close to the wall sawing up to 14 mm possible
- Saw with low dust thanks to the large-volume dust bag or by connecting a suction unit
- Automatic start of the connected suction device is possible by cordless control (accessory)
- Saw chip ejection aid for each working position individually rotated and locked
- An end brake stops the saw blade very quickly and increases safety
- Viewing window in the protective cover for exact cutting guidance
- Quick and easy change of the saw blade by lever for latching immersion position and spindle stop
- Practical parallel stop available as accessories (order no. 628029000)
- This text is machine translated.
Technical specifications
- Max. Cutting speed 43 m/s
- Max. Cutting depth with guide rail: 61 mm
- Measurement uncertainty K: 3 dB(A)
- Sound pressure level 88 dB(A)
- Sound power level (LwA): 99 dB(A)
- Cutting depth adjustable 0 - 66 mm
- Swivel range from/to: - 1 / + 46 °
- Product type
Cordless plunge saw
- Features
w/o battery
w/o charger
- Saw blade diameter
165 mm
- Bore Ø
20 mm
- Battery voltage
18 V
- Operating voltage
18 V
- Cutting depth (max.)
66 mm
- Cutting depth (max.) (45°)
43 mm
- Cutting depth (max.) (90°)
66 mm
- Weight, information
without rechargeable battery
- Content
1 pc(s)
- Technology
LiHD
- Idle speed
2250 - 5000 U/min
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551666 Metabo Cordless plunge saw Cutting depth (max.) (90°) 66 mm w/o battery, w/o charger 18 V
Warranty Terms
Warranty Terms 3551666 Metabo Cordless plunge saw Cutting depth (max.) (90°) 66 mm w/o battery, w/o charger 18 V
Description
Heavy-duty cordless circular saw for universal working on site. Aluminium base plate can be directly used on the guide rails from Metabo and other manufacturers. An end brake stops the saw blade very quickly and increases safety. Angle-exact oblique cut of up to 50 °, with practical resting point at 45 °. 0°-Position can be adjusted for highest cutting accuracy. Well visible cutting indicator for sawing according to markings. Hand grip with non-slip soft-grip surface for secure guiding. Extraction facility by connecting an all-purpose vacuum cleaner.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Saw blade "precision cut wood - classic" 165x20 Z42 WZ 5°

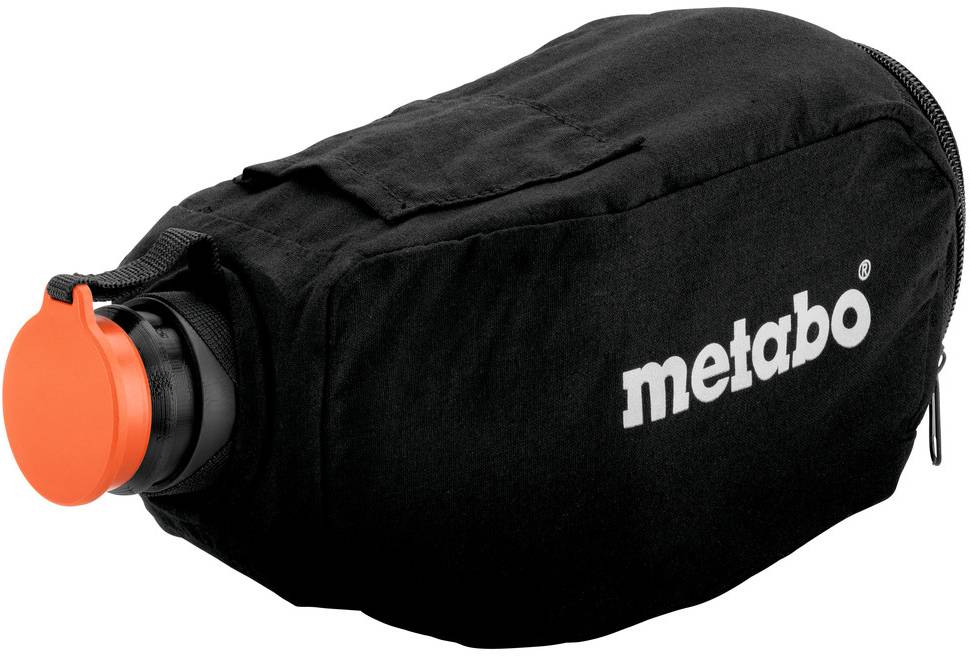

- Dust bag
- Fixed spanner
- Guide rail FS 160 (160 cm)
- MetaBOX 340
