Name: Metrel 20991569 MI 3299 Demonstration board 1 pc(s)
Brand: Metrel
SKU: 2536363
Availability: BackOrder

Measuring instrument with multiple connections and measurement ranges for high-voltage, capacitance, and insulation resistance measurements.

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 8,615.00 / piece)

€ 8,615.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

HV demo board

Simulation of insuation diagnostics situations; Includes all neccesary components; Used in demographics, training and by sales personnel.

Technical specifications

Product type: Demonstration board

Compatible with: Metrel

Type: MI 3299

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2536363 Metrel 20991569 MI 3299 Demonstration board 1 pc(s)

Description

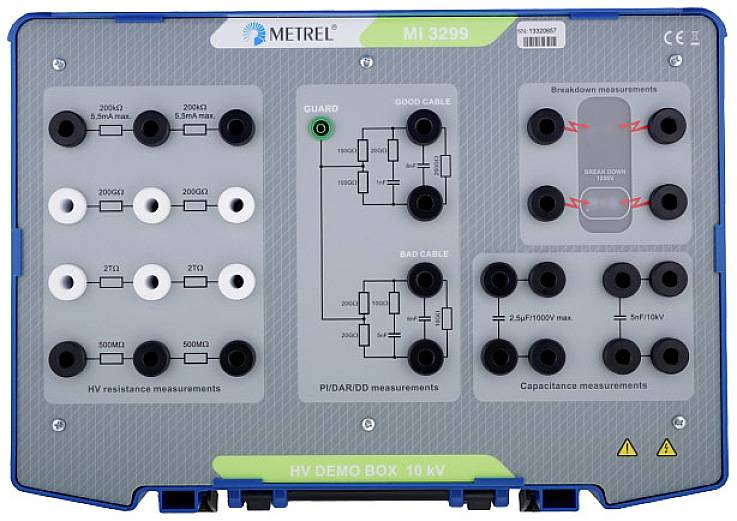

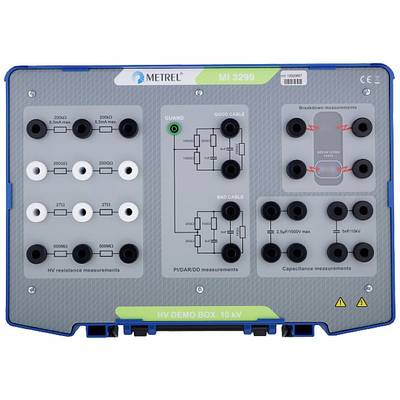

The MI 3299 HV Demo BOX 10 kV was developed for demonstration purposes of isolation diagnostics in high voltage applications. It simulates typical industrial insulation. It is equipped with high-quality resistors for different ranges, high-voltage capacitors and a discharge device to simulate a breakdown in gas environments. In addition, measurements of the polarization index (PI), dielectric discharge (DD) and dielectric absorption ratio (DAR) can be demonstrated. All of these features make the demo box suitable for simple insulation resistance testing for DC high voltage applications.

This text is machine translated.

Features

10 kV rated resistors with very low voltage coefficient.Resistive facade with 200 kΩ, 500 MΩ, 200 GΩ and 2 TΩ resistors.HV capacitors in 2.5 μF and 5 nF range.Built-in spark gap and gas discharge tube.Demonstration of insuation breakdown in gases is possible.Two models of insuation material (good and bad cables) enable the demonstration of real insuation behavior under high DC voltage.Demonstration box is put in the strong rugged case with handle for comfortable carrying.

Scope of delivery

HV demo BOX 10 kVHigh-voltage test leads, 2 pcs.User manualUser manual (in English) on CDCalibration certificate

Hints

Supplied with German license.

Description

Features

10 kV rated resistors with very low voltage coefficient.Resistive facade with 200 kΩ, 500 MΩ, 200 GΩ and 2 TΩ resistors.HV capacitors in 2.5 μF and 5 nF range.Built-in spark gap and gas discharge tube.Demonstration of insuation breakdown in gases is possible.Two models of insuation material (good and bad cables) enable the demonstration of real insuation behavior under high DC voltage.Demonstration box is put in the strong rugged case with handle for comfortable carrying.
