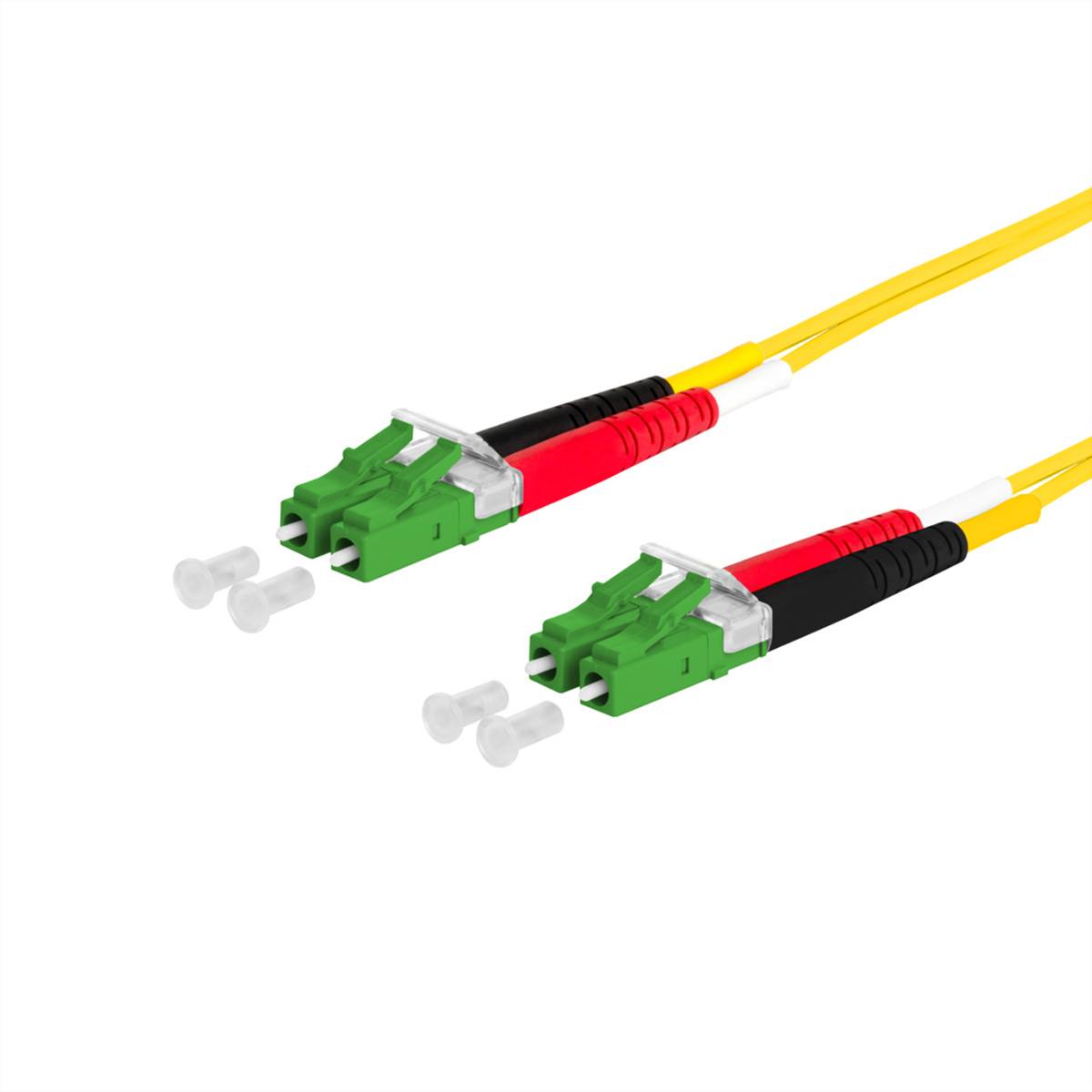

Metz Connect 151P1JAJA30E Fibreglass FO Cable 3 m Yellow Singlemode OS2
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- LC APC plug to LC APC plug
- Duplex-Cable
- Factory colour: Yellow
Technical specifications
- Connection 1: LCD
- Connection 2: LCD
- Product type
FO Cable
- Connection type
Fibreglass
- Type A
LC APC plug
- Type B
LC APC plug
Singlemode OS2
Duplex
- Halogen-free
Yes
- Cable length
3 m
- Factory colour
Yellow
- Content
1 pc(s)
- Connector version
straight
FO
- Cable use
FO
- Version
Cable
- UKCA
yes
- Operating temperature (T-T)
-10 - 60 °C
- Return loss
65 dB
- Quantity per pack
1 Stück(e)
- Full duplex
yes
- Insertion loss
0.3 dB
- Core diameter
9 µm
- Cladding diameter
125 µm
Documents & Downloads
Datasheet
Datasheet 3798042 Metz Connect 151P1JAJA30E Fibreglass FO Cable 3 m Yellow Singlemode OS2
User & Safety Instructions
User & Safety Instructions 3798042 Metz Connect 151P1JAJA30E Fibreglass FO Cable 3 m Yellow Singlemode OS2
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
Features
- SINGLE-MODE PATCH CABLE I-V(ZN)H E9/125 OS2
- Single-mode fiber OS2, E9/125 µm bend-insensitive according to IEC 60793-2-50 type B6_a and B6_b and G.657.A2 and B2 compatible with G.652.D
- Outside diameter 2.0 x 4.2 mm
- Casing material halogen-free with low smoke development LHF-FR, flame resistant
- Duplex cable as Zipcord (Figure 8) with two full charge conductors and aramide as strain relief
- 100% checked
- Maximum length 20 m.
Scope of delivery
- Metz Connect OpDAT Patch cable
