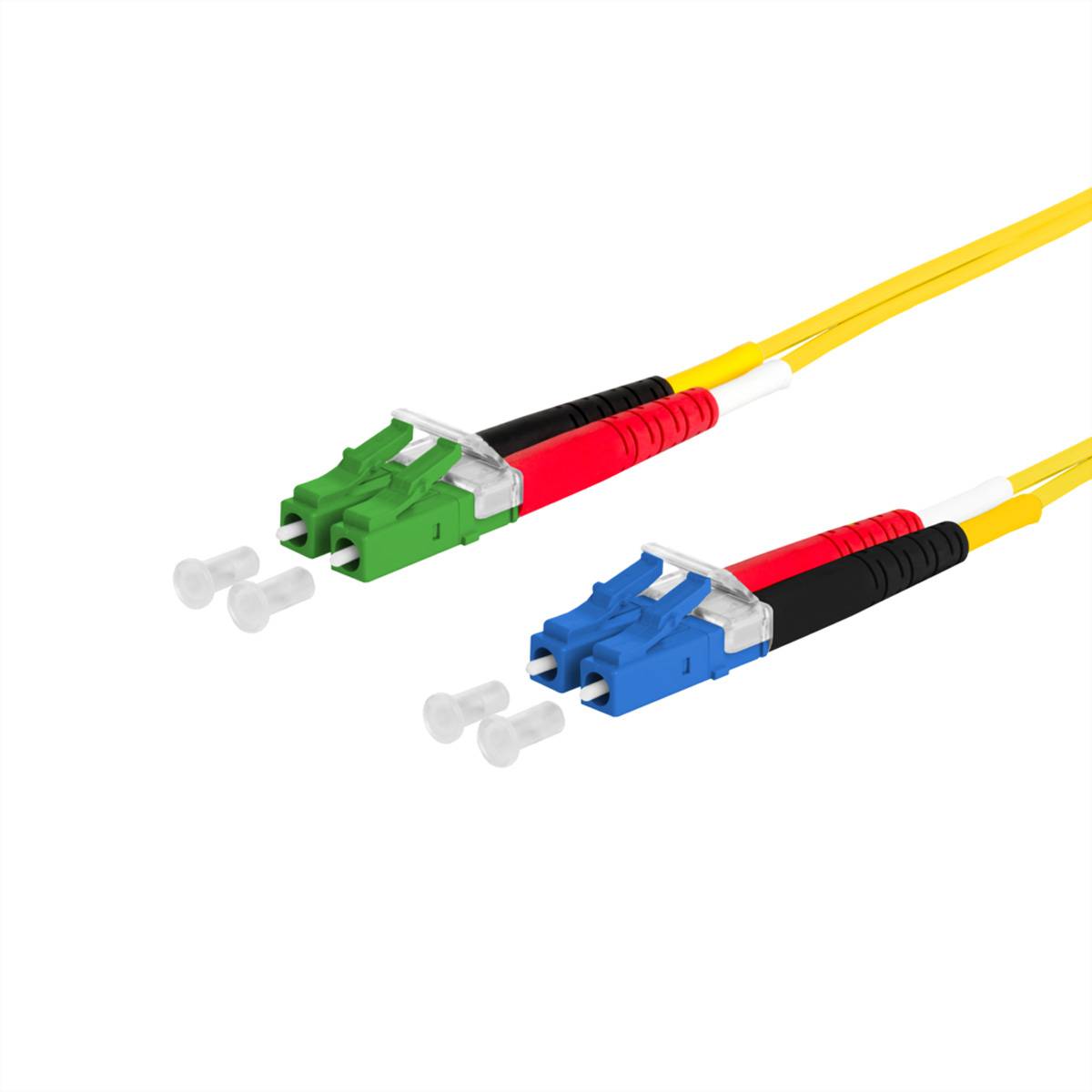

Metz Connect 151P1JOJA10E Fibreglass FO Cable 1 m Yellow Singlemode OS2
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- LC duplex plug to LC APC plug
- Duplex-Cable
- Factory colour: Yellow
Technical specifications
- Product group: Fiber optic cable
- Product type: Fibre optic patch cable OS2
- Colour: Yellow
- Length: 1 m
- Cable type: Duplex cable
- Fibre cross-section: Single-mode 9/125µm OS2
- LC/LC APC CONNECTIONS
- Page 1 Type of connection: LC
- Page 2 Type of connection: LC APC
- Insensitivity to bending: Yes
- Aramid strain relief: Yes
- Crossed: Yes
- Outer Ø cable 2.0 x 4.2 mm
- Cable LSOH: Yes
- Flame-resistant according to IEC 60332-1-2: Yes
- Low smoke in accordance with EN IEC 61034-2: Yes
- Halogen free according to EN IEC 60754-2: Yes
- Min. Operating temperature -10 °C
- Max. operating temperature: 60 °C
- Min. Storage temperature: -10 °C
- Storage temperature max. 60 °C.
- Weight: 14 g
- Packaging height 20 mm
- Package width 120 mm
- Packaging depth 120 mm
- Package weight: 0.02 kg
- Gross weight: 0.02
- Product type
FO Cable
- Connection type
Fibreglass
- Type A
LC duplex plug
- Type B
LC APC plug
Singlemode OS2
Duplex
- Halogen-free
Yes
- Cable length
1 m
- Factory colour
Yellow
- Content
1 pc(s)
- Connector version
straight
FO
- Cable use
FO
- Version
Cable
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3798047 Metz Connect 151P1JOJA10E Fibreglass FO Cable 1 m Yellow Singlemode OS2
User & Safety Instructions
User & Safety Instructions 3798047 Metz Connect 151P1JOJA10E Fibreglass FO Cable 1 m Yellow Singlemode OS2
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
Scope of delivery
- Metz Connect OpDAT Patch cable
