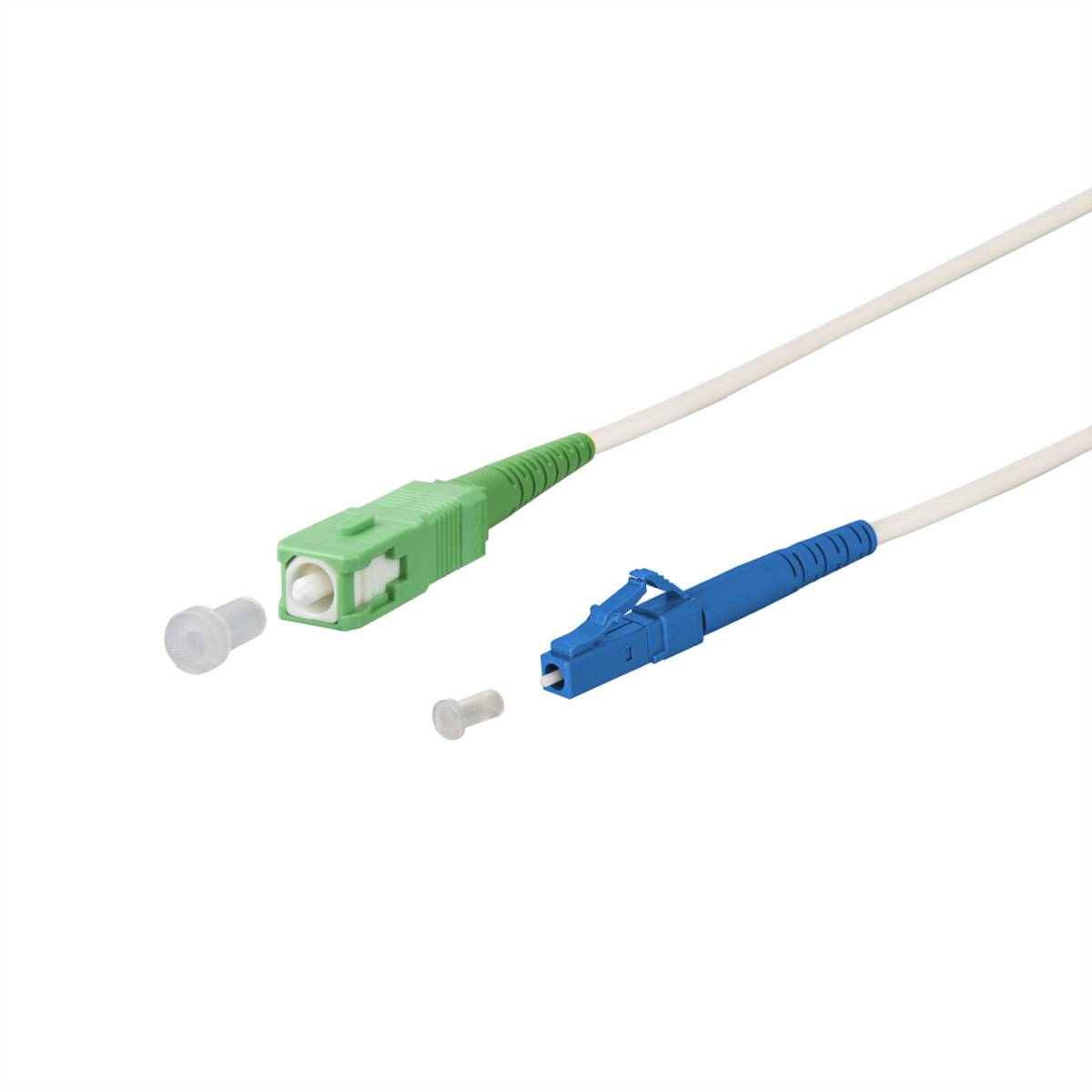

Metz Connect 151P7EAJO05E Fibreglass FO Cable 0.5 m White 9/125 µ Singlemode OS2
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- SC APC plug to LC plug
- Simplex-Cable
- Factory colour: White
Technical specifications
- Connection 1: SC
- Connection 2: LC
- CABLE TYPE I-V(ZN) H
- Product type
FO Cable
- Connection type
Fibreglass
- Type A
SC APC plug
- Type B
LC plug
- Fibre type
9/125 µ
Singlemode OS2
Simplex
- Halogen-free
Yes
- Cable length
0.5 m
- Factory colour
White
- Content
1 pc(s)
- Connector version
straight
- Cable design
Round
- Cable features
Simplex
FO
- Cable use
FO
- Version
Cable
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Cable diameter
2.8 mm
- Core diameter
9 µm
- Cladding diameter
125 µm
Documents & Downloads
Datasheet
Datasheet 3798094 Metz Connect 151P7EAJO05E Fibreglass FO Cable 0.5 m White 9/125 µ Singlemode OS2
User & Safety Instructions
User & Safety Instructions 3798094 Metz Connect 151P7EAJO05E Fibreglass FO Cable 0.5 m White 9/125 µ Singlemode OS2
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
Features
- SINGLE-MODE PATCH CABLE I-V(ZN)H1 E9/125 OS2
- Single-mode fiber OS2, E9/125 µm bend-insensitive according to IEC 60793-2-50 type B6_a and B6_b and G.657.A2 and B2 compatible with G.652.D
- Outer diameter 2.0 mm
- Casing material halogen-free with low smoke development LHF-FR, flame resistant
- 100 % checked for insertion and return loss
Scope of delivery
- Metz Connect OpDAT Patch cable
