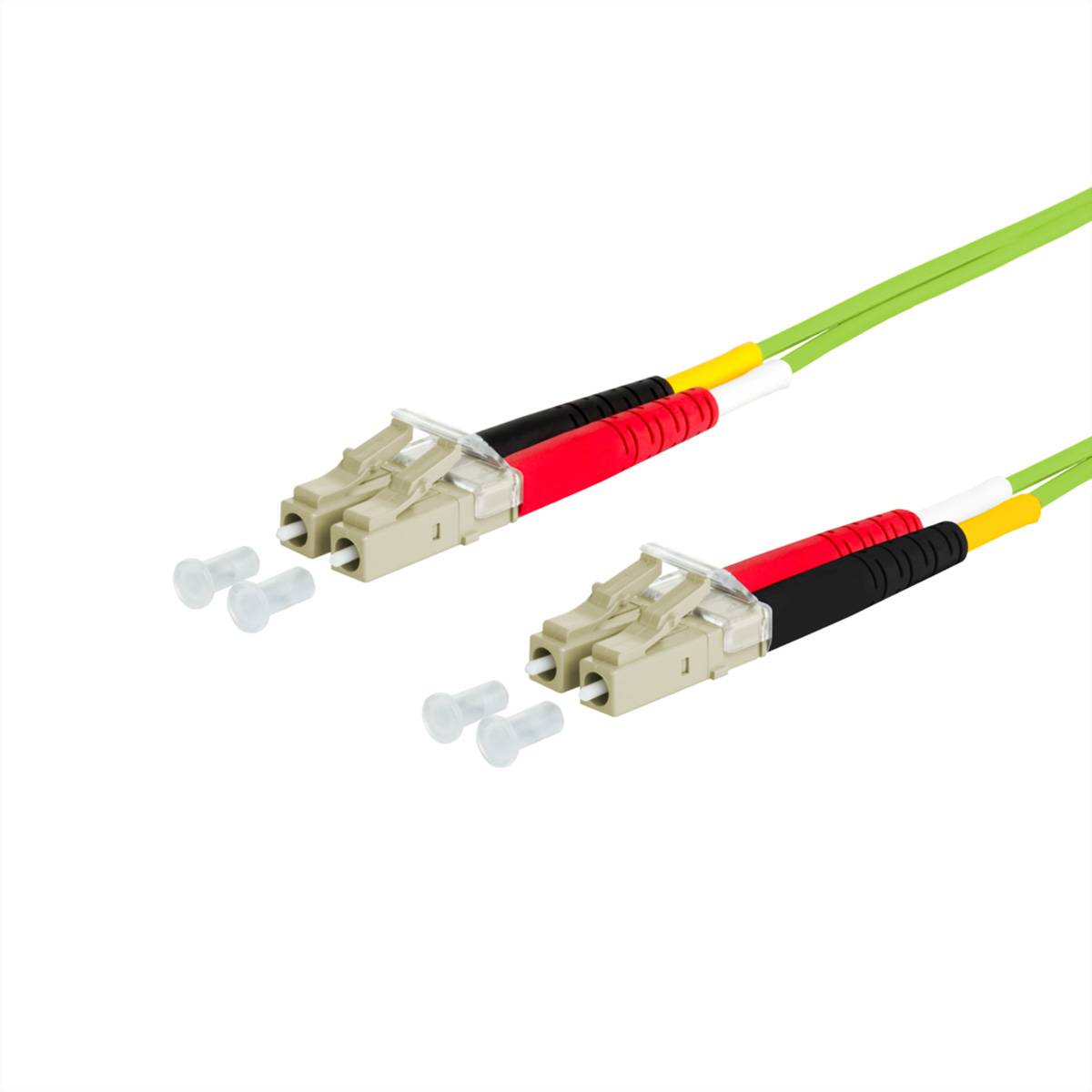

Metz Connect 151R1JOJO50E Fibreglass FO Cable 5 m Green 50/125 µ Multimode OM5
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- LC duplex plug to LC duplex plug
- Duplex-Cable
- Factory colour: Green
Technical specifications
- Product group: Fiber optic cable
- Product type: Fibre optic patch cable OM5
- Colour: green
- Length: 5 m
- Cable type: Duplex cable
- Fibre cross-section: Multimode 50/125µm OM5
- LC/LC connections
- Page 1 Type of connection: LC
- Page 2 Type of connection: LC
- Insensitivity to bending: Yes
- Aramid strain relief: Yes
- Crossed: Yes
- Outer Ø cable 2.0 x 4.2 mm
- Cable LSOH: Yes
- Flame-resistant according to IEC 60332-1-2: Yes
- Low smoke in accordance with EN IEC 61034-2: Yes
- Halogen free according to EN IEC 60754-2: Yes
- Max. Insertion loss < 0.4 dB
- Min Return loss 35 dB
- Min. Operating temperature -10 °C
- Max. operating temperature: 60 °C
- Min. Storage temperature: -10 °C
- Storage temperature max. 60 °C.
- Weight: 46 g
- Packaging height 20 mm
- Package width 200 mm
- Packaging depth 200 mm
- Package weight: 0,049 kg
- Gross weight: 0.049
- Product type
FO Cable
- Connection type
Fibreglass
- Type A
LC duplex plug
- Type B
LC duplex plug
- Fibre type
50/125 µ
Multimode OM5
Duplex
- Halogen-free
Yes
- Cable length
5 m
- Factory colour
Green
- Content
1 pc(s)
- Connector version
straight
- Cable design
Flat
- Cable features
Halogen-free
FO
- Cable use
FO
- Version
Cable
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3798123 Metz Connect 151R1JOJO50E Fibreglass FO Cable 5 m Green 50/125 µ Multimode OM5
User & Safety Instructions
User & Safety Instructions 3798123 Metz Connect 151R1JOJO50E Fibreglass FO Cable 5 m Green 50/125 µ Multimode OM5
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
Scope of delivery
- Metz Connect OpDAT Patch cable
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
