Name: Metz Connect METZ CONNECT Keystone AP-Gehäuse 16 Port Unequipped White
Brand: Metz Connect
SKU: 3799402

Metz Connect METZ CONNECT Keystone AP-Gehäuse 16 Port Unequipped White-0

Metz Connect METZ CONNECT Keystone AP-Gehäuse 16 Port Unequipped White-1

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Metz Connect 130861-1602KE control panel accessories

Number of connections: 16
Wall mounting
Material: Aluminium, steel, zinc
Modular
White

Technical specifications

: Unequipped

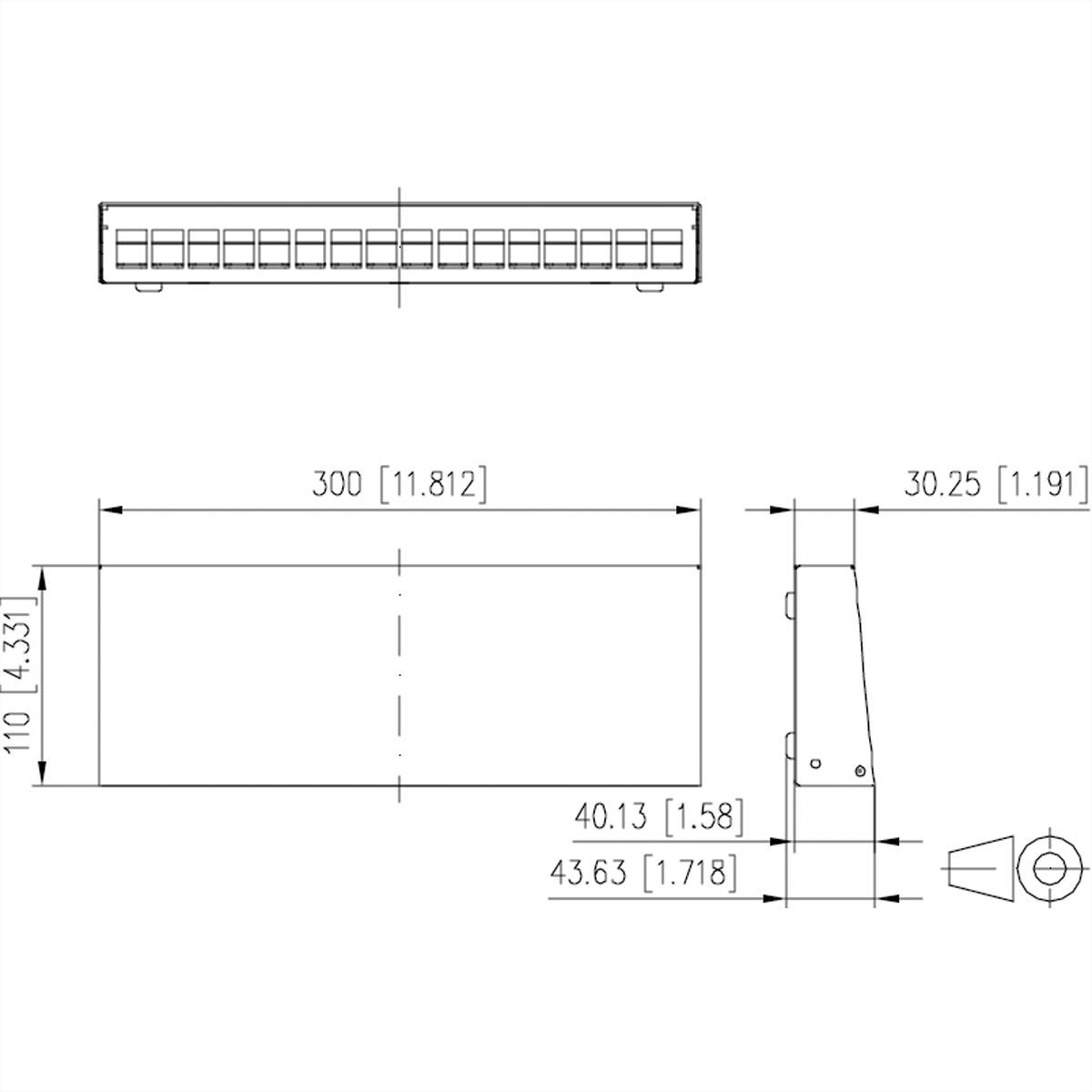

Width: 300 mm

Height: 43.6 mm

Depth: 110 mm

Factory colour: White

Cable length: 0 mm

Version: Connection cable

Keyboard layout: German, QWERTZ

Material: Aluminium
Steel
Zinc

UKCA: yes

Operating temperature (T-T): -40 - 70 °C

Ports quantity: 16

Quantity per pack: 1 Stück(e)

Modular: yes

Storage temperature (T-T): -40 - 70 °C

Package weight: 824 g

Documents & Downloads

Datasheet

Datasheet 3799402 Metz Connect METZ CONNECT Keystone AP-Gehäuse 16 Port Unequipped White

User & Safety Instructions

User & Safety Instructions 3799402 Metz Connect METZ CONNECT Keystone AP-Gehäuse 16 Port Unequipped White

Description

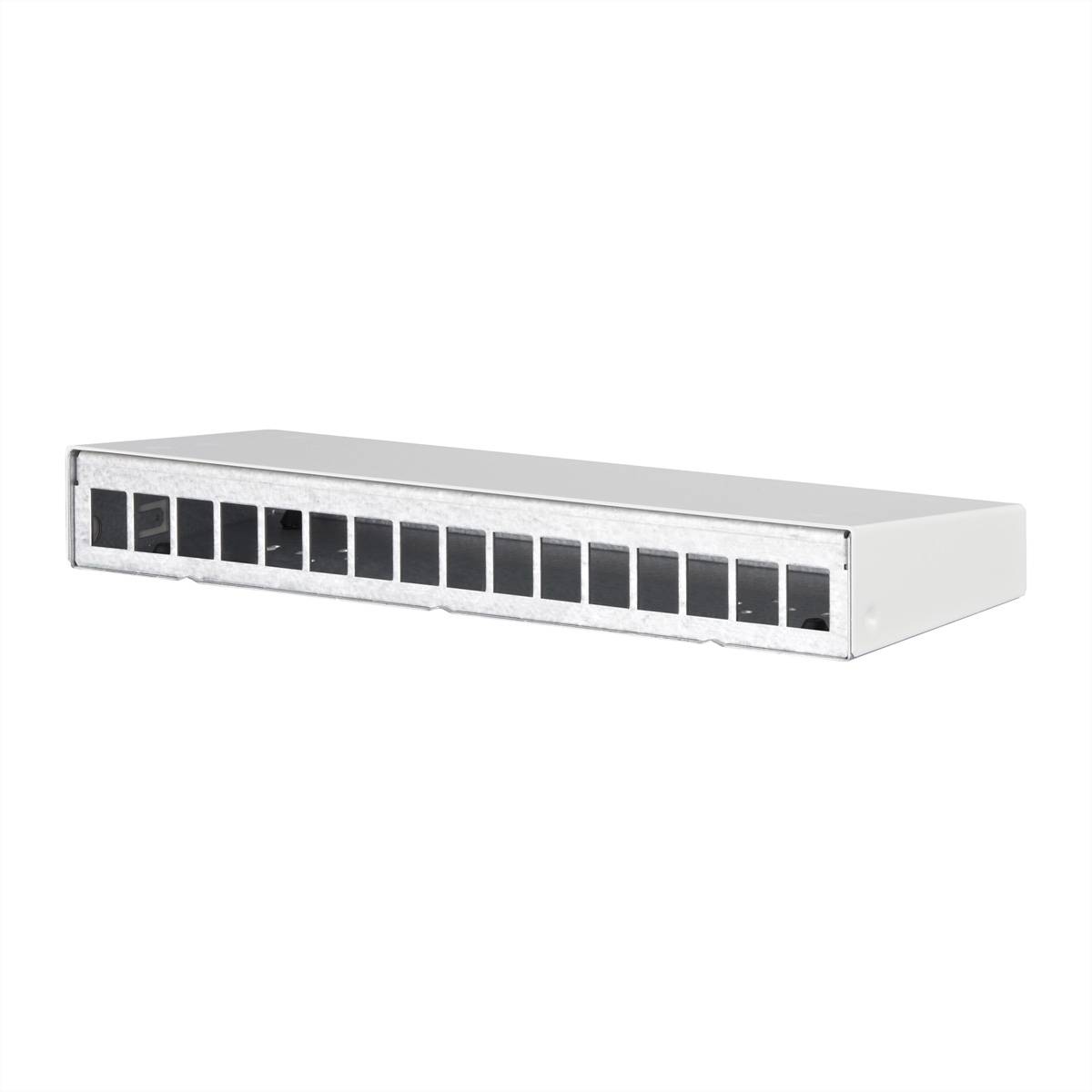

Keystone housing surface-mounted unfitted for single modules in keystone design stable steel-plate casing. Powder-coated housing top in RAL9010. Easily attach and remove the upper part of the casing through screw-free mounting Potential balancing possible by spade connector Additional cable strain-relief at the lower part of the casing with cable tie The casing is suitable for direct wall mounting, as desktop and with mounting rail adapters for rail mounting. Optional FO expansion kit for module and Keystone AP housing 130861-MSK-E

This text is machine translated.

Features

Keystone housing surface mount empty for single modules in Keystone design
Stable steel sheet housing - upper part of housing powder coated in RAL9010
Easily attach and remove the upper part of the casing through screw-free mounting
Potential equalization possible via flat plug - additional cable strain relief at the lower part of the casing with cable tie
The casing is suitable for direct wall mounting, as desktop and with mounting rail adapters for rail mounting
The bottom of the 3-port and 4-port versions can be removed. The additional attachment options are available here via a 60 mm hole track
Available as an option and can be used in all housings except 2 ports: FO expansion set for module and Keystone AP-housing 130861-MSK-E
Available as an option for housing 2x12 port: Strain relief for patch cable 130861-24ZE-E.
Variants: 2, 3, 4, 6, 8. 12, 16 and 2x12 ports

Scope of delivery

Metz Connect Keystone AP-housing 16 port pure white RAL9010

Description

Features

Keystone housing surface mount empty for single modules in Keystone design
Stable steel sheet housing - upper part of housing powder coated in RAL9010
Easily attach and remove the upper part of the casing through screw-free mounting
Potential equalization possible via flat plug - additional cable strain relief at the lower part of the casing with cable tie
The casing is suitable for direct wall mounting, as desktop and with mounting rail adapters for rail mounting
The bottom of the 3-port and 4-port versions can be removed. The additional attachment options are available here via a 60 mm hole track
Available as an option and can be used in all housings except 2 ports: FO expansion set for module and Keystone AP-housing 130861-MSK-E
Available as an option for housing 2x12 port: Strain relief for patch cable 130861-24ZE-E.
Variants: 2, 3, 4, 6, 8. 12, 16 and 2x12 ports
