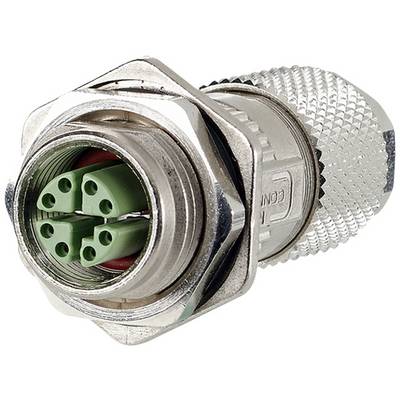

Metz Connect MMF881A315-0001 Connector Socket Total number of pins: 8 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
M12 socket X-coded IP67, field mountable with flange
- Cable connectorM12 cable connectorM12 plug connectorM12 X-codedX-codedBTR Netcom
Technical specifications
- Connector type
Socket
- Total no. of pins
8
- Connection
M12 socket
- Factory colour
Silver (metallic)
- Content
1 pc(s)
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Contact material
Copper
- Case material
Diecast zinc
- Height
16.80 mm
- Length
49 mm
- Width
16.80 mm
IP67
- Feature
shielded
X-coded
- Manufacturer part #
MMF881A315-0001
- Type
MMF881A315-0001
- Number of pins
8
- Weight
0.038
- Product type
Connector
Documents & Downloads
Datasheet
Datasheet 2860668 Metz Connect MMF881A315-0001 Connector Socket Total number of pins: 8 1 pc(s)
Description
8-pin field mountable M12 Cat.6, A socket according to IEC/PAS 61076-2-109 with mounting flange, 10 GBit suitable according to IEEE 802.3an, connection from AWG 26/1 - 22/1, AWG 26/7 - 22/7 possible, full wire Cu conductor diameter 0.4 - 0.64 mm, stranded copper wire diameter 0.48 - 0.76 mm, wire diameter with insulation up to 1.6 mm, Cable sheath from 6.0 to 9.7 mm, consists of only 2 parts, simplest construction - without connecting special tools, industrial zinc die-cast housing, suitable for applications in the railway industry according to data sheet.
This text is machine translated.
