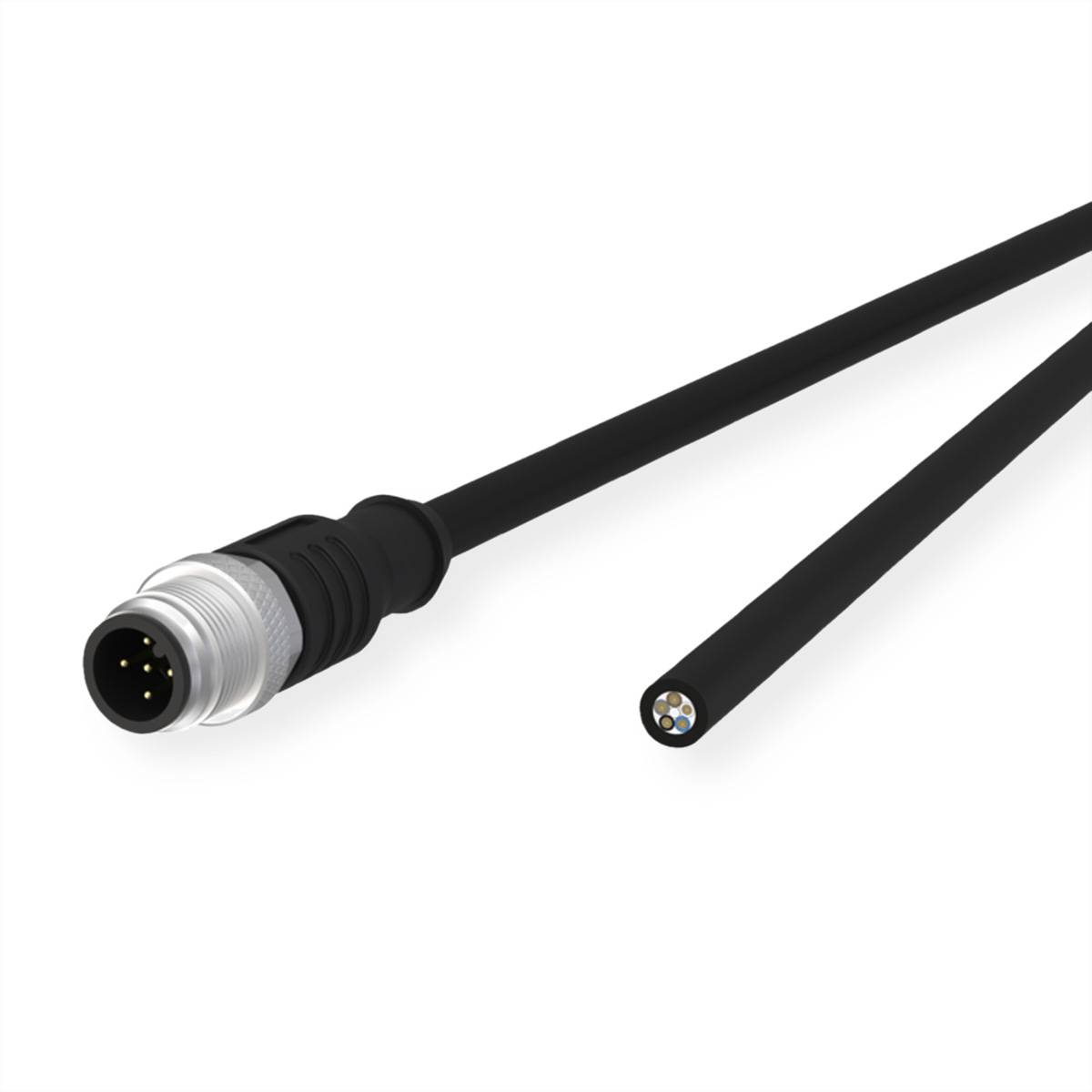

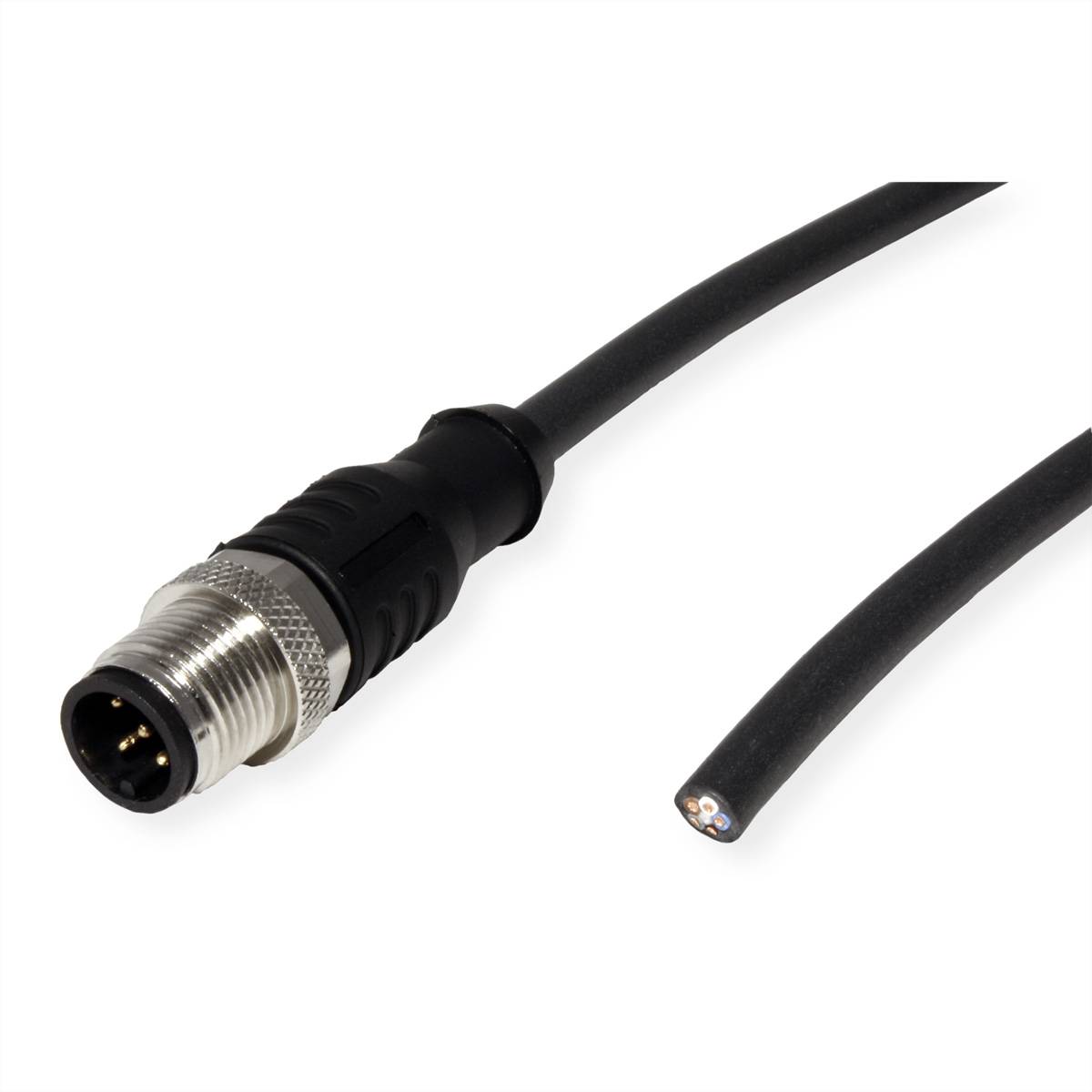

Name: Metz Connect sensor/actuator cable, M12-ST A-coded, straight-free end, unshielded, 5-pin, PUR, 10 m
Brand: Metz Connect
SKU: 3798453

Metz Connect sensor/actuator cable, M12-ST A-coded, straight-free end, unshielded, 5-pin, PUR, 10 m-0

Metz Connect sensor/actuator cable, M12-ST A-coded, straight-free end, unshielded, 5-pin, PUR, 10 m-1

Metz Connect sensor/actuator cable, M12-ST A-coded, straight-free end, unshielded, 5-pin, PUR, 10 m-2

Metz Connect sensor/actuator cable, M12-ST A-coded, straight-free end, unshielded, 5-pin, PUR, 10 m-3

Metz Connect sensor/actuator cable, M12-ST A-coded, straight-free end, unshielded, 5-pin, PUR, 10 m-4

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Metz Connect 142MDA10100 Sensor-/Actuator cable 10 m M12 Black

Flexible, silicone and halogen-free control cable
resistant to chemicals, hydrolysis and microbes
Drag chain insert
Spark-proof
Use in robot technology, machine tools

Technical specifications

Product type: Cable

Weight: 0.381

Type: Kabel

Factory colour: Black

Cable colour: Black

Cable length: 10 m

Version: Connection cable

Cable use: Current

Coding: A

Connection: Plug

Packaging type: Bag

No. of pins: 5

Features: A-coded

Thread type connection side: M12

Connection type: M12

: CAT 6A

Outside Ø: 5.2 mm

Cable Ø: 5.2 mm

Max. temperature: 90 °C

Min. temperature: -50 °C

UKCA: yes

Quantity: 1

Number of poles: 5

Documents & Downloads

Datasheet

Datasheet 3798453 Metz Connect sensor/actuator cable, M12-ST A-coded, straight-free end, unshielded, 5-pin, PUR, 10 m

User & Safety Instructions

User & Safety Instructions 3798453 Metz Connect sensor/actuator cable, M12-ST A-coded, straight-free end, unshielded, 5-pin, PUR, 10 m

Description

Flexible, silicone and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag chain insert is at a bending radius of min. 10xd is possible. Due to its welding spark resistance, the wire is very well suitable for flexible use in the field of robot technology, machine tools and chip-repelling production. The cables meet the requirements of UL and CSA (UL10493/20549, cULus). Special properties: Flame-resistant, seawater resistant, recyclable, LABS-free, RoHS-compliant, acid and alkali-resistant, ozone resistant, UV resistant, hydrolysis-resistant, drag chains capable, torsional capable, welding spark-resistant, halogen-free, silicon-free, oil resistant.

This text is machine translated.
