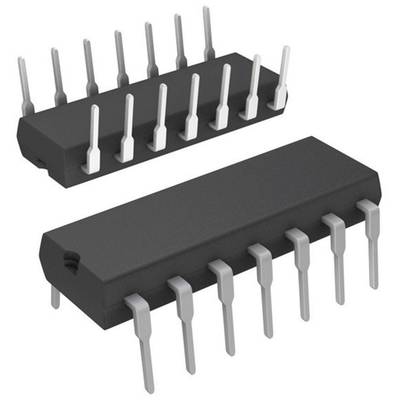

Microchip Technology MCP42010-I/P Data acquisition IC - Digital potentiometer linear Non-permanent PDIP 14
EAN:
Part number:
Item no:
Enclosure
PDIP 14
Resistance characteristic
linear
Mounting type
Through-hole
Product type
Data acquisition IC - Digital potentiometer
Type
MCP42010-I/P
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€
Technical specifications
- Type
MCP42010-I/P
- Enclosure
PDIP 14
- Manufacturer
Microchip Technology
- Manuf. code
MCP
- Memory type
Non-permanent
- Interfaces
SPI™
- Configuration
Potentiometer
- No. of clips
256
- Resistance characteristic
linear
- Resistance
10 kΩ
- Resistance (wiper contact)
73 Ω
- Supply voltage (min.)
2.7 V
- Supply voltage (max.)
5.5 V
- Tolerance
-20 %
+20 %
- Temperature coefficient
800 ppm/°C
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+125 °C
- No. of circuits
2
- Mounting type
Through-hole
- Product type
Data acquisition IC - Digital potentiometer
Documents & Downloads
Datasheet
Datasheet 1083205 Microchip Technology MCP42010-I/P Data acquisition IC - Digital potentiometer linear Non-permanent PDIP 14
User & Safety Instructions
User & Safety Instructions 1083205 Microchip Technology MCP42010-I/P Data acquisition IC - Digital potentiometer linear Non-permanent PDIP 14
Description
Integrated circuits from leading manufacturers. Please read our extensive documentation, which is free to download.
