Mobotix Expansion module Zubehör Netzwerk MX-OPT-IO3-INT
EAN:
Part number:
Item no:
Technical specifications
- Product type
Expansion module
- Weight
0.044
- Factory colour
Grey
- Suitable for
MX-Bus-IO-Module
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1973414 Mobotix Expansion module Zubehör Netzwerk MX-OPT-IO3-INT
Description

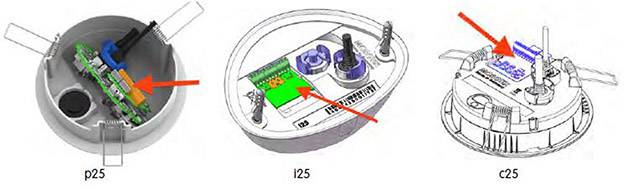

Expansion module for the x25 indoor cameras (mounted on the rear).
This text is machine translated.
This text is machine translated.
Features
- Not suitable for x26 indoor cameras

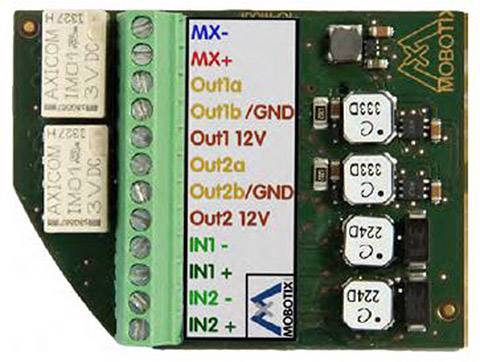

- for connecting external sensors (e.g. Door and window contacts) and switching of external devices (e.g. Relay with lamps and motors)
- Two inputs (galvanically separated): 0 to 48 V AC/DC
- Two outputs: 2x potential-free (contact load capacity max. 30 W or 1 A or 48 V AC/DC) or 2x 12 V DC (max. 50 mA per output).
Scope of delivery
- Expansion module
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
