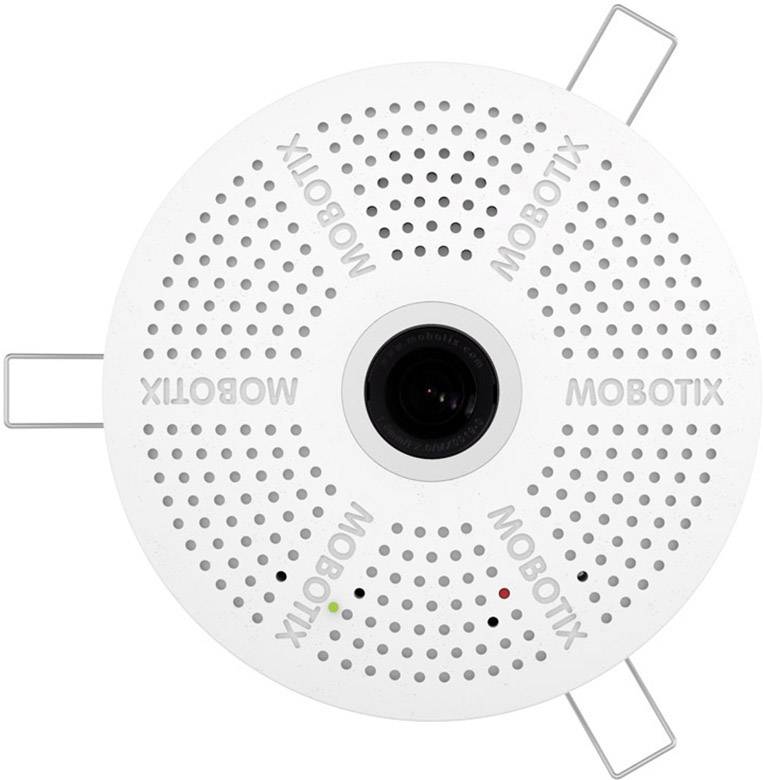

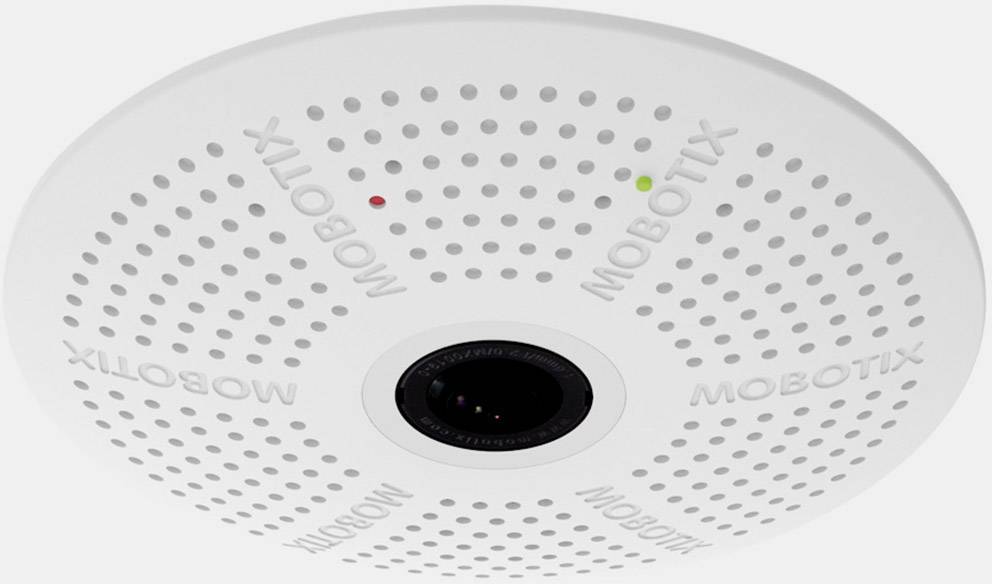

Mobotix Mx-c26B-AU-6D016 LAN IP CCTV camera 3072 x 2048 p
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LAN IP-Dome camera;3072 x 2048 p;Mobotix;Mx-c26B-AU-6D016Indoors
- Resolution 6 MP
- With B016 Lens
- 180°/360° Day, AUDIO
- This text is machine translated.
Technical specifications
- Video formats: MxPEG/MJPEG/H.264
- Operating temperature: -0 to + 40 °C.
- Product type
CCTV camera
- CCTV features
Saves footage on SD card
ONVIF support
PoE IEEE 802.3af
2-way communication
Speaker
Microphone
Fish eye lens
- Camera type
Dome camera
- Resolution (max.)
3072 x 2048 p
- Sensor size
14.11 mm (1/1.8")
- Sensor type
CMOS
- Max. viewing angle hor.
180°
- Vertical viewing angle
180°
- App compatibility
Yes
- Transfer type
LAN
- Used at
Indoors
- Type
microSD card (up to 4 GB)
- Height
51 mm
- (Ø)
120 mm
- Dim
(Ø x H) 120 mm x 51 mm
- Weight
212 g
- Factory colour
White
IK06
IP20
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1894039 Mobotix Mx-c26B-AU-6D016 LAN IP CCTV camera 3072 x 2048 p
User & Safety Instructions
User & Safety Instructions 1894039 Mobotix Mx-c26B-AU-6D016 LAN IP CCTV camera 3072 x 2048 p
Description

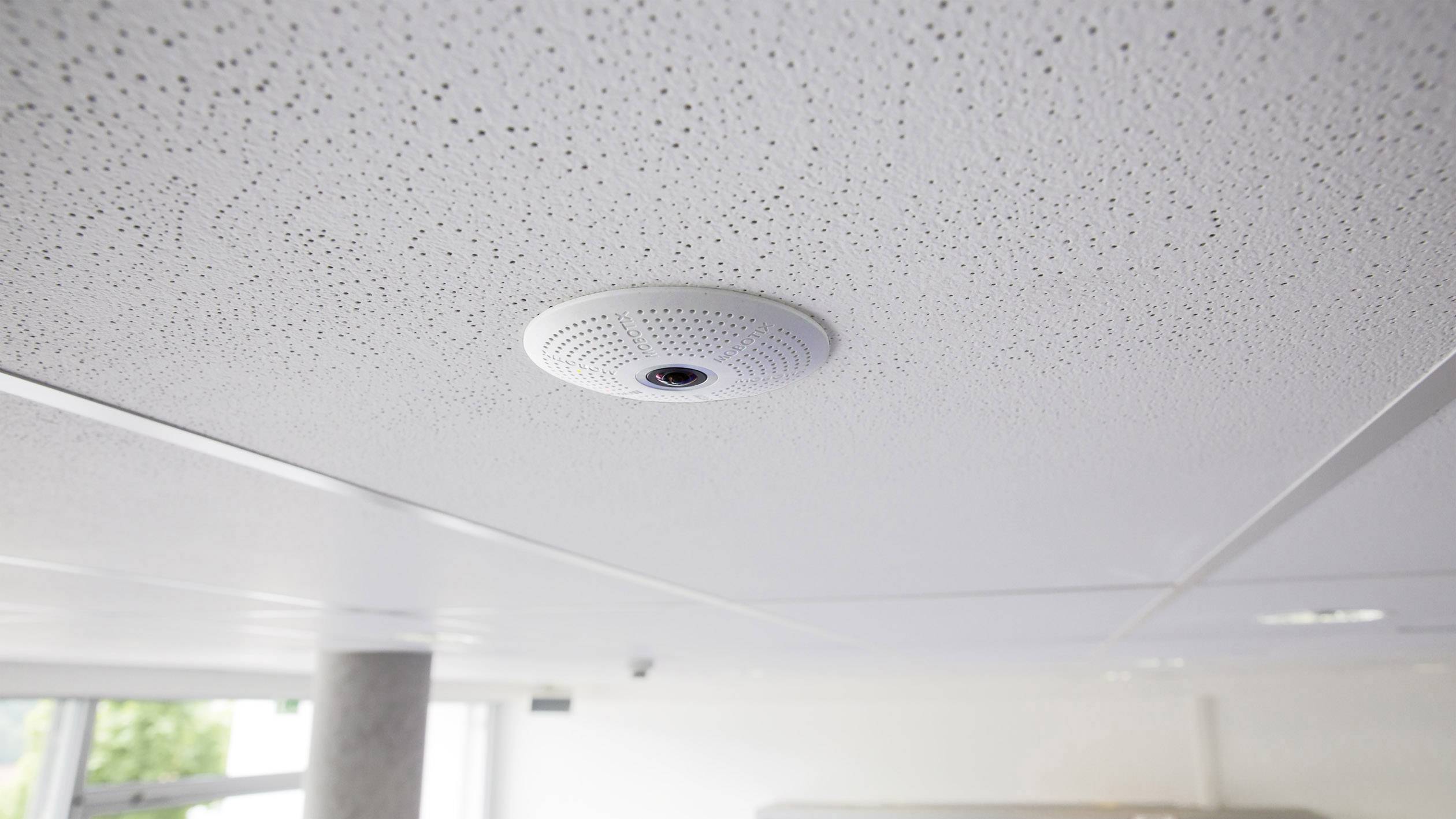

Indoor ceiling-mounted camera. Easy to set up
The c26B is the smallest and lightest hemi-spherical MOBOTIX video complete system for the fast ceiling mounting in the inner area. The equipment includes a bright day or night sensor with 6 MP and MxAnalytics video analysis tools, e.g. for the representation of the customer way in sales rooms. With the available as accessories MxIOBoard IC receives the camera is also an mx bus connection, two inputs and two 12V outputs.
This text is machine translated.
The c26B is the smallest and lightest hemi-spherical MOBOTIX video complete system for the fast ceiling mounting in the inner area. The equipment includes a bright day or night sensor with 6 MP and MxAnalytics video analysis tools, e.g. for the representation of the customer way in sales rooms. With the available as accessories MxIOBoard IC receives the camera is also an mx bus connection, two inputs and two 12V outputs.
This text is machine translated.
Features
- The mx6 system platform 2. Generation, with MxBus
- Recording on internal 4 GB microSD card (standard)
- For the ceiling or corner mounting in aufputz-set optional
- Standard with MxAnalytics video analysis tools (heat maps, number of corridors)
- Multi-streaming
- Digital zoom with panning (vPTZ)
- Vibration and built-in temperature sensor
- As easy to use as a built-in spot to install
- Mobile MOBOTIX App, MxManagementCenter
- Built-in microphone and speaker.
Scope of delivery
- Camera with B016 Lens
- Fixings
- Ethernet patch cable 0.5 m
- Quick guide.
