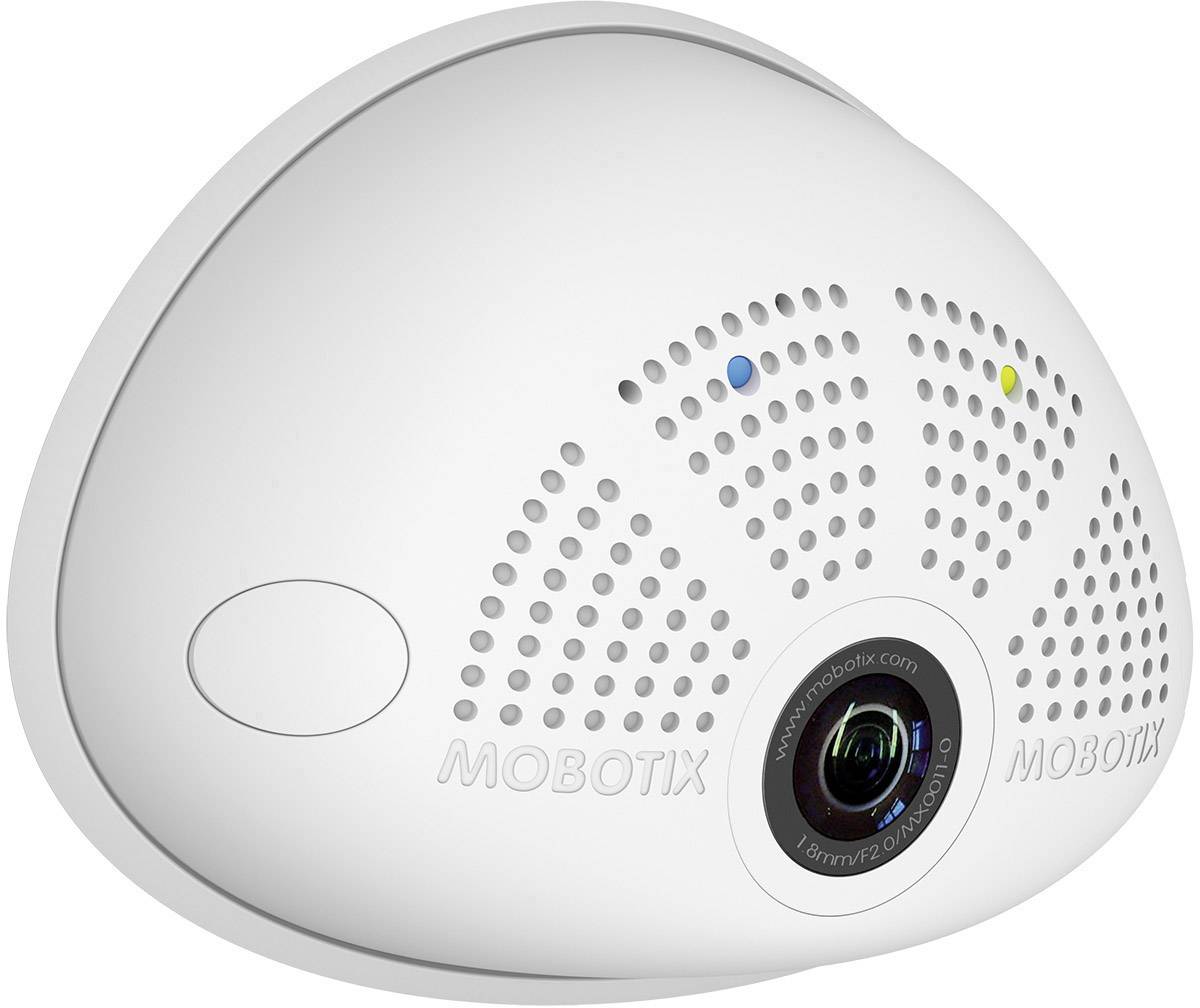

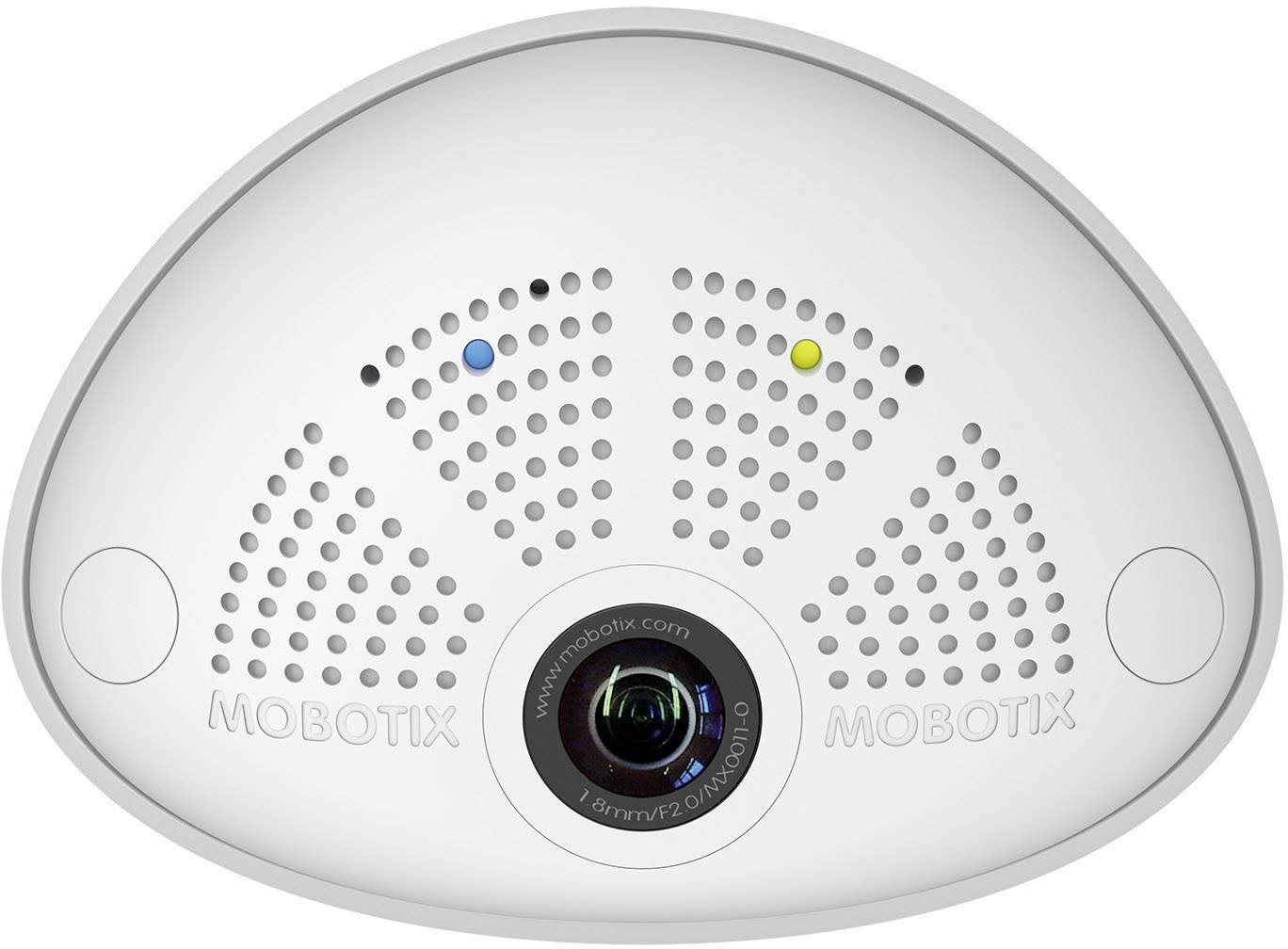

Mobotix Mx-i26B-AU-6D016 LAN IP CCTV camera 3072 x 2048 p
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LAN IP-Compact camera;3072 x 2048 p;Mobotix;Mx-i26B-AU-6D016Indoors
- Resolution 6 MP
- With B016 Lens
- 180° Day, AUDIO
- This text is machine translated.
Technical specifications
- Video formats: MxPEG/MJPEG/H.264
- Operating temperature: -0 to + 40 °C.
- Lens tilt angle: -5° to -45° (manually adjustable)
- Product type
CCTV camera
- CCTV features
Saves footage on SD card
ONVIF support
PoE IEEE 802.3af
Fish eye lens
2-way communication
Speaker
Microphone
- Camera type
Compact camera
- Resolution (max.)
3072 x 2048 p
- Sensor size
14.11 mm (1/1.8")
- Sensor type
CMOS
- Max. viewing angle hor.
180°
- Vertical viewing angle
180°
- App compatibility
Yes
- Transfer type
LAN
- Used at
Indoors
- Type
microSD card (up to 4 GB)
- Width
138 mm
- Height
96 mm
- Depth
50 mm
- Dim
(W x H x D) 138 x 96 x 50 mm
- Weight
201 g
- Factory colour
White
IK06
IP30
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1894045 Mobotix Mx-i26B-AU-6D016 LAN IP CCTV camera 3072 x 2048 p
User & Safety Instructions
User & Safety Instructions 1894045 Mobotix Mx-i26B-AU-6D016 LAN IP CCTV camera 3072 x 2048 p
Description
Perfect for wall mounting. Compact, discreet and low-cost.
The i26B has been specially designed for wall mounting thanks to its tilt angle of 15° and provides a perfect overview. A single i26B with 180°-lens captures a complete room. The compact design provides in all environments for a discreet appearance. With the available as accessories MxIOBoard IC receives the camera is also an mx bus connection, two inputs and two 12V outputs.
This text is machine translated.
The i26B has been specially designed for wall mounting thanks to its tilt angle of 15° and provides a perfect overview. A single i26B with 180°-lens captures a complete room. The compact design provides in all environments for a discreet appearance. With the available as accessories MxIOBoard IC receives the camera is also an mx bus connection, two inputs and two 12V outputs.
This text is machine translated.
Features
- The mx6 system platform 2. Generation, with MxBus
- Recording on internal 4 GB microSD card (standard)
- Optimized for wall mounting, as surface or flush solution
- Standard with MxAnalytics video analysis tools (heat maps, number of corridors)
- Multi-streaming
- Digital zoom with panning (vPTZ)
- Vibration and built-in temperature sensor
- Mobile MOBOTIX App, MxManagementCenter
- Built-in microphone and speaker.
Scope of delivery
- Camera with B016 Lens
- Fixings
- Ethernet patch cable 0.5 m
- Quick guide.
