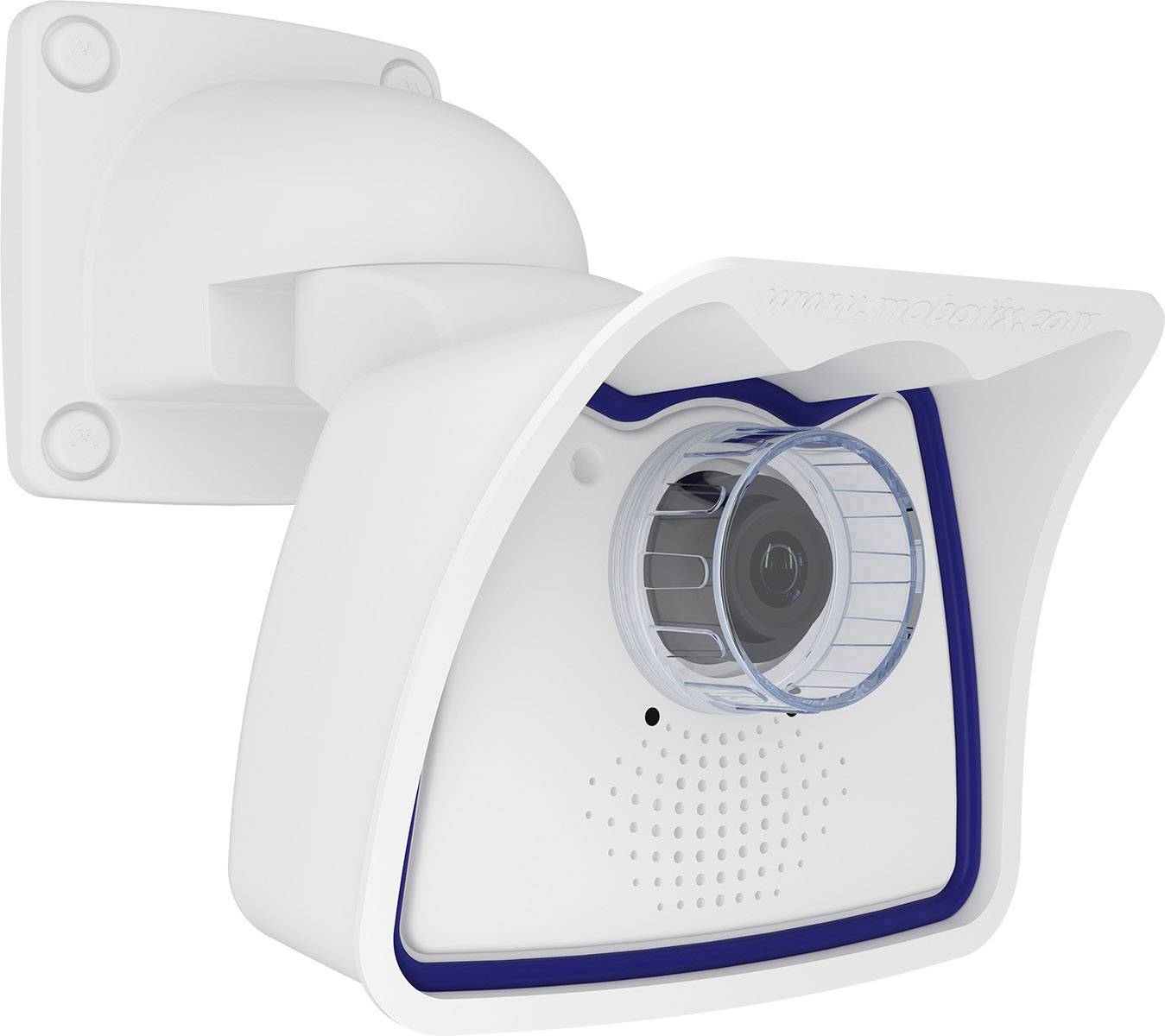

Mobotix Mx-M26B-6D237 LAN IP CCTV camera 3072 x 2048 p
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LAN IP-Compact camera;3072 x 2048 p;Mobotix;Mx-M26B-6D237Outdoors
- Resolution 6 MP
- With B 237 Lens
- 15° Day
- This text is machine translated.
Technical specifications
- Operating temperature: -40 to + 50 °C.
- Video formats: MxPEG/MJPEG/H.264
- Product type
CCTV camera
- Series
MOBOTIX M26
- CCTV features
Saves footage on SD card
ONVIF support
2-way communication
Speaker
Microphone
PoE IEEE 802.3af
- Camera type
Compact camera
- Resolution (max.)
3072 x 2048 p
- Sensor size
14.11 mm (1/1.8")
- Sensor type
CMOS
- Max. viewing angle hor.
15°
- Vertical viewing angle
11°
- App compatibility
Yes
- Transfer type
LAN
- Light sensitivity (+ IR)
0.005 lx
- Used at
Outdoors
- Type
microSD card (up to 4 GB)
- Width
140 mm
- Height
189 mm
- Depth
220 mm
- Dim
(W x H x D) 140 x 189 x 220 mm
- Weight
350 g
- Enclosure material
Plastic (fibreglass reinforced)
- Factory colour
White
IK10
IP66
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1894026 Mobotix Mx-M26B-6D237 LAN IP CCTV camera 3072 x 2048 p
User & Safety Instructions
User & Safety Instructions 1894026 Mobotix Mx-M26B-6D237 LAN IP CCTV camera 3072 x 2048 p
Description
Solid. For each purpose.
Our proven all-round camera system for the ceiling, wall and mast assembly meets the demanding conditions of the protection classes also easily IP66 and IK10. Equipped with the latest 6MP technology is the M26B thanks to extensive lens selection especially can be used flexibly.
This text is machine translated.
Our proven all-round camera system for the ceiling, wall and mast assembly meets the demanding conditions of the protection classes also easily IP66 and IK10. Equipped with the latest 6MP technology is the M26B thanks to extensive lens selection especially can be used flexibly.
This text is machine translated.
Features
- The mx6 system platform 2. Generation, with MxBus
- Recording on internal 4 GB MicroSD card (standard)
- Multi-streaming
- Built-in microphone and speaker
- Large Lens selection with 8° to 180° viewing angle
- Standard with MxAnalytics video analysis tools (heat maps, number of corridors)
- Built-in temperature sensor
- Weather-resistant, glass fiber-reinforced outer casing (IP66, IK10)
- Matching IR emitter (PoE+) available as an option
- Mobile MOBOTIX App, MxManagementCenter.
Scope of delivery
- Camera with B 237 Lens
- Fixings
- Ethernet patch cable 0.5 m
- Vario Flex wall and ceiling mount
- Quick guide.
