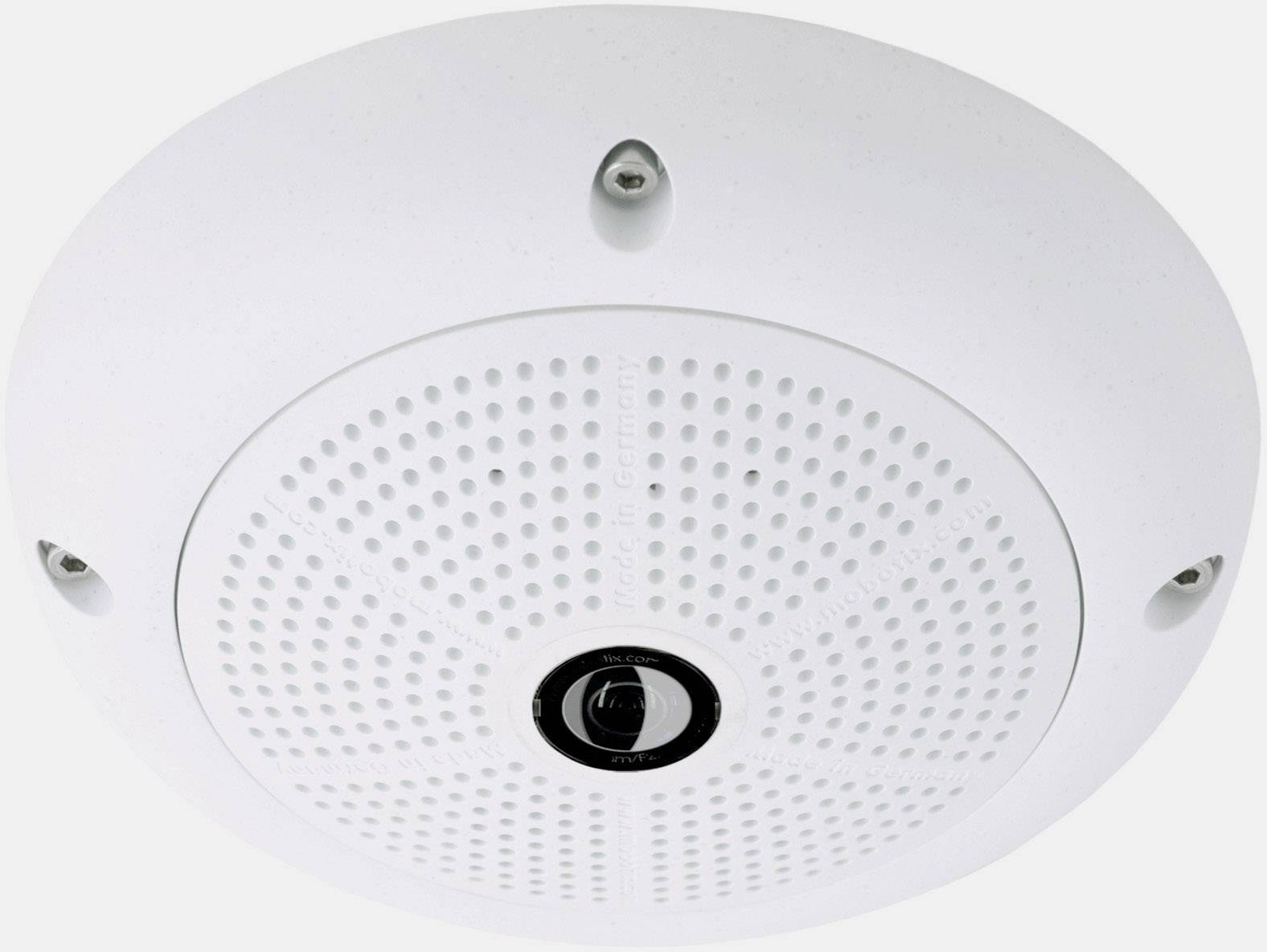

Mobotix Mx-Q26B-6N016 LAN IP CCTV camera 3072 x 2048 p
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LAN IP-Dome camera;3072 x 2048 p;Mobotix;Mx-Q26B-6N016Outdoors
- Resolution 6 MP
- With B016 Lens
- 180°/360° Night
Technical specifications
- Video formats: MxPEG/MJPEG/H.264
- Operating temperature: -40 to + 50 °C.
- Product type
CCTV camera
- CCTV features
Saves footage on SD card
ONVIF support
PoE IEEE 802.3af
Fish eye lens
- Camera type
Dome camera
- Resolution (max.)
3072 x 2048 p
- Sensor size
14.11 mm (1/1.8")
- Sensor type
CMOS
- Max. viewing angle hor.
180°
- Vertical viewing angle
180°
- App compatibility
Yes
- Transfer type
LAN
- Used at
Outdoors
- Type
microSD card (up to 4 GB)
- Height
48 mm
- (Ø)
160 mm
- Dim
(Ø x H) 160 mm x 48 mm
- Weight
350 g
- Factory colour
White
IK06
IP66
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1894034 Mobotix Mx-Q26B-6N016 LAN IP CCTV camera 3072 x 2048 p
User & Safety Instructions
User & Safety Instructions 1894034 Mobotix Mx-Q26B-6N016 LAN IP CCTV camera 3072 x 2048 p
Description
All-round elegant. All-round.
An elegant, ultra-compact and weatherproof dome camera. The Q26B uses a hemi-spherical B016-objective, which factory fixed and focused. Thanks to 360° view to record an entire area, widescreen panorama and intelligent video analysis tools, it offers countless possibilities.
This text is machine translated.
An elegant, ultra-compact and weatherproof dome camera. The Q26B uses a hemi-spherical B016-objective, which factory fixed and focused. Thanks to 360° view to record an entire area, widescreen panorama and intelligent video analysis tools, it offers countless possibilities.
This text is machine translated.
Features
- The mx6 system platform 2. Generation with MxBus
- Recording on internal 4 GB microSD card (standard)
- Standard with temperature and vibration sensor and MxAnalytics (heat maps, number of corridors and behavior detection)
- Multi-streaming
- Digital zoom with panning (vPTZ)
- Weatherproof and shock-proof casing (IP66, IK06)
- Suitable for ceiling, wall or mast mounting
- Optional Vandalism protection made of stainless steel (IK10)
- Mobile MOBOTIX App, MxManagementCenter.
Scope of delivery
- Camera with B016 Lens
- Fixings
- Ethernet patch cable 0.5 m
- Quick guide.
