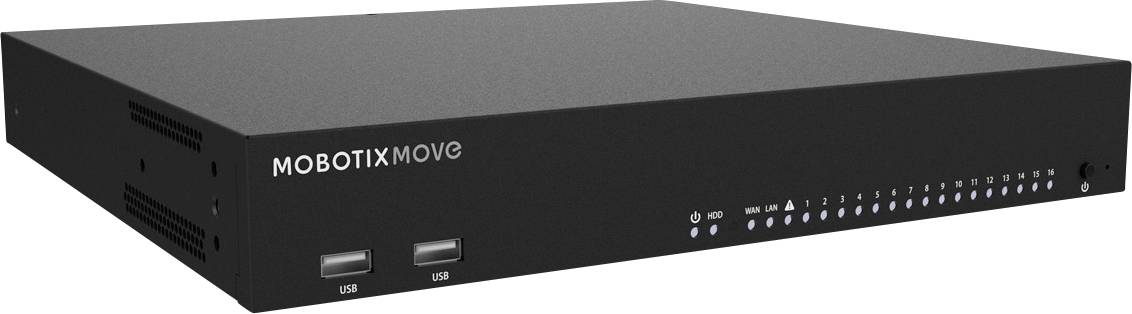

Mobotix Mx-S-NVR1A-16-POE MX-S-NVR1A-16-POE 16-channel Network video recorder
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- USB connections: USB 2.0 x2 (front); USB 3.0 x2 (rear)
- Product type
Network video recorder
- Signal standard
IP
- Channels
16
- Recording mode
Movement detection
Continuous
Preset
- Outputs
HDMI
Audio jack
- Factory colour
Multicolour
- Width
495 mm
- Height
181 mm
- Depth
495 mm
- Weight
8.5 kg
- Dim
(W x H x D) 495 x 181 x 495 mm
- Resolution (max.)
1920 x 1080 p
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2341226 Mobotix Mx-S-NVR1A-16-POE MX-S-NVR1A-16-POE 16-channel Network video recorder
User & Safety Instructions
User & Safety Instructions 2341226 Mobotix Mx-S-NVR1A-16-POE MX-S-NVR1A-16-POE 16-channel Network video recorder
User & Safety Instructions 2341226 Mobotix Mx-S-NVR1A-16-POE MX-S-NVR1A-16-POE 16-channel Network video recorder
Description
Mobotix MOVE NVR network video recorder with 16 integrated PoE IP camera channels (support for up to 24 IP cameras total).ö
This text is machine translated.
This text is machine translated.
Features
- Max. Net storage capacity: 28 TB (2x 3.5" SATA3)Supplied without hard disks (not available via Mobotix)IP data throughput (live & recording): 160 up to 240MbpsRecording compression: H.264 / H.265Supports ONVIF S compliant third party camerasWith 6 bits. Power connection cable with EU plug (cable with US/GB/AU plug available on request)APP remote access (IOS / Android), live, playbackISCSI NAS storage support
