Mobotix Mx-S16B-S3 LAN IP CCTV camera set 3072 x 2048 p
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LAN IP-Box camera;3072 x 2048 p;Mobotix;Mx-S16B-S3Outdoors
- Resolution 6 MP
- With two B016 Lenses
- 180° Day/Night
- This text is machine translated.
Technical specifications
- Operating temperature: -40 to + 60 °C.
- Video formats: MxPEG/MJPEG/H.264
- Max. Image size Optical Sensor Module (dual image with both image sensors): 2 x 6 MP (6144 x 2048)
- Max. Image size: 336 x 252 Thermal Sensor Module, scalable to 3072 x 2048 (6 MP)
- Thermal sensor modules: NETD type. 50 mK,< 79 mK, IR range from 7.5 to 13.5 μm
- Product type
CCTV camera set
- CCTV features
Saves footage on SD card
ONVIF support
Microphone
PoE IEEE 802.3af
- Camera type
Box camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
3072 x 2048 p
- Sensor size
14.11 mm (1/1.8")
- Sensor type
CMOS Sony
- Max. viewing angle hor.
180°
- Vertical viewing angle
180°
- App compatibility
Yes
- Transfer type
LAN
- Light sensitivity (+ IR)
0.001 lx
- Used at
Outdoors
- Type
microSD card (up to 4 GB)
- Width
115 mm
- Height
130 mm
- Depth
33 mm
- Dim
(W x H x D) 115 x 130 x 33 mm
- Weight
430 g
- Factory colour
White
IK07
IP66
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1894022 Mobotix Mx-S16B-S3 LAN IP CCTV camera set 3072 x 2048 p
User & Safety Instructions
User & Safety Instructions 1894022 Mobotix Mx-S16B-S3 LAN IP CCTV camera set 3072 x 2048 p
Description
Flexible. Almost invisible installation Dual Camera.
With the S16B offers MOBOTIX a weather proof system, which is mainly due to its extremely flexible mounting options. Two Sensor Modules are up to three meters long connection cable with the hidden camera mounted housing. can be two neighboring rooms can be with only a single camera discreetly.
This text is machine translated.
With the S16B offers MOBOTIX a weather proof system, which is mainly due to its extremely flexible mounting options. Two Sensor Modules are up to three meters long connection cable with the hidden camera mounted housing. can be two neighboring rooms can be with only a single camera discreetly.
This text is machine translated.
Features
- The mx6 system platform 2. Generation, with MxBus
- Recording on internal 4 GB microSD card (standard)
- Various mounting options and accessories holders for sensor modules
- Max. Length of the sensor module cable 3 m
- Microphone in sensor module can be used
- Additional microphone and loudspeaker connection
- Temperature and vibration sensor integrated
- Weather-proof and robust camera housing (IP66, IK07)
- Mobile MOBOTIX App, MxManagementCenter.

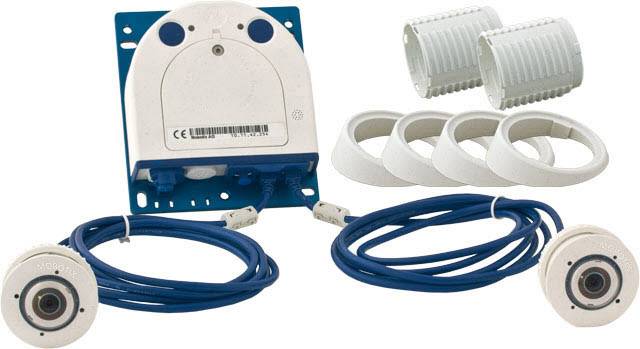

Scope of delivery
- Camera with two B016 Lenses
- Fixings
- Ethernet patch cable 0.5 m
- Quick guide.
